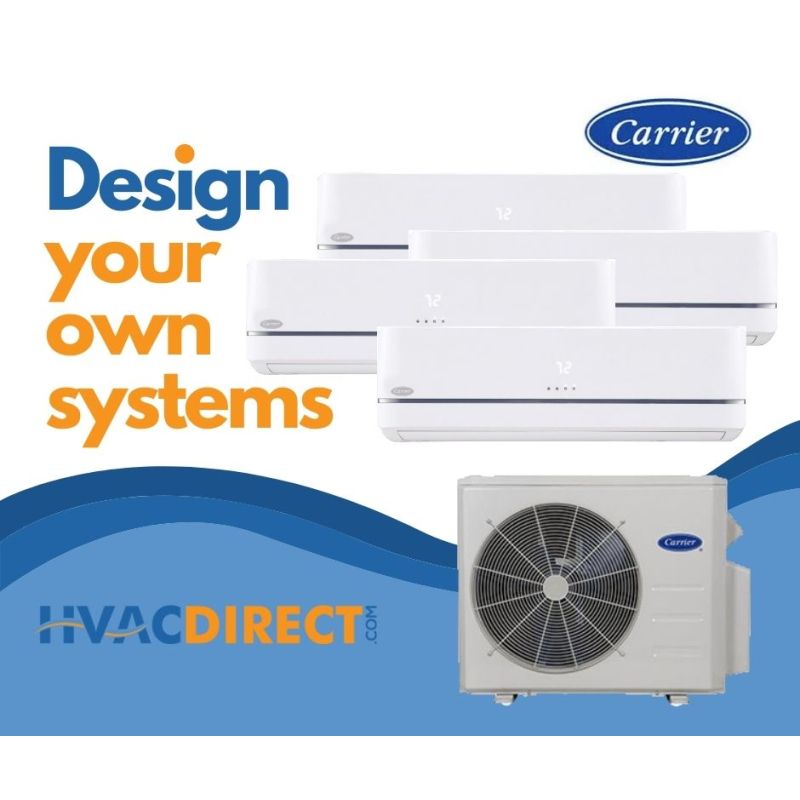

Carrier Design Your Own 4 Zone Heat Pump System

Name: Carrier Design Your Own 4 Zone Heat Pump System
Brand: Carrier
SKU: Carrier Quad Zone
Availability: OutOfStock

Required Fields *

Customer reviews

Rating:

1.6 out of 5

1.6 out of 5 View All 1 Review Add Your Review

Out of stock

Carrier

Out of stock

Model

Carrier Quad Zone

102835

Description

Product Specs

More Information
18,000 BTU Wall Mounted Carrier Mini Split Performance Series Air Handler
Feature	Spec
SKU	40MAHBQ18XA3
Weight (in lbs)	100
Brand/Manufacturer	Carrier
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	18,000 BTU
Heating BTU	18,000 BTU
Maximum CFM	310-680 CFM
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.475 gal/hr
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Amperage Requirement	0.3 Amps
Tonnage	1.5 Ton
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Height	12-2/5"
Width	39"
Depth	8-3/5"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Owner's Manual Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Wall Mounted Carrier Mini Split Performance Series Air Handler
Feature	Spec
SKU	40MAHBQ18XA3
Weight (in lbs)	100
Brand/Manufacturer	Carrier
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	18,000 BTU
Heating BTU	18,000 BTU
Maximum CFM	310-680 CFM
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.475 gal/hr
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Amperage Requirement	0.3 Amps
Tonnage	1.5 Ton
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Height	12-2/5"
Width	39"
Depth	8-3/5"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Owner's Manual Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Wall Mounted Carrier Mini Split Performance Series Air Handler
Feature	Spec
SKU	40MAHBQ18XA3
Weight (in lbs)	100
Brand/Manufacturer	Carrier
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	18,000 BTU
Heating BTU	18,000 BTU
Maximum CFM	310-680 CFM
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.475 gal/hr
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Amperage Requirement	0.3 Amps
Tonnage	1.5 Ton
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Height	12-2/5"
Width	39"
Depth	8-3/5"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Owner's Manual Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Wall Mounted Carrier Mini Split Performance Series Air Handler
Feature	Spec
SKU	40MAHBQ18XA3
Weight (in lbs)	100
Brand/Manufacturer	Carrier
UPC	na
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	18,000 BTU
Heating BTU	18,000 BTU
Maximum CFM	310-680 CFM
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.475 gal/hr
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Amperage Requirement	0.3 Amps
Tonnage	1.5 Ton
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Height	12-2/5"
Width	39"
Depth	8-3/5"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Owner's Manual Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30,000 BTU 23.8 SEER Carrier Mini Split 2-4 Zone Heat Pump Condenser
Feature	Spec
SKU	38MGRQ30D-3
Refrigerant Charge	Pre-charged for: 98'
Weight (in lbs)	156
AHRI Certificate Number	9854626 & 204711112 & 204722797
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	41,470 BTU
Heating BTU	41,950 BTU
Maximum CFM	2130 CFM
Energy Star	Yes
Refrigerant	R410A
HSPF	10
EER	12.5
Liquid Line	1/4" (4)
Suction Line	3/8" (3), 1/2" (1)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	45 Amps
Min. Breaker Size	30 Amps
Amperage Requirement	45 Amps
Tonnage	2.5 Ton
Min/Max Outdoor Temp for Heating	-22°F-86°F
Min/Max Outdoor Temp for Cooling	-13°F-122°F
Zone Compatibility	Multi Zone
Height	31-9/10"
Width	37-1/4"
Depth	15-1/5"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
36,000 BTU 21.5 SEER Carrier Mini Split 2-4 Zone Heat Pump Condenser
Feature	Spec
SKU	38MGRQ36D-3
Refrigerant Charge	Pre-charged for: 123'
Weight (in lbs)	80
AHRI Certificate Number	9118473 & 202345968 & 204722798
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	45,020 BTU
Heating BTU	50,350 BTU
Maximum CFM	4500 CFM
Energy Star	Yes
Refrigerant	R410A
HSPF	10.5
EER	13.5
Liquid Line	1/4" (4)
Suction Line	3/8" (2), 1/2" (2)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	50 Amps
Min. Breaker Size	35 Amps
Amperage Requirement	50 Amps
Tonnage	3 Ton
Min/Max Outdoor Temp for Heating	-22°F-86°F
Min/Max Outdoor Temp for Cooling	-13°F-122°F
Zone Compatibility	Multi Zone
Height	52-1/2"
Width	41-1/5"
Depth	15"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
48,000 BTU 22.4 SEER Carrier Mini Split 2-5 Zone Heat Pump Condenser
Feature	Spec
SKU	38MGRQ48E-3
Refrigerant Charge	Pre-charged for: 123'
Weight (in lbs)	80
AHRI Certificate Number	9118477 & 202345969 & 204722799
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	53,160 BTU
Heating BTU	55,820 BTU
Maximum CFM	4500 CFM
Energy Star	Yes
Refrigerant	R410A
HSPF	10.2
EER	12.5
Liquid Line	1/4" (5)
Suction Line	3/8" (3), 1/2" (2)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	50 Amps
Min. Breaker Size	35 Amps
Amperage Requirement	50 Amps
Tonnage	4 Ton
Min/Max Outdoor Temp for Heating	-22°F-86°F
Min/Max Outdoor Temp for Cooling	-13°F-122°F
Zone Compatibility	Multi Zone
Height	52-1/2"
Width	41-1/5"
Depth	15"
Warranty	10 years with online registration, 5 years without
Resources	Carrier Specifications Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU 18 SEER Carrier Concealed Duct Air Handler
Feature	Spec
SKU	40MBDQ12-3
Weight (in lbs)	39.9
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	12,000
Heating BTU	12,000
Energy Star	Yes
Refrigerant	R410A
HSPF	9
SEER1 (Efficiency)	18-20
EER	12.5
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	1 Ton
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Height	8.27"
Width	27.56"
Depth	25"
Warranty	10 Year Warranty with Online Registration
Resources	Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU 18 SEER Carrier Concealed Duct Air Handler
Feature	Spec
SKU	40MBDQ12-3
Weight (in lbs)	39.9
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	12,000
Heating BTU	12,000
Energy Star	Yes
Refrigerant	R410A
HSPF	9
SEER1 (Efficiency)	18-20
EER	12.5
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	1 Ton
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Height	8.27"
Width	27.56"
Depth	25"
Warranty	10 Year Warranty with Online Registration
Resources	Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU 18 SEER Carrier Concealed Duct Air Handler
Feature	Spec
SKU	40MBDQ12-3
Weight (in lbs)	39.9
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	12,000
Heating BTU	12,000
Energy Star	Yes
Refrigerant	R410A
HSPF	9
SEER1 (Efficiency)	18-20
EER	12.5
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	1 Ton
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Height	8.27"
Width	27.56"
Depth	25"
Warranty	10 Year Warranty with Online Registration
Resources	Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU 18 SEER Carrier Concealed Duct Air Handler
Feature	Spec
SKU	40MBDQ12-3
Weight (in lbs)	39.9
Brand/Manufacturer	Carrier
UPC	na
Cooling BTU	12,000
Heating BTU	12,000
Energy Star	Yes
Refrigerant	R410A
HSPF	9
SEER1 (Efficiency)	18-20
EER	12.5
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	1 Ton
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Height	8.27"
Width	27.56"
Depth	25"
Warranty	10 Year Warranty with Online Registration
Resources	Carrier Product Family Brochure Carrier WiFi Brochure Carrier Warranty You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 1

Top reviews

Installer Air Med

Quality
40%

Service
20%

Price
40%

Before purchasing this unit I was told Carrier has a history of leaking, well I found out it's true! The installer, Air Med serviced the unit one time, it worked for a short time and hasn't worked through out the winter. The installer is in no hurry to return to service my unit! We're very disappointed!!
Review by Pete
Posted on 4/16/25
