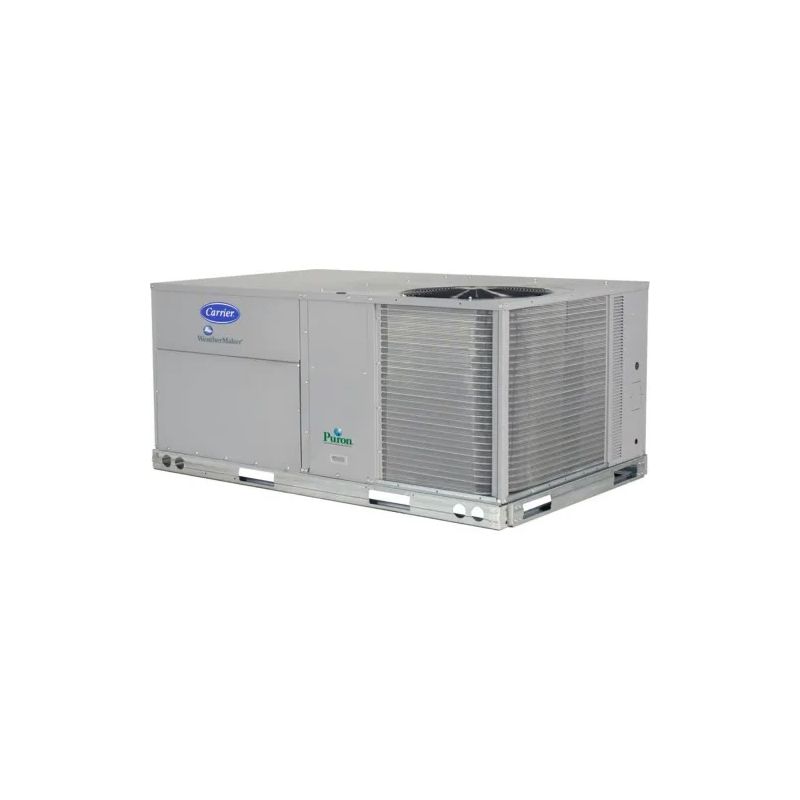

The Carrier WeatherMaker® 50FE-A04A2A5-0A0A0 is a 3-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for commercial buildings and light commercial applications. Combining single-stage cooling with direct-drive EcoBlue™ Fan Technology, this all-in-one rooftop system helps deliver reliable, efficient cooling while simplifying installation and preserving valuable indoor space.
The integrated air conditioning system provides 3-ton nominal cooling capacity to help maintain comfortable indoor temperatures during warm-weather operation. This model uses single-stage cooling and Puron Advance™ R-454B refrigerant. A factory-installed UL 60335-2-40 certified A2L leak detection and dissipation system provides protection for the use of the lower-GWP refrigerant.
The cooling system provides 3-ton nominal cooling capacity with an AHRI-rated SEER2 efficiency of 13.4. This helps provide efficient and dependable cooling performance during warm-weather operation.
With a 13.4 SEER2 rating and direct-drive EcoBlue™ Fan Technology, this system is designed to provide efficient indoor fan operation. The Vane Axial fan design uses an electronically commutated motor and eliminates belts, blower bearings, and shafts found in conventional belt-drive indoor fan systems. Compared with legacy belt-drive systems, Carrier states that the EcoBlue™ design has 75% fewer moving parts and uses up to 40% less energy.
The packaged rooftop configuration combines the compressor, condenser, evaporator coil, indoor fan system, controls, and air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The WeatherMaker® 50FE platform uses the same footprint as previous Carrier rooftop models to support replacement applications without requiring curb adapters or different utility connections. The unit can be field converted from vertical to horizontal airflow configuration and includes a full perimeter base rail with built-in rigging adapters and fork truck slots.
The 50FE provides single-stage cooling operation with a new unit control board designed for intuitive fan-speed adjustment and simplified troubleshooting. The system uses standard 24-volt controls, while optional SystemVu™ integrated communicating controls are available for compatible applications. Optional Economizer configurations can also provide outdoor-air ventilation and economizer operation to support indoor comfort and energy-efficient cooling.
The Carrier WeatherMaker® 50FE-A04A2A5-0A0A0 is designed for commercial rooftop cooling applications where dependable packaged air conditioning and straightforward installation are required. Its compact packaged configuration, replacement-compatible footprint, convertible airflow arrangement, and direct-drive indoor fan system make it well suited for commercial buildings, retail spaces, offices, schools, and other light commercial applications.
The unit is designed to simplify routine service with tool-less filter access, easy-grip access-panel handles, no-strip screws, and an intuitive control board that facilitates safety-circuit troubleshooting and fan-speed adjustment. The direct-drive EcoBlue™ indoor fan system eliminates belts, blower bearings, and shafts, while permanently lubricated direct-drive evaporator-fan and condenser motors help reduce routine maintenance requirements. Pre-painted exterior panels and primer-coated interior panels provide corrosion protection, while the corrosion-resistant composite condensate pan is designed for long-lasting performance.
The Carrier WeatherMaker® 50FE includes a 5-year limited warranty on the compressor and a 1-year limited warranty on all other parts, subject to applicable Carrier warranty terms and conditions. A 3-year limited warranty is available for the SystemVu™ controller when equipped, and additional extended warranty protection plans are available.
Experience reliable and efficient commercial cooling with the Carrier WeatherMaker® 50FE-A04A2A5-0A0A0. Combining single-stage cooling, Puron Advance™ R-454B refrigerant, and direct-drive EcoBlue™ Fan Technology in one packaged rooftop air conditioning system.
