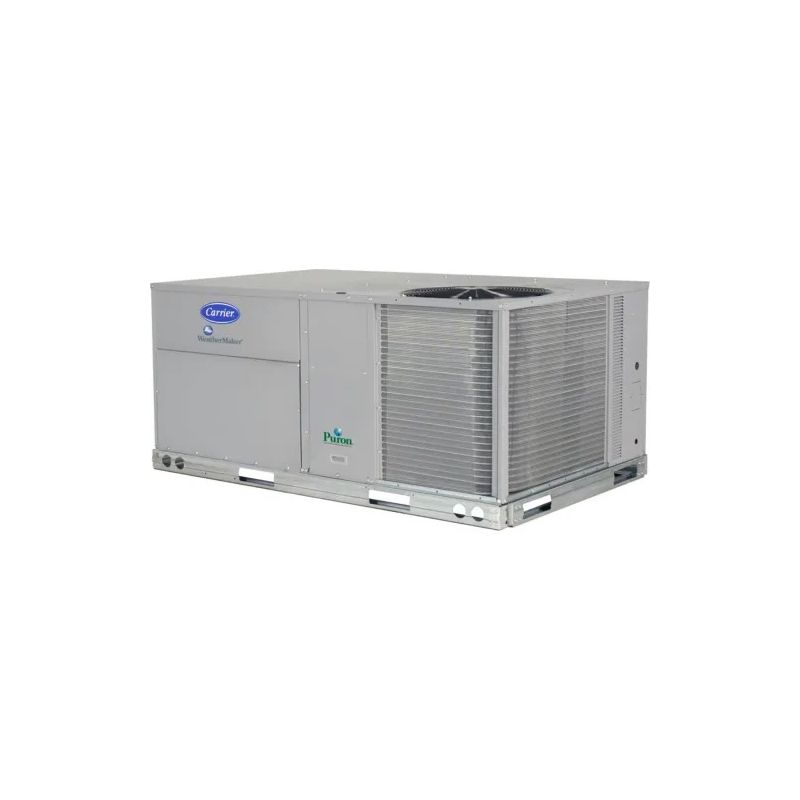

The Carrier WeatherMaker 48FE Series Model 48FEFA05A2A3-0A0A0 is a 4-ton commercial gas packaged rooftop unit designed to provide reliable year-round heating and cooling for light commercial buildings. Combining gas heating with electric cooling, this all-in-one rooftop system helps deliver dependable comfort while simplifying replacement and installation through a legacy-compatible footprint and single-point utility connections.
The integrated gas heating system provides dependable heating performance with multiple gas heat input options available for the 4-ton 48FE platform. The unit incorporates solid-state direct-spark ignition, flame roll-out safety protection, and exclusive IGC anti-cycle protection to support reliable and safe gas-heating operation.
The electric cooling system provides 4-ton nominal cooling capacity with a 13.4 SEER2 rating. The 48FE 04-06 models use single-stage cooling, providing dependable cooling operation for commercial applications while supporting efficient warm-weather performance.
With 13.4 SEER2 efficiency and direct-drive EcoBlue™ Technology, this system is designed to provide efficient commercial cooling with reduced mechanical complexity. The Vane Axial fan design uses an electronically commutated motor and eliminates belts, blower bearings, and shafts associated with conventional belt-drive indoor fan systems. The unit uses Carrier Puron Advance™ R-454B refrigerant, a lower-global-warming-potential refrigerant selected to meet current EPA requirements.
The packaged rooftop configuration combines gas heating, electric cooling, indoor fan, controls, and related components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The 48FE platform uses the same footprint as prior Carrier models for original-fit replacement applications, helping reduce installation time and retrofit costs. The 4-ton unit measures approximately 74 inches long by 47 inches wide by 33 inches high and supports single-point gas, electric, and controls connections. Units up to 15 tons can also be field converted between vertical and horizontal airflow configurations.
The WeatherMaker 48FE incorporates a new unit control board with intuitive fan-speed adjustment and an exclusive IGC solid-state control for onboard diagnostics, LED error-code designation, and burner control logic. Optional SystemVu™ integrated communicating controls and RTU-Open communicating controls are available for compatible applications. The platform also supports multiple static fan capabilities and optional comfort and ventilation accessories.
The Carrier WeatherMaker 48FE Series is designed for light commercial rooftop applications where reliable gas heating and electric cooling are required in a packaged configuration. Its legacy-compatible footprint, single-point utility connections, and packaged rooftop design make it well suited for commercial replacement and retrofit projects where installation time, equipment placement, and service accessibility are important considerations.
The unit features easy-grip access panels, no-strip access-panel screws, a tool-less filter access door, and a simplified control-box arrangement to help streamline routine service. The direct-drive EcoBlue™ indoor fan eliminates belts and associated belt-drive components, while the new control board provides simplified safety-circuit troubleshooting and intuitive fan-speed adjustment. Scroll compressors include internal overload protection, and the unit includes high- and low-pressure switch protection for additional system reliability.
The Carrier WeatherMaker 48FE includes a standard limited warranty consisting of 10 years parts-only coverage for an aluminized heat exchanger, 15 years parts-only coverage for a stainless-steel heat exchanger, 5 years parts-only coverage for the compressor, 3 years for the SystemVu™ controller, and 1 year parts-only coverage on all other parts. Additional extended warranty protection packages are available.
Experience reliable year-round commercial comfort with the Carrier WeatherMaker 48FEFA05A2A3-0A0A0. Combining dependable gas heating and efficient electric cooling in one legacy-compatible rooftop system, it provides a practical solution for commercial replacement and retrofit applications.
