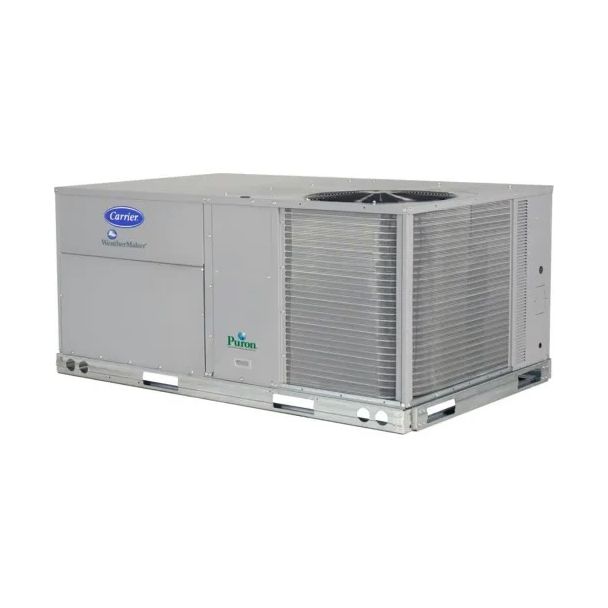

The Carrier WeatherMaker® 50FE-M08A2A6-0A0A0 is a 7.5-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for commercial buildings and light commercial applications. Combining two-stage cooling with direct-drive EcoBlue™ Fan Technology, this all-in-one rooftop system helps deliver efficient, flexible cooling while simplifying installation and preserving valuable indoor space.
The integrated air conditioning system provides 7.5-ton nominal cooling capacity with 86.0 MBH of net cooling capacity to help maintain comfortable indoor temperatures during warm-weather operation. This model uses two-stage cooling with scroll compressors and Puron Advance™ R-454B refrigerant. A factory-installed UL 60335-2-40 certified A2L leak detection and dissipation system is standard to support operation with the lower-global-warming-potential refrigerant.
The cooling system provides 7.5-ton nominal cooling capacity with an EER of 11.4 and an IEER of 15.2 when rated with the two-speed indoor fan motor. This helps provide efficient and dependable cooling performance across varying commercial cooling loads, including part-load conditions.
With an IEER of 15.2 and direct-drive EcoBlue™ Fan Technology, this system is designed to provide efficient indoor fan operation and improved part-load performance. The Vane Axial fan design uses an electronically commutated motor and eliminates belts, blower bearings, and shafts found in conventional belt-drive indoor fan systems. Compared with legacy belt-drive systems, the EcoBlue™ design has 75% fewer moving parts and can use up to 40% less energy.
The packaged rooftop configuration combines the compressors, condenser, evaporator coil, indoor fan system, controls, and air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The WeatherMaker® 50FE 7.5- to 15-ton platform uses the same footprint as previous Carrier rooftop models to support replacement applications. The unit can be field converted between vertical and horizontal airflow configurations and includes provisions for thru-the-bottom power entry, single-point electrical and controls connections, and a full perimeter base rail with built-in rigging adapters and fork truck slots.
The 50FE provides two-stage cooling operation with a new unit control board featuring intuitive fan-speed adjustment and simplified safety-circuit troubleshooting. The 24-volt control circuit is protected with a resettable circuit breaker. Optional SystemVu™ Integrated Communicating Controls are available for compatible applications, while optional Economizer configurations can provide outdoor-air ventilation and economizer operation to support indoor comfort and energy-efficient cooling.
The Carrier WeatherMaker® 50FE-M08A2A6-0A0A0 is designed for commercial rooftop cooling applications where dependable packaged air conditioning, efficient part-load operation, and installation flexibility are required. Its two-stage cooling, replacement-friendly footprint, convertible airflow configuration, direct-drive indoor fan system, and 460-volt three-phase electrical configuration make it well suited for commercial buildings and light commercial applications.
The unit is designed to simplify routine service with tool-less filter access, easy-grip access-panel handles, no-strip screws, and an intuitive control board that facilitates safety-circuit troubleshooting and fan-speed adjustment. The direct-drive EcoBlue™ indoor fan system eliminates belts, blower bearings, and shafts, while the permanently lubricated direct-drive ECM evaporator-fan motor and permanently lubricated condenser motors help reduce routine maintenance requirements. Pre-painted exterior panels and primer-coated interior panels provide corrosion protection, while the corrosion-resistant composite condensate pan supports long-term durability.
The Carrier WeatherMaker® 50FE includes a 5-year limited warranty on electric heaters, a 5-year parts-only limited warranty on the compressor, a 3-year limited warranty on the SystemVu™ controller when equipped, and a 1-year parts-only limited warranty on all other parts. Additional extended warranty protection packages are available.
Experience reliable and efficient commercial cooling with the Carrier WeatherMaker® 50FE-M08A2A6-0A0A0. Combining two-stage cooling, Puron Advance™ R-454B refrigerant, and direct-drive EcoBlue™ Fan Technology in one packaged rooftop air conditioning system.
