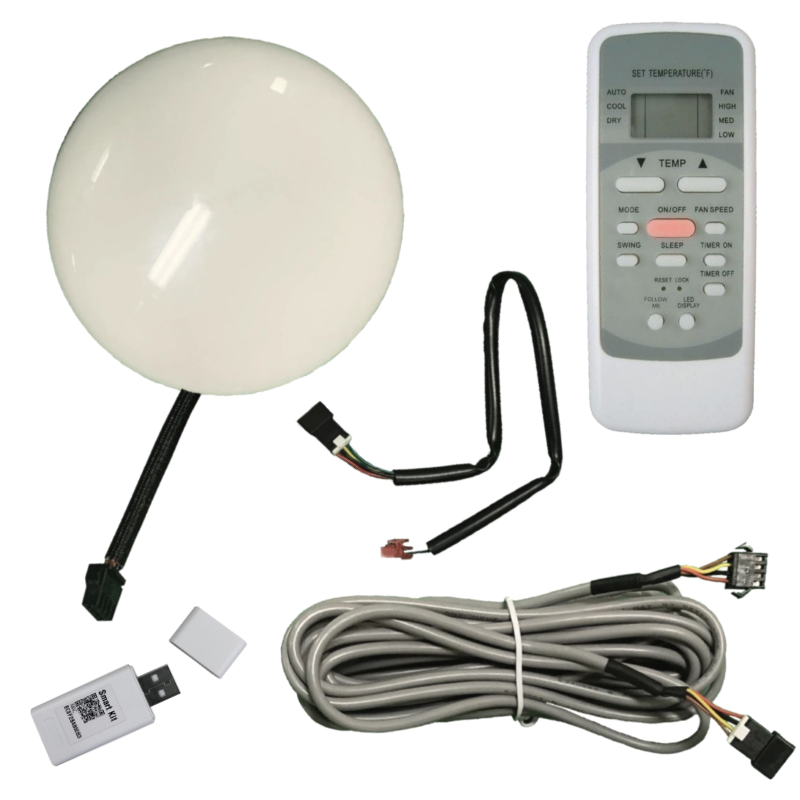

The KSAIF0401AAA is a plug-in wi-fi adapter for Performance Series console, ducted, and cassette units. Whether you are across the world or across the living room, you will be able to control your ductless air conditioner or heat pump from your phone using the CliMate app and your home wi-fi network.
You can control your unit's mode and the auto, cooling, dry, heat, and fan modes are easily identifiable by the app's interface background color. You can increase energy efficiency by utilizing the 7 day programmable schedule and sleep mode planning features. Using the group control, you can control multiple single zone systems together, a subset of indoor units connected to a multi zone condenser, and even select one indoor unit as the master unit for mode control.
When using the KSAIF0401AAA, you can still use your wired control as a back up option and it is not necessary to remove it when upgrading your indoor unit to your wireless network. On new installations, the KSAIF0401AAA fulfils the requirement for a hardwired controller, so it is optional to install one of the KSACN controllers.
The CliMate app can connect to both Google Assistant and Amazon Alexa for voice control when used with your smartphone, Google Home Speaker or Amazon Echo.
To view the CliMate application, follow the links below.
Compatible Indoor Units:
Ceiling Cassette:
- Performance 2x2 Cassette: 40MBCQ09-3, 40MBCQ12-3, 40MBCQ18-3
- Performance 3x3 Cassette: 40MBCQ24-3, 40MBCQ36-3, 40MBCQ48-3
Concealed Ducted
- Performance Ducted: 40MBDQ09-3, 40MBDQ12-3, 40MBDQ18-3, 40MBDQ24-3, 40MBDQ36-3, 40MBDQ48-3, 40MBDQ58-3
Floor Console
- Performance Floor Console: 40MBFQ18-3, 40MBFQ24-3, 40MBFQ36-3, 40MBFQ48-3, 40MBFQ58-3
To view a similar item for 9,000, 12,000, and 24,000 BTU Comfort Series units, please see the KSAIF0101AAA. For 18,000 BTU Comfort series wall mounted units, please view the KSAIF0201AAA. For Performance Series wall mounted units, please see KSAIF0301AAA.
Please note that when using the KSAIF0401AAA, a 24v interface will disable the wi-fi adapter. If you are considering both a wired controller and wi-fi, we recommend using the KSAIC0301230 24v interface with a wi-fi enabled thermostat.
