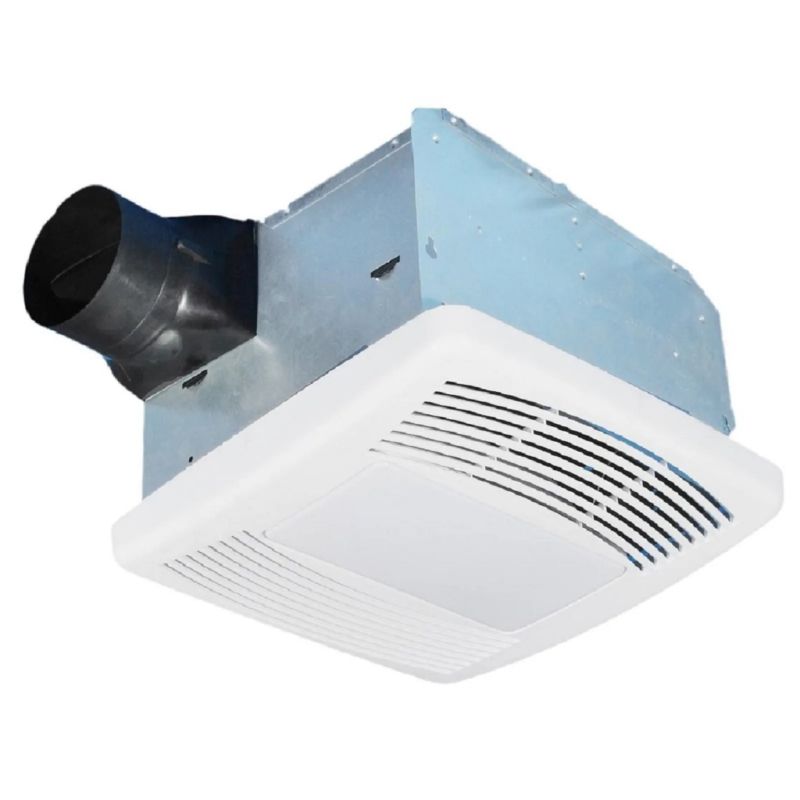

Compact 100CFM AC Ceiling Exhauster - SNP100

Very quiet fan for ceiling or wall mounted Hold and ETL evaluation and confirm to UL and cUL safety standards. HVI and ENERGY STAR certified.

It comes with a capacitor start motor which is known for its high efficiency and long lasting reliability. It holds an ETL evaluation and conforms to UL and cUL safety standards.

Housing

• Made of rugged 26 GA galvanized steel
• Detachable 4 inch polymeric collar which includes a light weight built in back draft damper.
• Housing size: 8-1/2"x9"x5 3/4"

Motor/Blower

• Plug in permanently lubricated motor- Engineered for continuous operation.
• Power rating should be 120 volts and 60 Hz
• Motor comes with a built in overload disconnect for safety and longer motor life.

Grille

• The grille is low profile that has elegance and still able to maintain its simplicity.
• Grille dimension:11-13/16"x11-7/16".

Typical specification

• Ceiling ventilator shall have corrosion resistance galvanized steel.
• It shall be ducted to a roof vent or wall cap using 4 inch round pipe.
• Blower assembly shall be removable, have a centrifugal type blower wheel and a permanently lubricated motor designed for continuous operation.
• Includes an attachable non metallic collar with build in back draft damper.
• Air and sound delivery shall meet the ENERGY STAR, HVI certified ratings as per the fan curves attached.
