Daikin 10 Ton 11.4 EER / 16.4 IEER Commercial Air Conditioning Condenser | 460V 3 Phase - R32 - Two Stage

Energy-Efficient 10-Ton Commercial Split Air Conditioner for Light Commercial Buildings with Two-Stage Cooling

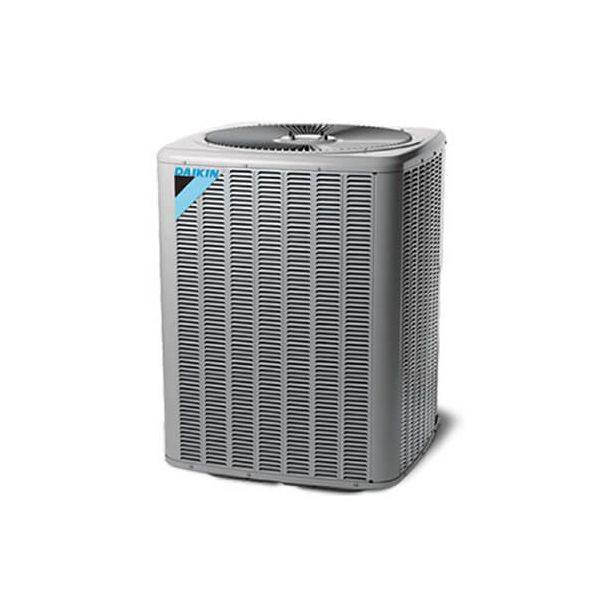

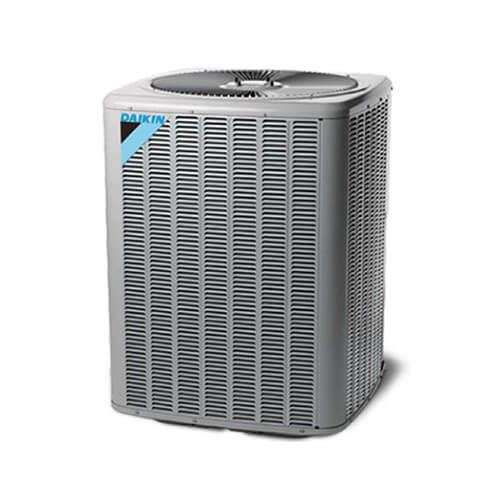

The Daikin DC6TE12040 is a 10-ton commercial split air conditioner system designed to provide reliable, energy-efficient cooling for light commercial buildings and other commercial applications. Combining the 118,000 Btu/h DC6TE12040 outdoor condensing unit with a compatible 10-ton indoor air handler, this split system helps deliver dependable commercial cooling while providing two-stage compressor operation, flexible equipment placement, and durable outdoor construction.

Key Benefits

• 16.4 IEER Efficiency – Helps provide energy-efficient commercial cooling across varying operating conditions.
• Two-Stage Tandem Compressor – Provides staged cooling operation to better match changing cooling demands.
• High-Efficiency Coil – Copper tube and aluminum fin construction supports efficient heat transfer for reliable cooling performance.
• Flexible Split-System Installation – Separates the outdoor condensing unit from the indoor air handler for flexible equipment placement.
• Durable Outdoor Cabinet – Heavy-gauge galvanized-steel construction with a nickel gray powder-paint finish provides durable protection for outdoor installation.
• R-32 Refrigerant – Uses R-32 refrigerant in a commercial air conditioning system designed for efficient operation.
• Commercial-Grade Construction – AHRI Certified and ETL Listed for commercial HVAC applications.
• Service-Friendly Design – Brass service valves, high- and low-pressure switches, and a factory-installed filter drier support installation and servicing.

118,000 Btu/h Cooling Capacity – Primary Cooling Benefit

The DC6TE12040 provides 118,000 Btu/h of rated cooling capacity in a 10-ton commercial air conditioning configuration. The system is rated at 11.4 EER and 16.4 IEER and is designed for cooling operation from 55°F to 125°F outdoor ambient temperature. The unit uses R-32 refrigerant and a two-stage tandem compressor design to provide dependable commercial cooling across varying load conditions.

Two-Stage Tandem Compressor – Cooling Performance

The DC6TE12040 outdoor condensing unit provides 118,000 Btu/h of rated cooling capacity with an 11.4 EER and 16.4 IEER rating. Its two-stage tandem compressor design provides staged cooling operation, while the high-efficiency copper tube and aluminum fin coil supports effective heat transfer during warm-weather operation.

Energy-Efficient Commercial Operation

With a 16.4 IEER rating and two-stage compressor operation, the DC6TE12040 is designed to provide efficient commercial cooling under varying load conditions. The unit features a two-stage energy-efficient compressor with an internal relief valve, a high-efficiency copper tube and aluminum fin coil, and a high-capacity steel-cased filter drier.

Split System Installation Design

The split system configuration separates the DC6TE12040 outdoor condensing unit from the compatible indoor air handler, providing flexibility for equipment placement and installation. The outdoor unit uses 5/8-inch liquid and 1-1/8-inch suction service connections, includes a 15-foot pre-charge piping length, and supports a maximum total piping length of 150 feet and a maximum vertical piping length of 25 feet. The unit is designed for 460V, 60 Hz, three-phase electrical service.

Controls & Comfort

The DC6TE12040 uses two-stage compressor operation to provide staged cooling based on system demand. The compatible indoor air handler provides the airflow and indoor-side components required for the matched commercial split-system application. Control and thermostat selection should be based on the specific indoor air handler and installed system configuration.

Commercial Applications

The Daikin DC6TE12040 is designed for 10-ton commercial split-system air conditioning applications requiring 460V, 60 Hz, three-phase electrical service. The system is suited to light commercial buildings and commercial spaces where dependable cooling, efficient operation, and flexible split-system installation are required. The outdoor unit is designed for ground-level or rooftop mounting, while bottom pan rails elevate the unit above the slab to provide water drainage and help keep the coil away from debris.

Service & Maintenance

The DC6TE12040 includes brass liquid and suction service valves, high- and low-pressure switches, and a factory-installed filter drier. The outdoor cabinet uses heavy-gauge galvanized steel with a nickel gray powder-paint finish, while the steel louvered coil guard helps protect the coil from damage and adds strength to the unit. The louvered sound-control top design and quiet operating top discharge are designed to support quieter outdoor operation.

Warranty

The Daikin DC6TE12040 includes a 5-Year Parts Limited Warranty. To receive the 5-Year Parts Limited Warranty, online registration must be completed within 60 days of installation, subject to applicable state and provincial requirements. Complete warranty terms, limitations, exclusions, and registration requirements apply.

Recommended Accessories

• Compatible 10-Ton Commercial Air Handler – Select the appropriate Daikin indoor air handler for the 10-ton split-system application
• Commercial Thermostat or Control – Select a compatible control based on the system application and installation requirements
• Equipment Pad or Rooftop Mounting Support – Appropriate support for the outdoor condensing unit installation location
• Refrigerant Line Set – Sized and installed according to Daikin installation requirements and applicable piping limitations
• Electrical Disconnect – Select according to applicable electrical requirements and the installed equipment configuration

Reliable Commercial Cooling with the Daikin DC6TE12040

Experience efficient, dependable commercial cooling with the Daikin DC6TE12040. Combining a 118,000 Btu/h outdoor condensing unit, two-stage tandem compressor, R-32 refrigerant, and high-efficiency coil construction with a compatible 10-ton indoor air handler in one commercial split air conditioner system.
