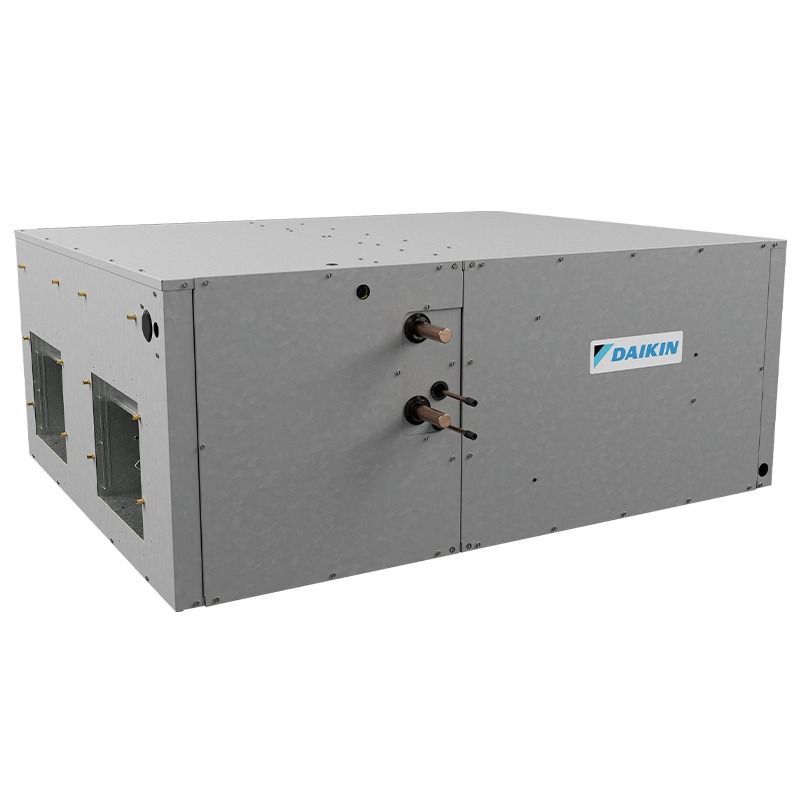

Daikin 10 Ton Multi-Position Commercial Air Handler | 208/230V 3 Phase - R32

Reliable 10-Ton Commercial Air Handling for Light Commercial Applications with Flexible Multi-Position Installation

The Daikin DAQ12033 is a 10-ton commercial electric air handler designed to provide high-volume conditioned airflow for light commercial applications. Designed to work with a compatible 10-ton cooling-only or heat pump outdoor unit, this indoor air handling system supports reliable year-round comfort while providing flexible upflow or horizontal installation configurations.

Key Benefits

• 10-Ton Air Handling Capacity – Provides 10 tons of nominal cooling capacity for compatible commercial split-system applications.
• Five-Speed Direct-Drive Motors – Two direct-drive motors with five speed selections provide adjustable airflow for different system requirements.
• Cooling and Heat Pump Compatibility – Designed for use with compatible 10-ton cooling-only or heat pump split systems.
• Copper Tube and Aluminum Fin Coils – Provides durable heat-transfer construction for commercial split-system operation.
• R-32 Refrigerant System – Uses R-32 refrigerant and includes a factory-designed R-32 leak mitigation system.
• Flexible Installation Configuration – Supports upflow and horizontal airflow configurations for greater installation flexibility.
• Galvanized-Steel Cabinet – Heavy-gauge reinforced construction with fiberglass insulation provides a durable indoor air-handling enclosure.
• Dual Thermal Expansion Valves – Two TXVs provide refrigerant metering control for the indoor coil.
• Service-Friendly Design – Removable access panels and top-panel electrical entry help simplify installation and maintenance.

High-Volume Air Handling Performance

The DAQ12033 features two 11-inch by 10-inch direct-drive blower wheels and provides a nominal airflow of 4,000 CFM. Five blower speed selections allow airflow to be adjusted according to system requirements and installation conditions. Published blower performance varies with speed tap, external static pressure, and installation configuration, with airflow available across a range of operating conditions.

Heating & Cooling Performance

The DAQ12033 is designed for use with a compatible 10-ton cooling-only or heat pump outdoor system. The unit supports 10 tons of nominal cooling capacity and optional electric heat configurations of 15 kW, 20 kW, or 30 kW. The indoor coil uses two thermal expansion valves and is designed for R-32 refrigerant.

Efficient Airflow Design

The DAQ12033 uses two 5-speed direct-drive motors to provide adjustable airflow operation. The blower system is designed to accommodate varying external static pressure conditions, allowing installers to select an appropriate speed tap for the connected duct system. The fully insulated cabinet helps provide an insulated enclosure around the air-handling components.

Durable Air Handler & Installation Design

The split air handler configuration is designed for indoor installation and connection to a compatible outdoor condensing unit or heat pump condenser. The DAQ12033 features a heavy-gauge, reinforced galvanized-steel cabinet with fiberglass blanket insulation, horizontal and vertical condensate pans, and a built-in filter rack with 2-inch filters. Top-panel entry accommodates both low- and high-voltage connections, while removable access panels provide convenient access for service.

Controls & Comfort

The DAQ12033 includes standard transformer and blower relay controls along with two 5-speed direct-drive blower motors. Two thermal expansion valves provide refrigerant metering for the indoor coil. When matched with a compatible cooling-only or heat pump outdoor unit and appropriate system controls, the air handler provides adjustable conditioned airflow for commercial comfort applications.

Commercial Applications

The Daikin DAQ12033 is designed for light commercial split-system applications requiring a 10-ton indoor air handler. Its high-volume airflow capability, flexible installation configurations, durable cabinet construction, and compatibility with cooling-only or heat pump systems make it suitable for a range of commercial building applications.

Service & Maintenance

The DAQ12033 features removable access panels designed to provide convenient access to internal components during service. The built-in filter rack accommodates two 16-inch x 20-inch x 2-inch filters or two 20-inch x 20-inch x 2-inch filters, depending on the installation configuration. Top-panel electrical entry also provides convenient access for low- and high-voltage connections.

Warranty

The Daikin DAQ12033 includes a 5-Year Parts Limited Warranty. Online registration within 60 days of installation is required to receive the 5-Year Parts Limited Warranty where permitted by applicable law. Other limitations and exclusions apply; refer to the complete Daikin warranty documentation for applicable terms and conditions.

Recommended Accessories

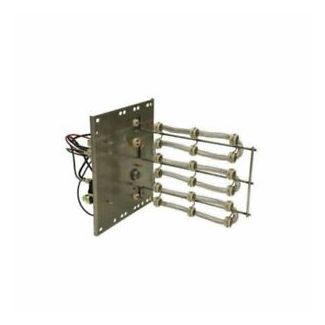

• Electric Heat Kit – Optional 15 kW, 20 kW, and 30 kW electric heat kits are available for supplemental heating applications.
• 2-Inch Replacement Air Filters – Replacement filters are available in the applicable 16-inch x 20-inch x 2-inch or 20-inch x 20-inch x 2-inch sizes.

Reliable Commercial Airflow with the Daikin DAQ12033

Experience dependable 10-ton commercial air handling with the Daikin DAQ12033. Combining two 5-speed direct-drive blower motors, dual thermal expansion valves, R-32 refrigerant compatibility, durable galvanized-steel construction, and flexible upflow or horizontal installation in one light commercial split air handler system.
