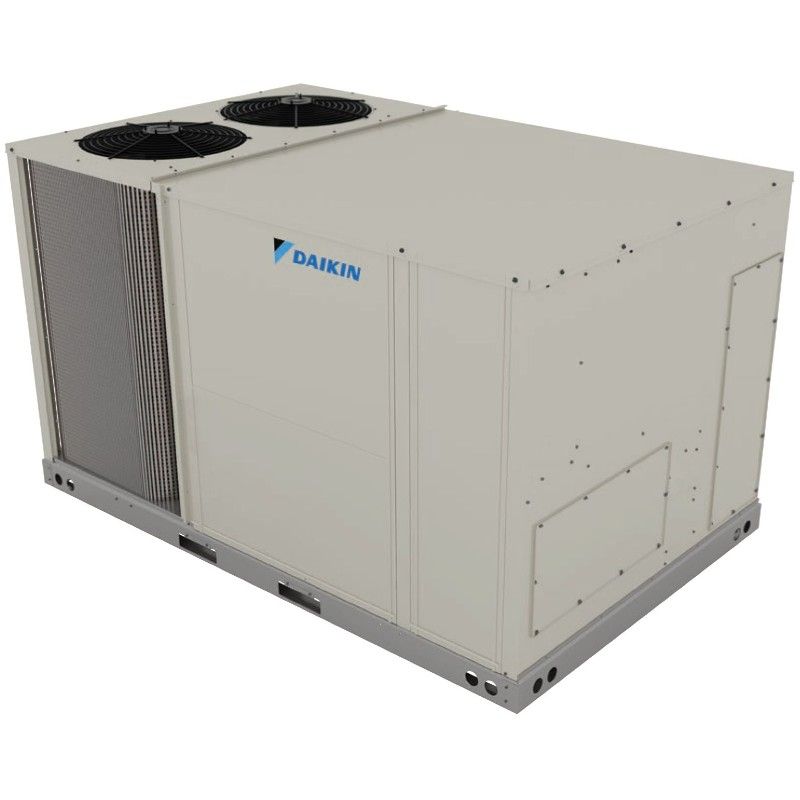

Daikin 12.5 Ton 240,000 BTU 11 EER Commercial Gas Packaged Unit - Direct Driven | 460V 3 Phase - R410A - Single Stage

Daikin 12.5 Ton 240,000 BTU 11 EER Commercial Gas Packaged Unit - Direct Driven | 460V 3 Phase - R410A - Single Stage

Name: Daikin 12.5 Ton 240,000 BTU 11 EER Commercial Gas Packaged Unit - Direct Driven | 460V 3 Phase - R410A - Single Stage
Brand: Daikin
SKU: DFG1504DH00001S-1
Price: 14723 USD
Availability: InStock

Be the first to review this product

Ships in 5-7 Business Days

Free Shipping

Daikin

In stock

Model

DFG1504DH00001S-1

155935

$14,723.00

Save up to 70% off Local HVAC Prices

Description

The DFG1504DH00001S 12.5 Ton G/E 460V 240k btu/h light commercial gas/electric packaged unit offers energy-efficient heating and cooling performance in one self-contained unit. This 11 EER unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time.

Standard Features

High-efficiency scroll compressor
Copper tube/aluminum fin coils
High and low pressure switches
High-capacity, steel-cased filter drier
24 volt terminal strip
Convertible airflow orientation
Built in filter rack with standard 2" filters

Product Specs

More Information
Daikin 12.5 Ton 240,000 BTU 11 EER Commercial Gas Packaged Unit - Direct Driven \| 460V 3 Phase - R410A - Single Stage
Feature	Spec
SKU	DFG1504DH00001S-1
Refrigerant Charge	Pre-charged
Weight (in lbs)	1310
Brand/Manufacturer	Daikin
UPC	663051676565
Additional Information	Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters
Cooling BTU	140,000 BTU
Heating BTU	240,000 BTU
Drive Type	Direct
Maximum CFM	4200
Decibel Level (dBA)	86.8 decibels
Motor RPM	300-1600
Horsepower	.5 HP
Refrigerant	R410A
EER	11
IEER	14.2
Condenser Stages	Single Stage
Compressor Type	Scroll
Electrical	460 V. 3 Phase 60 Hz
Phase	Three Phase
Max Breaker Size	40 amps
Min. Breaker Size	31.9 amps
Tonnage	12.5 Ton
Burner Stages	Modulating
Height	54 5/8"
Width	93 3/4"
Depth	60 3/8"
Warranty	20 Years Heat Exchanger, 5 Years Parts with Online Registration
Resources	Daikin DFG Installation Manual Daikin DFG Specification Sheet Daikin Light Commercial Line Card Daikin Light Commercial Brochure Daikin Light Commercial Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. PROPOSITION 65 WARNING This product and many products on our site may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
