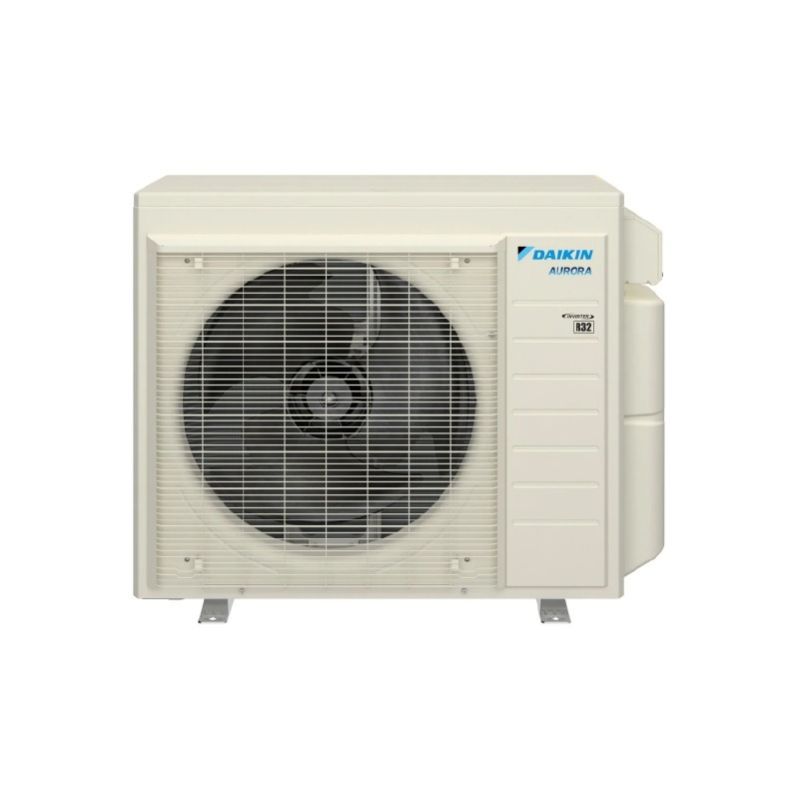

Daikin 24,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

SAVE $436.80
Ships in 5-7 Business Days
Free Shipping
By

Daikin

In stock
Model

3MXT24AVJU9

ID

241648

Was $4,090.80 Your Low Price Special Price $3,654.00

Product Features
  • Designed for high-efficiency mini split systems
  • Heating & Cooling Capabilities
  • Perfect for up to 1000 sq ft Room/Zone (when paired correctly)
  • Quiet Operation at 57 dBA
  • 12 Year Limited Warranty with Online Registration

Daikin 3MXT24AVJU9 24,000 BTU 3-Zone Mini Split Condenser – R32 | 230V

This MXT multi-zone condenser is designed to provide efficient heating and cooling for up to three independently controlled indoor units. Featuring inverter-driven technology and R32 refrigerant, it delivers reliable performance, quiet operation, and energy-efficient comfort for residential and light commercial applications.

Key Features

  • 24,000 BTU (2 Ton) capacity for multi-zone applications
  • Supports up to 3 indoor units (requires at least two zones)
  • Compatible with wall-mount, ceiling cassette, and concealed duct indoor units
  • Inverter-driven compressor for improved efficiency and precise temperature control
  • R32 refrigerant for reduced environmental impact and enhanced performance
  • Individual zone control for customized comfort in each space
  • Quiet operation designed to minimize outdoor noise
  • Flexible installation with support for various piping configurations

Warranty

12-year limited parts warranty

More Information
Daikin 24,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
FeatureSpec
SKU3MXT24AVJU9
Refrigerant Charge4.90 lbs (Pre-charged for 98 ft line set)
Weight (in lbs)213
Brand/ManufacturerDaikin
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Decibel Level (dBA)57 dBA
Energy StarYes
RefrigerantR32
HSPF29.5
SEER2 (Efficiency)19
EER212.5
Compressor TypeSwing
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230V | 1 Phase | 60 Hz
Max Breaker Size35 Amps
Min. Breaker Size33.6 Amps
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-13° - 25° F
Min/Max Outdoor Temp for Cooling14° - 115° F
Zone CompatibilityMulti Zone
Height29.5
Width18.18
Depth43.56
Warranty12-Year parts and compressor limited warranty with online registration. Restrictions apply
