Daikin 3 Ton 13.4 SEER2 Air Conditioner and Multi-Positional Air Handler System | 460V 3 Phase - R32 - Single Stage

Efficient 3-Ton Commercial Split Air Conditioner for Light Commercial Applications with R-32 Refrigerant

The Daikin DC3SEA3640 / AMST42CU1300 is a split air conditioner system pairing a nominal 3-ton outdoor condensing unit with a multi-position, multi-speed indoor air handler for compatible ducted cooling applications. The DC3SEA3640 outdoor unit features a high-efficiency single-stage scroll compressor, R-32 refrigerant, and published efficiency ratings of 13.4 SEER2 and 11.2 EER2 in its manufacturer's rated combination. The AMST42CU1300 air handler features a direct-drive, 9-speed ECM blower motor, an all-aluminum evaporator coil, and flexible installation configurations. Because the outdoor unit is nominally 3 tons and the indoor air handler is classified in the 3.5-ton capacity range, confirm the approved equipment pairing and rated system performance before specifying this combination.

Key Benefits

• 13.4 SEER2 Rated Outdoor Unit – Provides a published seasonal efficiency rating to help evaluate energy performance for compatible commercial cooling applications.
• Nominal 3-Ton Cooling Capacity – The DC3SEA3640 outdoor unit is rated at 36,000 BTU/h nominal cooling capacity, with a published rated combination capacity of 34,200 BTU/h.
• 9-Speed ECM Blower Motor – The AMST42CU1300 air handler provides multiple blower settings for airflow adjustment according to ductwork and system requirements.
• Multi-Position Installation – Supports upflow, downflow, and horizontal configurations to accommodate different equipment layouts.
• Flexible Split System Configuration – Separates the outdoor condensing unit from the indoor air handler to provide flexibility in equipment placement.
• High-Efficiency Scroll Compressor – Incorporates scroll compressor technology and Copeland® CoreSense™ Technology for dependable cooling operation.
• R-32 Refrigerant Compatibility – Uses R-32 refrigerant technology with a compatible air handler designed for A2L refrigerant applications.
• Service-Friendly Components – Includes a factory-installed outdoor filter drier, accessible service valve gauge ports, and tool-less air handler filter access to support routine maintenance.

Rated Cooling Capacity for Commercial Comfort

The Daikin DC3SEA3640 / AMST42CU1300 combines a nominal 3-ton outdoor air conditioner with a multi-position indoor air handler. Daikin's DC3SEA3640 submittal lists a rated cooling capacity of 34,200 BTU/h for its specified AHRI-rated high-sales-volume tested combination, with a rated SEER2 of 13.4 and EER2 of 11.2. The outdoor unit uses a single-stage scroll compressor and R-32 refrigerant for cooling operation. Actual performance for the DC3SEA3640 paired with the AMST42CU1300 must be confirmed against the approved combination's certification and performance data rather than assumed from the outdoor unit's published ratings.

High-Efficiency Scroll Compressor and Cooling Performance

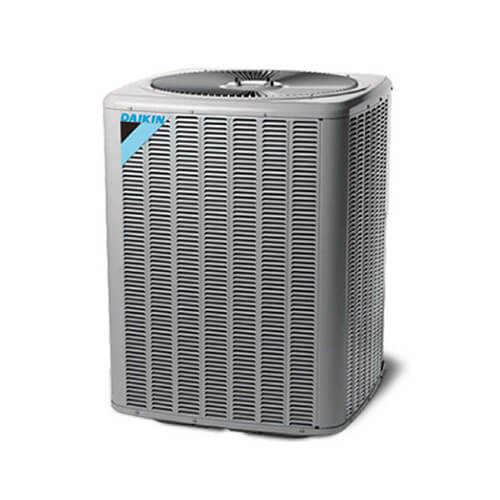

The DC3SEA3640 outdoor condensing unit features a high-efficiency scroll compressor and advanced Copeland® CoreSense™ Technology. Its published rated combination achieves 11.2 EER2 and 13.4 SEER2 under the manufacturer's specified test conditions. Additional outdoor unit features include a factory-installed filter drier, sweat-connection service valves with accessible gauge ports, an enclosed contactor, a high-pressure switch, and extended-life capacitors. These components support routine refrigeration-system servicing and dependable cooling operation when the equipment is correctly installed and maintained.

13.4 SEER2 Efficiency with Single-Stage Operation

The DC3SEA3640 outdoor unit uses single-stage compressor operation and carries published ratings of 13.4 SEER2 and 11.2 EER2 for its specified rated combination. These standardized ratings provide a basis for comparing cooling efficiency under defined test conditions. Actual energy consumption depends on the approved indoor and outdoor equipment pairing, building characteristics, operating schedules, outdoor temperatures, thermostat settings, duct design, and maintenance. The AMST42CU1300 uses a direct-drive, 9-speed ECM blower motor, allowing airflow settings to be selected according to the system's installation requirements.

Split System Design for Flexible Installation

The split system configuration separates the DC3SEA3640 outdoor condensing unit from the AMST42CU1300 indoor air handler, allowing equipment placement to be adapted to the building layout. The DC3SEA3640 is factory charged for 15 feet of refrigerant tubing and features 3/8-inch liquid and 7/8-inch suction service valve connections. The outdoor unit's published specifications identify a maximum total refrigerant piping length of 200 feet and a maximum vertical separation of 79 feet. The AMST42CU1300 supports upflow, downflow, and horizontal installation configurations. Refrigerant piping sizes, additional refrigerant charge, electrical requirements, clearances, and approved system compatibility must be verified against the applicable Daikin submittals and installation instructions before installation.

Airflow, Controls & Indoor Comfort

The AMST42CU1300 air handler features a direct-drive, 9-speed ECM blower motor, an all-aluminum evaporator coil with high-performance coated fin stock, and a factory-installed thermal expansion valve for compatible cooling applications. Its multi-speed blower provides flexibility when selecting airflow settings to suit the installed ductwork and system requirements. The AMST series also incorporates a factory-installed R-32 refrigerant sensor designed for the lifespan of the coil. Compatible thermostat and control equipment must be selected according to the system configuration and manufacturer's requirements. Proper airflow adjustment, refrigerant charging, and thermostat setup are important for achieving reliable cooling performance.

Commercial Applications and Installation Flexibility

The Daikin DC3SEA3640 / AMST42CU1300 is intended for compatible ducted cooling applications where the equipment combination, electrical supply, airflow requirements, and rated performance meet the project's specifications. Potential applications include appropriately sized offices, retail spaces, and similar light commercial environments. The separate indoor and outdoor components provide installation flexibility, while the AMST42CU1300's multi-position cabinet accommodates different installation orientations. The DC3SEA3640 requires a 460V, 60Hz, three-phase electrical supply, which must be confirmed against the building's available power. Because the indoor air handler is nominally 3.5 tons and the outdoor unit is nominally 3 tons, verify the approved system pairing and certified performance before purchase or installation.

Service & Maintenance Features

The DC3SEA3640 outdoor unit includes a factory-installed filter drier, sweat-connection service valves with accessible gauge ports, an enclosed contactor, a high-pressure switch, and extended-life capacitors. Its cabinet features a removable grille-style top, a steel louver coil guard, and top and side maintenance access. The AMST42CU1300 air handler features tool-less filter access, a coil mounting track for repositioning, and cabinet insulation designed for secure retention. Routine maintenance should include air filter inspection and replacement as needed, indoor and outdoor coil cleaning, condensate drainage checks, electrical connection inspection, and verification of refrigerant charge and airflow by qualified service personnel.

Warranty

The Daikin DC3SEA commercial air conditioner series includes a 5-Year Parts Limited Warranty. Online registration must be completed within 60 days of installation to receive the 5-Year Parts Limited Warranty where registration is required by applicable law. The AMST R-32 air handler includes a 12-Year Parts Limited Warranty, subject to applicable registration requirements and warranty conditions. Coverage, eligibility, limitations, exclusions, and registration rules vary by product and jurisdiction. Review the applicable Daikin warranty documents for the DC3SEA3640 and AMST42CU1300 to confirm coverage for each component.

Recommended Accessories

• Compatible Thermostat or Commercial Control – Select a thermostat compatible with the single-stage cooling system and installed air handler configuration.
• Outdoor Equipment Pad – Provides a suitable support surface for the outdoor condensing unit where ground-level installation is used.
• Electrical Disconnect – Select an appropriately rated disconnect based on the DC3SEA3640 nameplate, 460V three-phase electrical requirements, and applicable electrical codes.
• Refrigerant Line Set – Select compatible refrigerant piping with 3/8-inch liquid and 7/8-inch suction connections, sized and installed according to Daikin requirements.
• Electric Heater Kit – Compatible Daikin AMST42CU1300 heater kits are available in multiple capacities. Confirm approved kit compatibility, electrical requirements, and minimum airflow requirements before selection.

Dependable Commercial Cooling with the Daikin DC3SEA3640 / AMST42CU1300

Experience dependable ducted cooling with the Daikin DC3SEA3640 / AMST42CU1300 split system air conditioner. Combining a nominal 3-ton outdoor condensing unit with a multi-position, 9-speed ECM air handler, this configuration features single-stage scroll compressor technology, R-32 refrigerant, flexible installation options, and service-friendly components. Verify the approved indoor and outdoor equipment pairing and its certified performance ratings to ensure the selected system meets the project's cooling, electrical, and installation requirements.
