Daikin 4 Ton 13.4 SEER2 Commercial Air Conditioning Condenser | 460V 3 Phase - R32 - Single Stage

Efficient 4-Ton Commercial Split Air Conditioner for Light Commercial Applications with R-32 Refrigerant

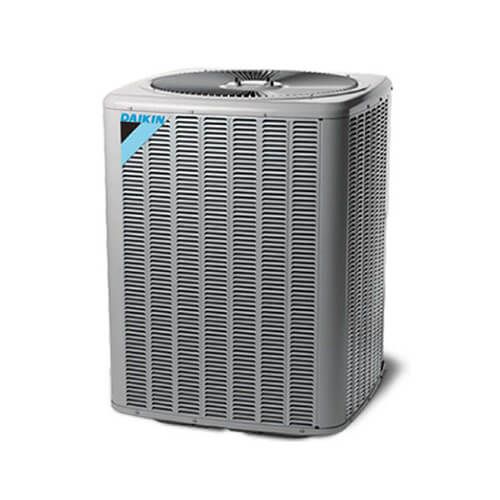

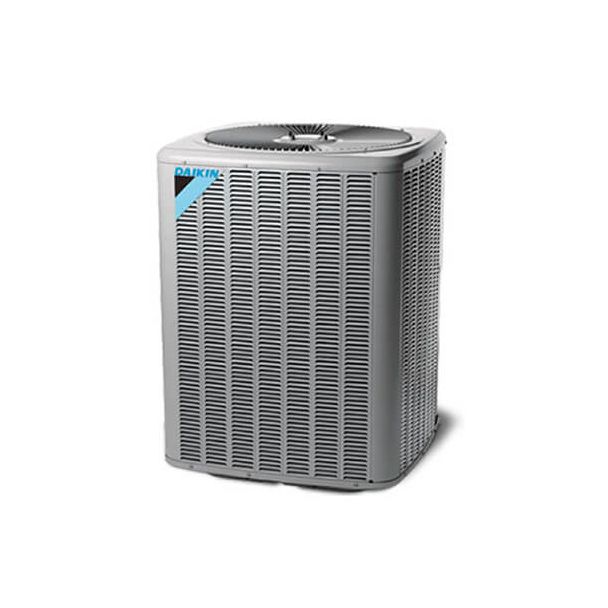

The Daikin DC3SEA4840 is a 4-ton commercial split air conditioner system designed to provide efficient, reliable cooling for light commercial applications. Combining the 48,000 Btu/h DC3SEA4840 outdoor condensing unit with a compatible indoor coil and air handler, this split system provides 13.4 SEER2 efficiency while offering single-stage scroll compressor operation, flexible installation, durable outdoor construction, and R-32 refrigerant.

Key Benefits

• 13.4 SEER2 Efficiency – Helps provide efficient cooling operation for light commercial applications.
• 48,000 Btu/h Cooling Capacity – Provides nominal 4-ton cooling capacity for commercial comfort applications.
• High-Efficiency Scroll Compressor – Provides dependable single-stage cooling performance.
• Advanced Copeland® CoreSense™ Technology – Provides compressor monitoring and protection technology.
• Flexible Split-System Installation – Separates the outdoor condensing unit from the indoor coil and air handler for flexible equipment placement.
• R-32 Refrigerant – Uses R-32 refrigerant in the commercial split air conditioning system.
• Durable Outdoor Cabinet – Features a custom nickel gray powder-paint finish with 500-hour salt-spray approval, a steel louver coil guard, and rust-resistant screws.
• Service-Friendly Design – Provides top and side maintenance access and single-panel access to the controls with space for field-installed accessories.

48,000 Btu/h Cooling Capacity – Primary Cooling Benefit

The DC3SEA4840 provides 48,000 Btu/h of nominal cooling capacity in a 4-ton commercial air conditioning configuration. The system is rated at 13.4 SEER2 and uses R-32 refrigerant and a single-stage scroll compressor to provide dependable cooling for light commercial applications.

High-Efficiency Scroll Compressor – Cooling Performance

The DC3SEA4840 outdoor condensing unit provides 48,000 Btu/h of nominal cooling capacity using a high-efficiency scroll compressor. The unit provides single-stage cooling operation and incorporates Advanced Copeland® CoreSense™ Technology for compressor monitoring and protection.

13.4 SEER2 Efficiency

With a 13.4 SEER2 rating and single-stage compressor operation, the DC3SEA4840 is designed to provide efficient cooling for light commercial applications. The unit uses a copper tube and enhanced aluminum fin coil with 5 mm diameter tubing to support effective heat transfer. A factory-installed filter drier is included as part of the refrigeration system.

Split System Installation Design

The split system configuration separates the DC3SEA4840 outdoor condensing unit from the compatible indoor coil and air handler, providing flexibility for equipment placement and installation. The unit is designed for 460V, 60 Hz, three-phase electrical service and is factory charged for 15 feet of refrigerant tubing. The outdoor unit uses 3/8-inch liquid and 1-1/8-inch suction line sizes, with 3/8-inch liquid and 7/8-inch suction service valve connections.

Controls & Comfort

The DC3SEA4840 uses single-stage compressor operation and is designed to operate with compatible indoor equipment and a suitable thermostat or control. The outdoor unit includes an enclosed contactor, high-pressure switch, ground lug connection, and extended-life capacitors to support reliable system operation.

Commercial Applications

The Daikin DC3SEA4840 is designed for 4-ton commercial split-system air conditioning applications requiring 460V, three-phase, 60 Hz electrical service. Its 48,000 Btu/h nominal cooling capacity makes it suitable for light commercial spaces requiring dependable cooling from a separate outdoor condensing unit and indoor air-handling system. The outdoor unit is suitable for ground-level or rooftop installation.

Service & Maintenance

The DC3SEA4840 features sweat-connection service valves with easy access to gauge ports, a factory-installed filter drier, and top and side maintenance access. Single-panel access to the controls provides space for field-installed accessories. The removable grille-style top, wire fan discharge grille, steel louver coil guard, rust-resistant screws, and custom nickel gray powder-paint finish support durability and serviceability for outdoor commercial installations.

Warranty

The Daikin DC3SEA4840 includes a 5-Year Parts Limited Warranty. To receive the 5-Year Parts Limited Warranty, online registration must be completed within 60 days of installation, subject to applicable state and provincial requirements. Complete warranty terms, limitations, exclusions, and registration requirements apply.

Recommended Accessories

• Compatible 4-Ton Indoor Coil – Select the appropriate Daikin indoor coil for the DC3SEA4840 matched-system application
• Compatible 4-Ton Air Handler – Select the appropriate indoor air handler based on the installation configuration
• Commercial Thermostat or Control – Select a compatible control based on the system application and matched indoor equipment
• Equipment Pad or Rooftop Mounting Support – Appropriate support for the outdoor condensing unit installation location
• Electrical Disconnect – Select according to applicable electrical requirements and the installed equipment configuration

Efficient Commercial Cooling with the Daikin DC3SEA4840

Experience efficient, dependable commercial cooling with the Daikin DC3SEA4840. Combining a 48,000 Btu/h outdoor condensing unit, high-efficiency scroll compressor, Advanced Copeland® CoreSense™ Technology, R-32 refrigerant, and enhanced copper tube and aluminum fin coil construction with compatible indoor equipment in one commercial split air conditioner system.
