Daikin 40,000 BTU MXT Multi Zone Mini Split Heat Pump Condenser - R32 | 230V

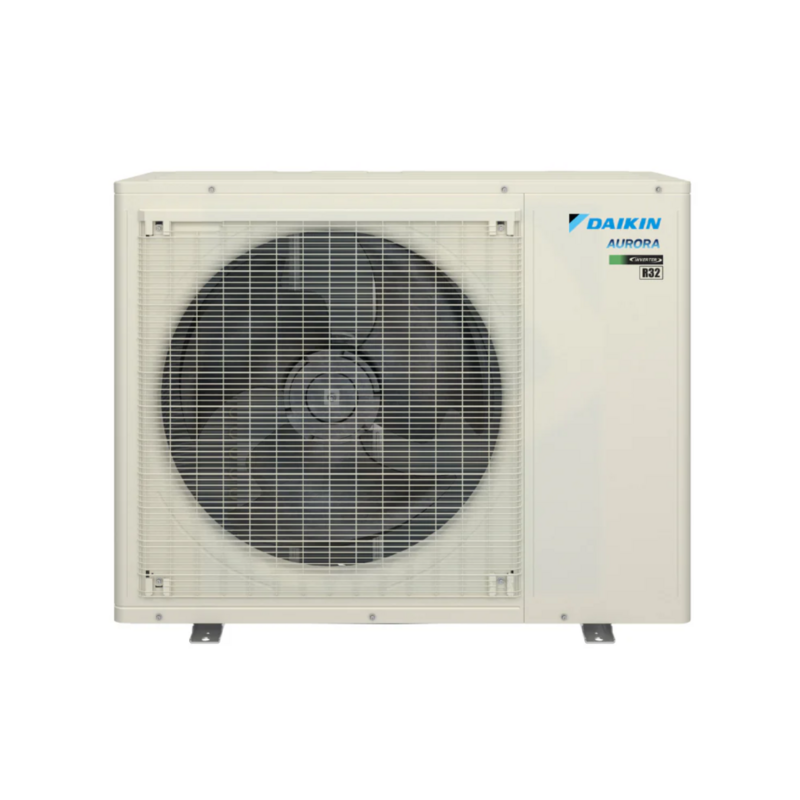

Daikin 5MXT40AVJU9 40,000 BTU 5-Zone Mini Split Condenser – R32 | 230V

This MXT multi-zone condenser is designed to provide efficient heating and cooling for up to five independently controlled indoor units. Featuring inverter-driven technology and R32 refrigerant, it delivers reliable performance, quiet operation, and energy-efficient comfort for residential and light commercial applications.

Key Features

• 40,000 BTU (3.3 Ton) capacity for multi-zone applications
• Supports 2 to 5 indoor units (must be connected to at least two zones)
• Maximum connected indoor capacity up to 58,000 BTU for flexible zone combinations
• Compatible with Daikin wall-mount, ceiling cassette, and concealed duct indoor units
• Inverter-driven swing compressor for improved efficiency and precise temperature control
• R32 refrigerant for reduced environmental impact and enhanced performance
• Individual zone control for customized comfort in each space
• Quiet operation designed to minimize outdoor noise (approx. 55 dBA cooling / 57 dBA heating)
• Enhanced cold-climate heating operation down to -13°F
• Cooling operation range: 14°F to 115°F (outdoor ambient)
• Flexible installation with support for various piping configurations; max total piping length 262 ft
• Up to 20 SEER2 / 11.7 EER2 / 9.5 HSPF2 efficiency when matched with eligible indoor units

Warranty

12-year limited parts warranty (registration required); 5-year limited parts warranty if not registered
