Daikin 5 Ton 13.4 SEER2 Commercial Air Conditioning Condenser | 460V 3 Phase - R32 - Single Stage

High-Efficiency 5-Ton Commercial Split Air Conditioner for Light Commercial Applications with R-32 Refrigerant

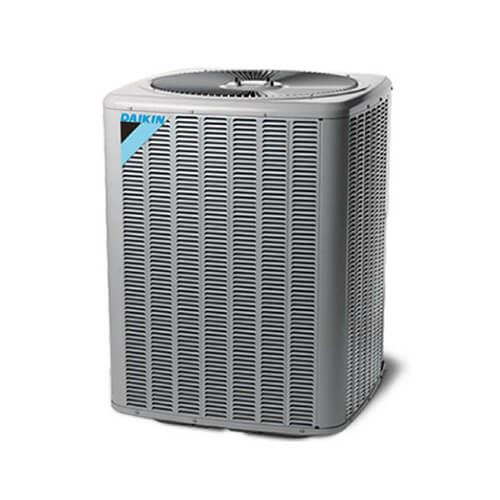

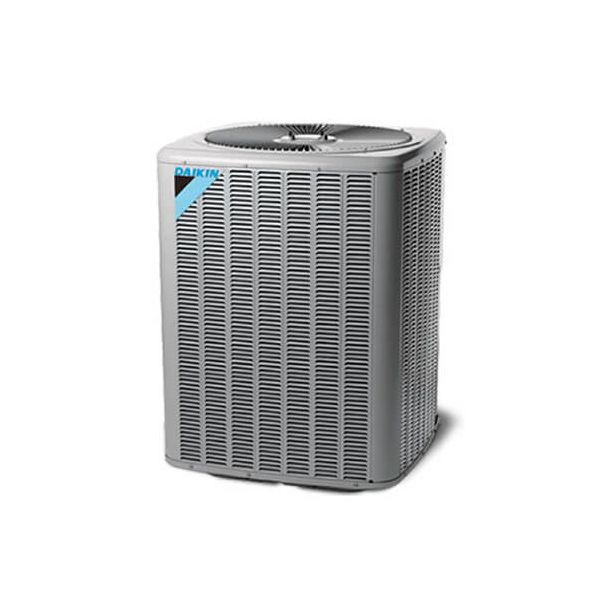

The Daikin DC3SEA6040 is a 5-ton commercial split air conditioner system designed to provide efficient, reliable cooling for light commercial applications. Combining the 60,000 Btu/h DC3SEA6040 outdoor condensing unit with a compatible indoor coil and air handler, this split system provides 13.4 SEER2 efficiency while offering single-stage scroll compressor operation, flexible installation, durable outdoor construction, and R-32 refrigerant.

Key Benefits

• 13.4 SEER2 Efficiency – Helps provide efficient cooling operation for light commercial applications.
• 60,000 Btu/h Cooling Capacity – Provides nominal 5-ton cooling capacity for commercial comfort applications.
• High-Efficiency Scroll Compressor – Provides dependable single-stage cooling performance.
• Advanced Copeland® CoreSense™ Technology – Provides compressor monitoring and protection technology.
• Flexible Split-System Installation – Separates the outdoor condensing unit from the indoor coil and air handler for flexible equipment placement.
• R-32 Refrigerant – Uses R-32 refrigerant in the commercial split air conditioning system.
• Durable Outdoor Cabinet – Features a custom nickel gray powder-paint finish with 500-hour salt-spray approval, a steel louver coil guard, and rust-resistant screws.
• Service-Friendly Design – Provides top and side maintenance access and single-panel access to the controls with space for field-installed accessories.

60,000 Btu/h Cooling Capacity – Primary Cooling Benefit

The DC3SEA6040 provides 60,000 Btu/h of nominal cooling capacity in a 5-ton commercial air conditioning configuration. The unit uses a single-stage scroll compressor and R-32 refrigerant to provide dependable cooling for light commercial applications. The DC3SEA6040 is identified by Daikin as the 460V, three-phase, 60 Hz 5-ton model in the DC3SEA series.

High-Efficiency Scroll Compressor – Cooling Performance

The DC3SEA6040 outdoor condensing unit provides 60,000 Btu/h of nominal cooling capacity using a high-efficiency scroll compressor. The unit is designed for single-stage cooling operation and incorporates Advanced Copeland® CoreSense™ Technology for compressor monitoring and protection.

13.4 SEER2 Efficiency

With a 13.4 SEER2 rating and single-stage compressor operation, the DC3SEA6040 is designed to provide efficient cooling for light commercial applications. The unit uses a copper tube and enhanced aluminum fin coil with 5 mm diameter tubing to support effective heat transfer. A factory-installed filter drier is included as part of the refrigeration system.

Split System Installation Design

The split system configuration separates the DC3SEA6040 outdoor condensing unit from the compatible indoor coil and air handler, providing flexibility for equipment placement and installation. The unit uses a 3/8-inch liquid line and 1-1/8-inch suction line for the standard 25-foot line-set rating, with 3/8-inch liquid and 7/8-inch suction service valve connections. The unit is factory charged for 15 feet of 3/8-inch liquid line, with system charge adjusted according to the Daikin final charge adjustment procedure.

Controls & Comfort

The DC3SEA6040 uses single-stage compressor operation and connects to the indoor unit low-voltage terminal block and indoor thermostat. The outdoor unit includes an enclosed contactor, high-pressure switch, ground lug connection, and extended-life capacitors to support reliable system operation.

Commercial Applications

The Daikin DC3SEA6040 is designed for 5-ton commercial split-system air conditioning applications requiring 460V, three-phase, 60 Hz electrical service. Its 60,000 Btu/h nominal cooling capacity makes it suitable for light commercial spaces requiring dependable cooling from a separate outdoor condensing unit and indoor air-handling system.

Service & Maintenance

The DC3SEA6040 features sweat-connection service valves with easy access to gauge ports, a factory-installed filter drier, and top and side maintenance access. Single-panel access to the controls provides space for field-installed accessories. The removable grille-style top, wire fan discharge grille, steel louver coil guard, rust-resistant screws, and custom nickel gray powder-paint finish support durability and serviceability for outdoor commercial installations.

Warranty

The Daikin DC3SEA6040 is covered by applicable Daikin limited warranty terms. Complete warranty details, including applicable coverage, registration requirements, limitations, and exclusions, are available through Daikin or an authorized Daikin distributor.

Recommended Accessories

• Anchor Bracket Kit – Provides anchoring brackets for securing the outdoor unit to its pad
• Anti-Short Cycle Kit – Provides anti-short-cycle functionality for the compatible outdoor unit
• Freeze Protection Kit – Provides freeze protection for the compatible indoor coil application
• Liquid Line Solenoid Kit – Provides a field-installed liquid line solenoid application where required
• Low-Ambient Kit – Provides a low-ambient accessory option for compatible applications

Efficient Commercial Cooling with the Daikin DC3SEA6040

Experience efficient, dependable commercial cooling with the Daikin DC3SEA6040. Combining a 60,000 Btu/h outdoor condensing unit, high-efficiency scroll compressor, Advanced Copeland® CoreSense™ Technology, R-32 refrigerant, and enhanced copper tube and aluminum fin coil construction with compatible indoor equipment in one commercial split air conditioner system.
