Daikin 7.5 Ton 11.2 EER Commercial Air Conditioner Condenser | 208/230V 3 Phase - R410A - Two Stage

By

Daikin

Out of stock
Model

DX14XA0903-AC00621

ID

163764

Damage description: New, never used. The unit has bent cooling fins and damaged metal on the top of the outer guard. The unit lost some refrigerant during the pressure test. One of the fan blades were bent on the end and rubbing on the side of air tunnel. We opened the top and straightened the blades and recentered the tunnel. Product is sold as-is, please refer to pictures.

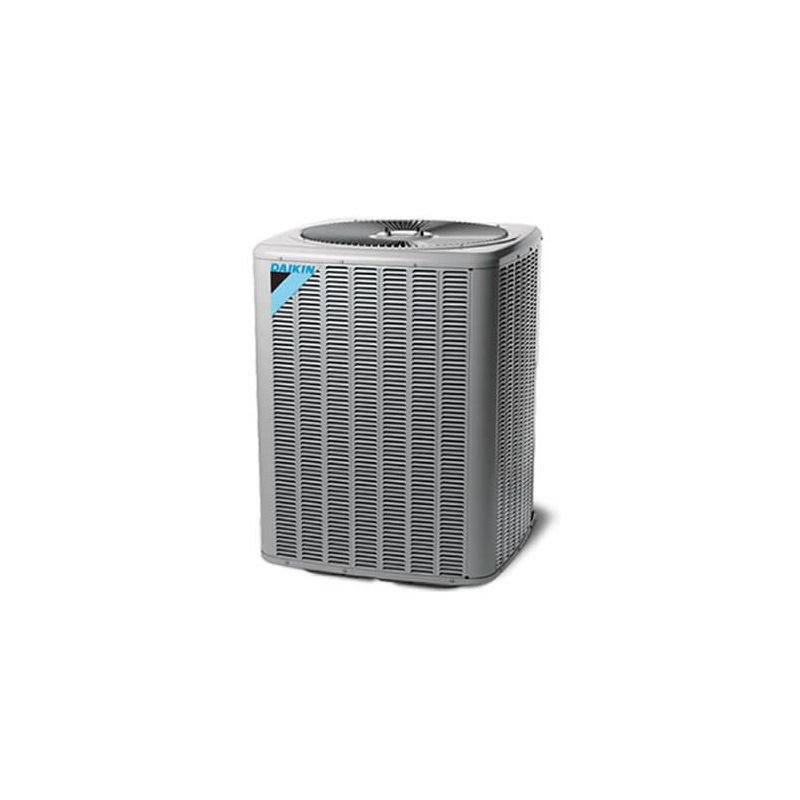

The Daikin Air Conditioner Condensing Unit provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations. The design includes an Innovative louvered sound control top.

Standard Features

  • R-410A chlorine-free refrigerant
  • Energy-efficient scroll compressor
  • Factory-Installed Filter Drier
  • Single panel access to controls
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Nickel Gray powder-paint finish
  • AHRI Certified; ETL Listed
More Information
Daikin 7.5 Ton 11.2 EER Commercial Air Conditioner Condenser | 208/230V 3 Phase - R410A - Two Stage
FeatureSpec
SKUDX14XA0903-AC00621
Refrigerant ChargePre-Charged For: 15'
Weight (in lbs)325
Brand/ManufacturerDaikin
ReplacesDX11TA0903
UPC686797026616
Cooling BTU93,000 BTU
Decibel Level (dBA)84 Decibels
RefrigerantR410A
EER11.2
IEER14.8
Condenser StagesTwo Stage
Compressor TypeScroll
Liquid Valve Size5/8"
Suction Valve Size1 3/8"
Electrical208/230v 3 Phase 60 Hz
PhaseThree Phase
Max Breaker Size60 Amps
Min. Breaker Size39.2 Amps
Tonnage7.5 Ton
Height41.5"
Width35.5"
Depth35.5"
Warranty5 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
