High-Efficiency 7.5-Ton Commercial Split Air Conditioner for Commercial Buildings with Two-Stage Cooling
The Daikin DC6TE09040 / DAQ09034 is a nominal 7.5-ton commercial split air conditioning system designed to provide dependable ducted cooling for commercial buildings and other compatible light commercial applications. Combining the DC6TE09040 outdoor condensing unit with the DAQ09034 commercial air handler, this system features a two-stage tandem compressor design, R-32 refrigerant, and an air handler equipped with two direct-drive, 5-speed blower motors. The outdoor unit delivers a rated cooling capacity of 95,000 BTU/h in the manufacturer's published rated combination, with a rated EER of 12.3 and IEER of 16.4. Both units are designed for 460V, 60Hz, three-phase electrical service, providing a compatible configuration for commercial buildings with the required electrical infrastructure.
Key Benefits
- 16.4 IEER Energy Efficiency – Provides a published integrated energy efficiency rating to help evaluate cooling performance across varying commercial operating conditions.
- 7.5-Ton Nominal System Capacity – Combines a nominal 90,000 BTU/h air handler with an outdoor unit rated at 95,000 BTU/h in the manufacturer's specified tested combination.
- Two-Stage Tandem Compressor – Provides two-stage cooling operation to accommodate changing cooling loads in commercial environments.
- Dual 5-Speed Blower Motors – The DAQ09034 air handler uses two direct-drive, 5-speed motors to provide airflow adjustment flexibility for commercial duct systems.
- Copper-Tube and Aluminum-Fin Coils – Supports heat transfer during cooling operation through the outdoor and indoor coil assemblies.
- R-32 Refrigerant Technology – Uses R-32 refrigerant with a factory-installed leak mitigation system in the compatible air handler.
- 460V Three-Phase Electrical Compatibility – Both units are designed for 460V, 60Hz, three-phase power, subject to the equipment nameplates and applicable electrical requirements.
- Service-Friendly Air Handler Cabinet – Features removable access panels, an integrated filter rack with an included 2-inch filter, and top-panel access for electrical connections to facilitate installation and maintenance.
7.5-Ton Commercial Cooling Capacity
The Daikin DC6TE09040 / DAQ09034 split system is designed for commercial applications requiring substantial ducted cooling capacity. The DC6TE09040 outdoor condensing unit provides a published rated cooling capacity of 95,000 BTU/h under the manufacturer's specified AHRI-rated high-sales-volume tested combination. The DAQ09034 air handler has a nominal cooling capacity of 90,000 BTU/h. The outdoor unit uses a two-stage tandem compressor design to provide cooling at different compressor stages. Actual system capacity and performance depend on the approved indoor and outdoor equipment combination, operating conditions, airflow, refrigerant charge, and installation quality. Confirm the applicable certified performance data when specifying this system.
Two-Stage Compressor Technology for Commercial Cooling Performance
The DC6TE09040 outdoor condensing unit features a two-stage tandem compressor design that allows the system to operate at different cooling stages according to demand. This configuration supports adaptable cooling operation for commercial environments with varying thermal loads. The unit uses R-32 refrigerant and has a published EER of 12.3. Additional features include a high-efficiency copper-tube and aluminum-fin condenser coil, brass liquid and suction service valves, high- and low-pressure switches, and a factory-installed filter drier. These components support heat transfer, refrigeration-system protection, and routine service procedures.
16.4 IEER Efficiency for Commercial Operation
The Daikin DC6TE09040 carries a published Integrated Energy Efficiency Ratio (IEER) of 16.4 and an Energy Efficiency Ratio (EER) of 12.3 in the manufacturer's rated combination. IEER evaluates commercial air conditioning efficiency across multiple operating conditions and part-load scenarios, making it useful for equipment serving buildings with changing cooling demands. The system's two-stage compressor design provides different levels of cooling output to accommodate varying loads. Actual energy consumption depends on building occupancy, outdoor conditions, thermostat settings, duct design, maintenance, and operating schedules. SEER2 and EER2 ratings are not listed in the referenced DC6TE09040 submittal and should not be inferred from its IEER and EER values.
Split System Design for Flexible Commercial Installation
The split system configuration separates the DC6TE09040 outdoor condensing unit from the DAQ09034 indoor air handler, allowing equipment placement to be adapted to the building layout. The outdoor unit is factory charged for 15 feet of refrigerant piping and uses 5/8-inch liquid and 1-1/8-inch suction service valve connections. The published maximum total refrigerant piping length is 150 feet, with a maximum vertical separation of 25 feet. The specified additional refrigerant charge is 1.54 ounces per foot, subject to Daikin's line-sizing and charging instructions. The DAQ09034 features a reinforced, galvanized-steel cabinet, horizontal and vertical condensate pans, and a built-in filter rack. Confirm refrigerant piping requirements, clearances, additional charge, and approved equipment compatibility against the current Daikin installation documentation before installation.
Airflow, Controls & Indoor Comfort
The DAQ09034 commercial air handler features two direct-drive, 5-speed blower motors and two thermal expansion valves for refrigerant metering. Its copper-tube and aluminum-fin coils support heat transfer, while the built-in filter rack accommodates an included 2-inch filter. The dual-motor configuration provides airflow adjustment flexibility for compatible commercial duct systems. The air handler also incorporates an R-32 leak mitigation system designed for the refrigerant application. Compatible thermostat and control equipment must be selected according to the approved indoor and outdoor equipment combination and Daikin's installation requirements. Proper airflow setup, refrigerant charging, and control configuration are essential for achieving reliable cooling performance.
Commercial Applications and Installation Flexibility
The Daikin DC6TE09040 / DAQ09034 is intended for suitable commercial ducted cooling applications requiring a nominal 7.5-ton-class split system. Potential applications include appropriately sized offices, retail buildings, educational facilities, restaurants, and other commercial spaces with compatible cooling loads and ductwork. The two-stage compressor design supports changing cooling demands, while the separate indoor and outdoor equipment provides flexibility in equipment placement. Both the DC6TE09040 and DAQ09034 require 460V, 60Hz, three-phase electrical service. The outdoor unit has a minimum circuit ampacity of 17.9 A and maximum overcurrent protection of 20 A. Verify the air handler's electrical requirements against its nameplate and installation documentation before installation.
Service & Maintenance Features

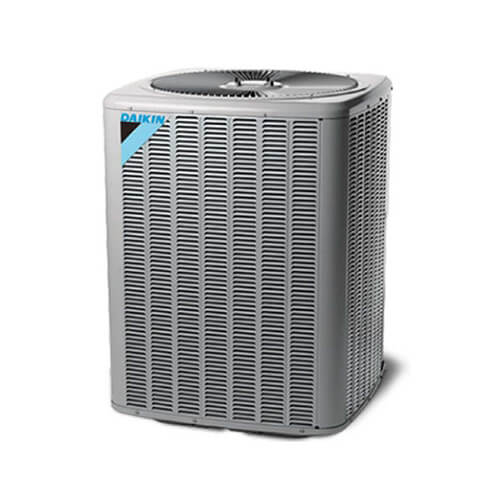

The DC6TE09040 outdoor unit includes high- and low-pressure switches, brass refrigerant service valves, a factory-installed filter drier, a heavy-gauge galvanized-steel cabinet, and a steel louver coil guard. Its sound-control top and raised bottom pan rails support equipment design and installation requirements. The DAQ09034 air handler features a heavy-gauge, reinforced galvanized-steel cabinet, fiberglass blanket insulation, horizontal and vertical condensate pans, and removable access panels to facilitate servicing. The built-in filter rack includes a 2-inch filter. Routine maintenance should include filter inspection and replacement, indoor and outdoor coil cleaning, condensate drainage checks, electrical connection inspection, and verification of refrigerant charge and airflow by qualified service personnel. All R-32 refrigerant work must follow Daikin's applicable installation and safety requirements.
Warranty
The Daikin DC6TE commercial split air conditioner series includes a 5-Year Parts Limited Warranty. Online registration must be completed within 60 days of installation to receive the 5-Year Parts Limited Warranty where registration is required by applicable law. The DAQ commercial air handler series also lists a 5-Year Parts Limited Warranty, subject to the applicable warranty terms. Additional limitations and exclusions apply, and coverage conditions may vary by jurisdiction. Consult the applicable Daikin warranty documentation to confirm registration requirements and coverage for the DC6TE09040 and DAQ09034 equipment combination.
Recommended Accessories
- Compatible Commercial Thermostat or Controller – Select a control compatible with the DC6TE09040 two-stage cooling system and DAQ09034 air handler.
- Outdoor Equipment Pad or Structural Support – Provides suitable support for the outdoor condensing unit according to the installation location and manufacturer's requirements.
- Electrical Disconnect – Select appropriately rated disconnects for the outdoor unit and air handler based on their respective nameplates and applicable electrical codes.
- Refrigerant Line Set – Select compatible refrigerant piping with 5/8-inch liquid and 1-1/8-inch suction connections, following Daikin's line-sizing, piping-length, and charging requirements.
- Commercial Duct Transitions and Connectors – Select appropriately sized duct transitions and connections to match the DAQ09034 air handler and building duct design.
- Replacement 2-Inch Air Filter – Use a compatible replacement filter sized for the DAQ09034 built-in filter rack.
- Condensate Drain Components – Select compatible drain piping, traps, and fittings for the air handler's 3/4-inch condensate connection and the installation requirements.
High-Efficiency Commercial Cooling with the Daikin DC6TE09040 / DAQ09034
Experience dependable commercial cooling with the Daikin DC6TE09040 / DAQ09034 split system air conditioner. Combining a nominal 7.5-ton-class outdoor condensing unit with a commercial air handler featuring two direct-drive, 5-speed blower motors, this system offers two-stage tandem compressor technology, R-32 refrigerant, a published 16.4 IEER rating, and service-friendly equipment construction. Designed for compatible commercial ducted applications, it provides a flexible split system configuration for projects requiring substantial cooling capacity and 460V three-phase electrical service.
