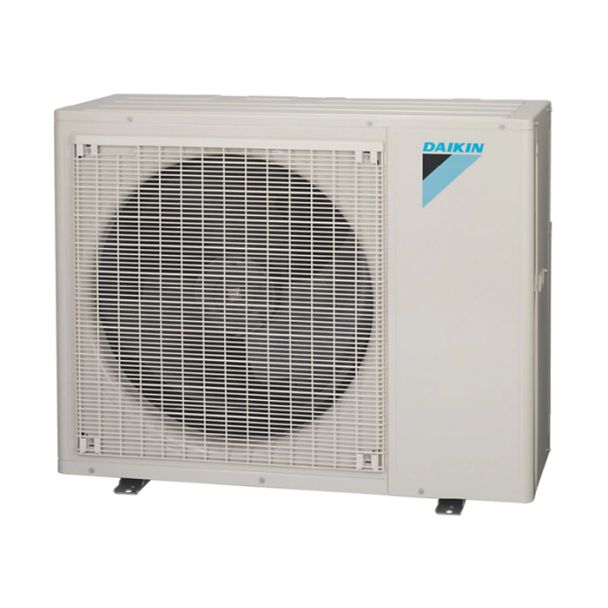

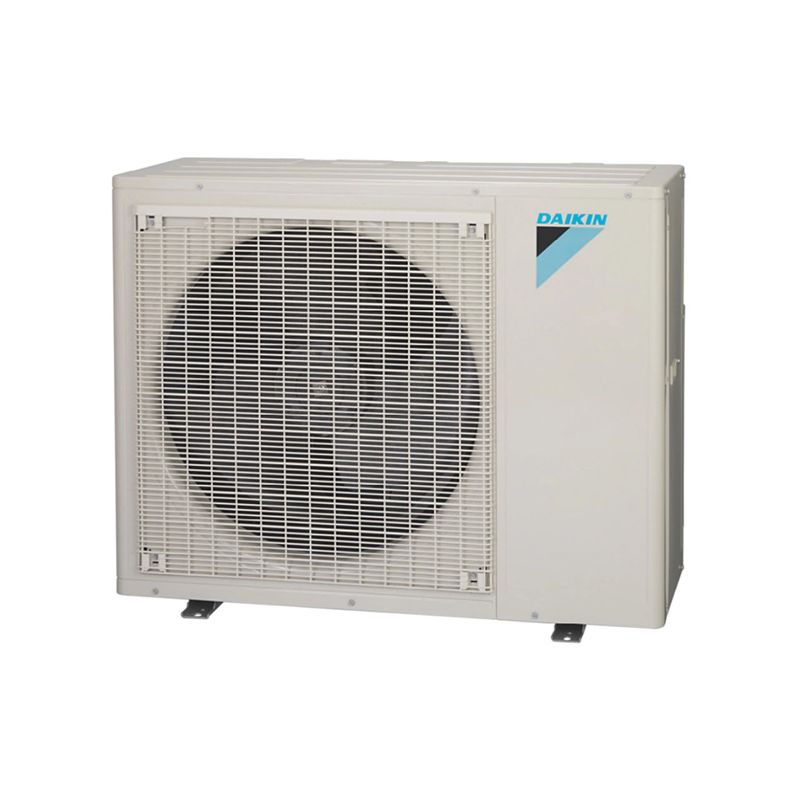

36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser







100% of 100
Availability: In Stock - Ready to Ship

Authorized Daikin Dealer

AHRI Certified

AHRI Number:202522139, 202521824, 202522140

Free Shipping

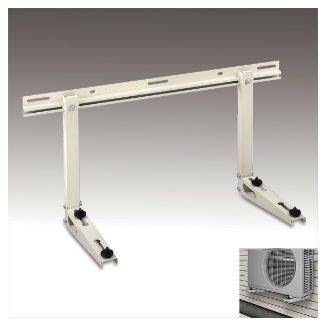

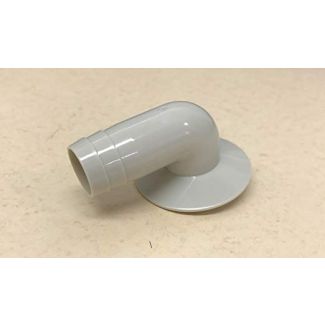

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing


The Daikin Multi Zone MXL Series is the perfect fit for multi-room applications. You can connect two, three, or four indoor units to a single outdoor unit. The ability to choose from wall mount, duct units, floor mount, or ceiling cassette units offers you over 1000 combinations for your installation needs. The system also offers up to 21.7 SEER for home comfort and energy savings. The MXL Series also provides enhanced capacity performance in extreme heat and cold ambient conditions. With long-life filters and quiet operation, the MXL Series is a reliable and efficient solution for your home.

With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. The MXL Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units, allowing you to blend them in almost invisibly with your home's existing furnishings.

  • Heat Pump – This system provides heating and cooling.
  • Aurora Heat Pump for extreme weather conditions
  • Outdoor Unit Quiet Operation – This feature allows you to reduce the outdoor unit's sound levels by 3 dB at times when quieter operation is needed.
  • Auto-Restart – This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Intelligent Defrost Mode – The outdoor unit can enable this mode to prevent frost and ice build up in cold climate conditions. This mode also helps deliver long hearing time for additional comfort.

Product Specifications

More Information
36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser
Refrigerant Chargeprecharged for: 131'
Weight (in lbs)214.000000
AHRI Certificate Number202522139, 202521824, 202522140
Additional InformationHeat Pump
Additional InformationPrecharged for: 131'
Additional InformationMaximum Line Set Length: 98'
Additional InformationMaximum System Line Set Length: 230'
Additional InformationNumber of Zones: 2-4
Cooling BTU34400
Heating BTU36600
Decibel Level (dBA)53-55
Energy StarYes
Compressor TypeSwing
Liquid Line1/4" (4)
Suction Line3/8" (1), 1/2" (2), 5/8" (1)
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size35 Amps
Min. Breaker Size32.5 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-13°F - 60°F
Min/Max Outdoor Temp for Cooling14°F - 115°F
Zone CompatibilityMulti Zone
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

Reviews 2

Write Your Own Review
You're reviewing:36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser
Your Rating

Questions and Answers

Customer Questions
Can you connect two fxscq09tavju to this unit?
Thank you for your question. We would recommend reaching out to the manufacturer to confirm that the air handler models you inquired about are compatible with this outdoor condenser. You can reach Daikin's customer service by calling 1 (855) 770-5678.
