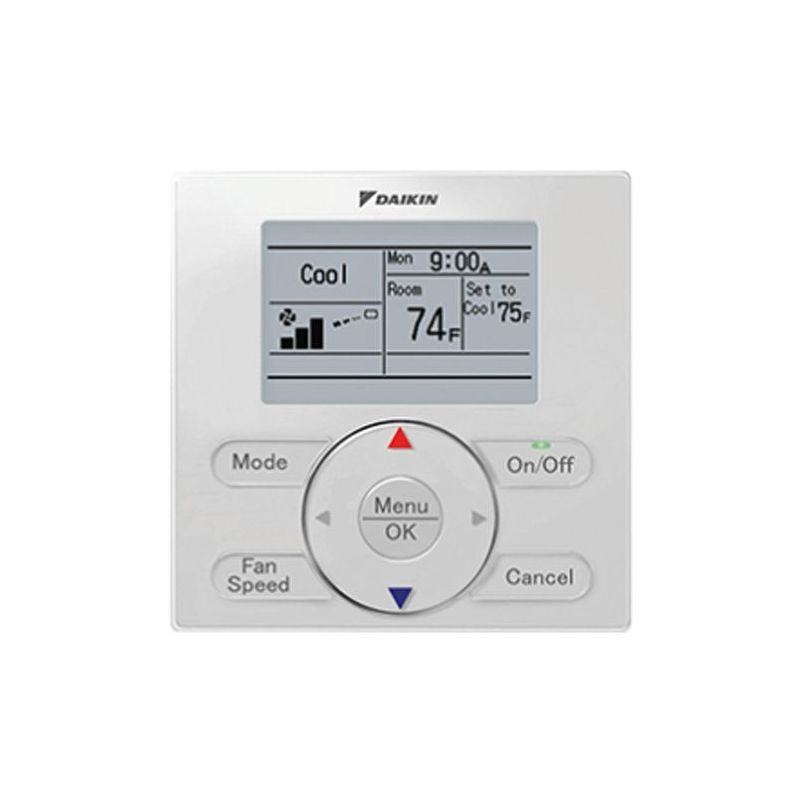

Daikin Wired Navigation Controller for P1P2 Units

The Daikin Navigation Remote Controller can be used to control indoor units using the P1P2 protocol. This control does not need to be powered separately and uses field supplied stranded 18/2 wire.

Up to 16 indoor units can be controlled as a group for large coverage. Two BRC1E73 can be used for a single indoor unit or group as a secondary backup control. Six additional face decals are able to be ordered to hide locked or unnecessary features. The BRC1E73 is backwards comp able with any unit being controlled by the older BRC1E72 control.

Features:

• On/Off
• Fan speed
• Airflow direction
• 7, 5+2, 5+1+1, 1 scheduling
• Auto changeover
• Backlit display
• 12/24 hour clock
• Room temperature sensor
• Fahrenheit °F / Celsius °C
• English, Spanish, French

Compatible Indoor Units:

Wall Mounted:

• FAQ18TAVJU, FAQ24TAVJU

Concealed Ducted:

• FDMQ09RVJU, FDMQ12RVJU, FDMQ15RVJU, FDMQ18RVJU, FDMQ24RVJU
• FBQ18PVJU, FBQ24PVJU, FBQ30PVJU, FBQ36PVJU, FBQ42PVJU, FBQ48PVJU

Ceiling Cassette:

• FFQ09Q2VJU, FFQ12Q2VJU, FFQ15Q2VJU, FFQ18Q2VJU
• FCQ18TAVJU, FCQ24TAVJU, FCQ30TAVJU, FCQ36TAVJU, FCQ42TAVJU, FCQ48TAVJU

Ceiling Suspended

• FHQ18PVJU, FHQ24PVJU, FHQ30PVJU, FHQ36PVJU, FHQ42PVJU

Unitary Ducted

• FTQ18TAVJUD, FTQ24TAVJUD, FTQ30TAVJUD, FTQ36TAVJUD, FTQ42TAVJUD, FTQ48TAVJUD
