Today's Hours 8am - 11pm estDetroit Radiant, Universal-Ray RH-100 - 100,000 BTU Infrared Tube Heater - Natural Gas - 30' Aluminized Tube Kit
Required Fields *
By
Detroit Radiant
In stock
Model
RH 100N-30 / TPK-I
ID
212449
Was $2,022.00
Your Low Price $1,819.80
Product Features
- Single stage burner
- 100,000 BTU infrared heating capacity
- 30' tube and reflector kit with L-bend and U-bend options
- Black-Painted Aluminzied Steel tube raises heat emissivity to 94%
- Flanged tube for easy assembly
- Common vented units must be wired to the same thermostat
Detroit Radiant – Universal Ray, RH Series 100,000 BTU Natural Gas Infrared Tube Heaters – 30 FT Aluminized Steel
Simple. Efficient. Durable.
RH Series 100,000 BTU Natural Gas infrared tube heaters deliver reliable, Single-Stage radiant heat for commercial and industrial environments where efficiency, durability, and simplicity matter. Designed to heat people and surfaces directly, RH Series heaters minimize wasted energy from air stratification and provide consistent comfort in large or high-ceiling spaces.
This RH Series 30-foot infrared tube heater pairs a 100,000 BTU Single-Stage Natural Gas burner with a full Aluminized steel tube assembly to produce steady, even radiant heat across the occupied zone. The black-coated Aluminized steel tubing offers excellent corrosion resistance while maintaining strong heat transfer performance—making it a dependable choice for warehouses, workshops, service bays, manufacturing facilities, and agricultural buildings.
Built with RH Series commercial-grade components, these heaters feature direct spark ignition, a single pressure switch design, and polished aluminum reflectors that focus infrared energy downward where it’s needed most. The result is a rugged, easy-to-operate radiant heating solution engineered for long service life in demanding non-residential applications.
Key Features of RH Series 100,000 BTU Natural Gas Infrared Tube Heaters
- 100,000 BTU Natural Gas input with Single-Stage operation
- 30 ft Aluminized steel tube system for durable, efficient radiant heat
- Direct spark ignition (DSI) with reliable startup performance
- Highly polished aluminum reflectors and end caps for focused heat delivery
- Black-coated Aluminized steel tubing for corrosion resistance
- Single pressure switch design for simplified operation
- 120V electrical requirement
- Designed for non-residential indoor or approved outdoor installations
Ideal Applications
- Warehouses and distribution centers
- Automotive service bays and commercial garages
- Manufacturing and fabrication facilities
- Agricultural and livestock buildings
- Commercial workshops and maintenance areas
Installation Considerations
RH Series 100,000 BTU, 30-foot infrared tube heaters are typically mounted at 15' to 23' feet, depending on layout and clearance requirements. Always maintain published clearances to combustibles and follow all manufacturer installation guidelines. Professional installation by a qualified gas technician is required.

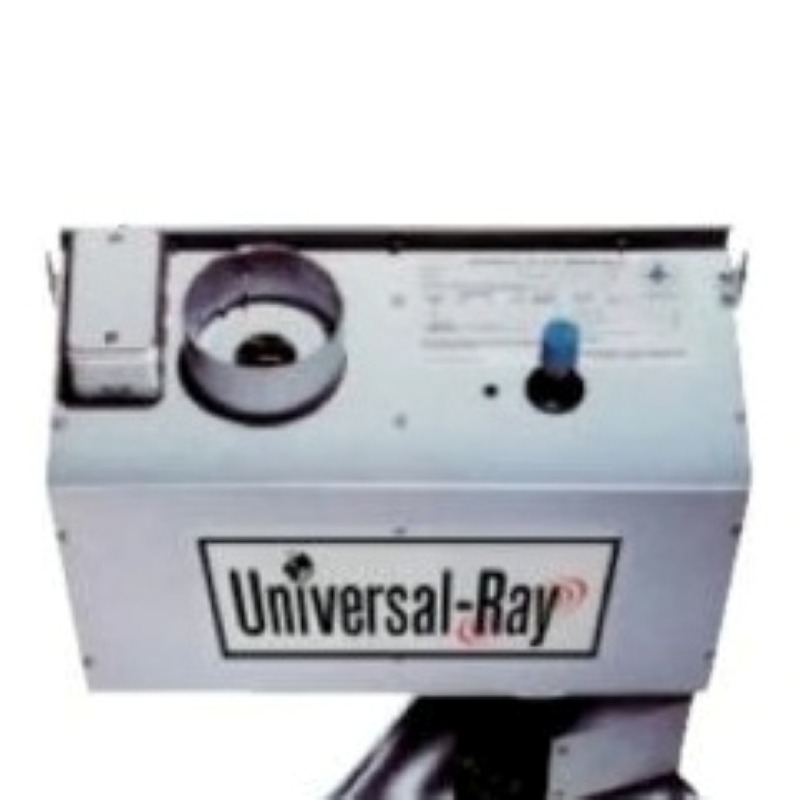

Detroit Radiant RH-100 Natural Gas 100,000 BTU Burner - Single Stage
Overview
Universal-Ray RH Series single-stage infrared tube heaters deliver more than just cost savings. Built with superior craftsmanship, these heaters set the standard in their class. Available in natural gas or propane models, they offer input capacities ranging from 50,000 to 175,000 BTU/h and tube lengths from 20 to 60 feet in a variety of configurations.
Features:
- Enameled control box (light blue).
- 4″ combustion air intake collar.
- Operational indicator lights for troubleshooting at floor level.
- Potted circuit board for high moisture applications.
- Gas cock and flex connector provided.
- Single pressure switch operation.
- Highly polished aluminum reflectors and end caps.
- Turbulator baffle for maximum heat transfer.
- Totally enclosed components.

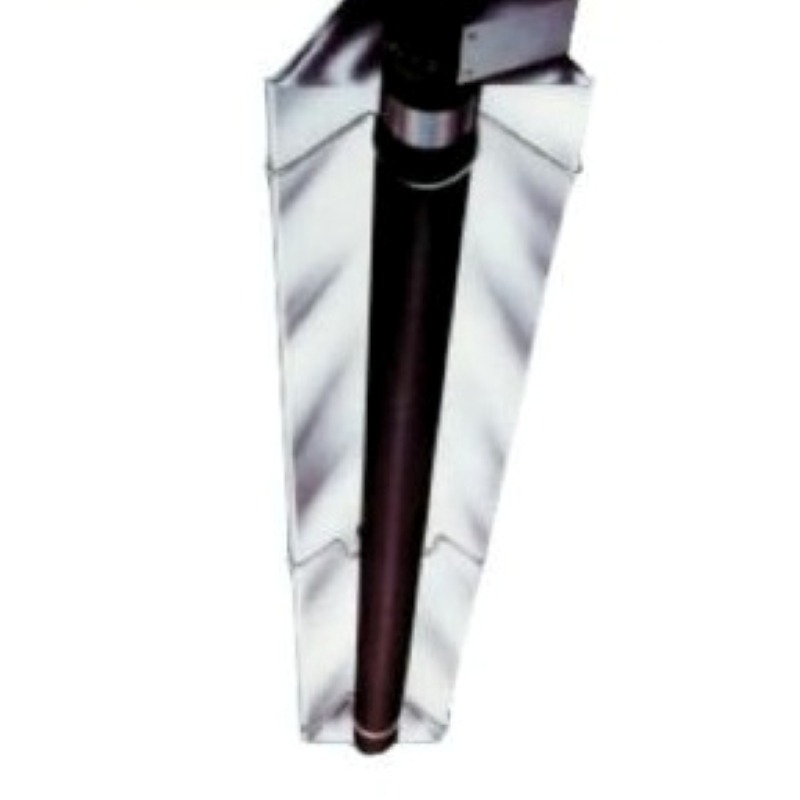

30' Aluminized Tube Kit (RH 50-30, 75-30, 100-30) - Detroit Radiant
Overview
Aluminized Tube Kit is built for Universal-Ray RH Series infrared heaters, featuring aluminized steel construction for superior heat efficiency and corrosion resistance. Ideal for durable, long-term performance in single-stage heating systems.
4" Diameter Elbow & Reflector Package (REP) - Detroit Radiant
4" Diameter Elbow & Reflector Package
5' Chain Set for hanging tube heater (THCS) - Detroit Radiant
Five foot chain set with (2) “S” hooks used for hanging heater. Bulldog coil chain, trade size #1, wire gauge 12, and a working load limit of 155 lbs. each.
Single Stage 120V Programmable Thermostat (TH-PTLV) - Detroit Radiant
Overview
- Range: 40°–86°F
- Accuracy: 1°F
- Operation: Single stage; line voltage
- Electrical Rating: 120 VAC; 16.7 Amp max; non-inductive
- Contact Action: Opens on rise.
- Dimensions: 4.9” x 2.8” x 0.9”
- Additional Features: Separate 7-day programming, program override with vacation hold, early-start function, CSA & UL Listed.
Side Shield Extension 62" (SSE) - Detroit Radiant
Side shield extension polished one side bright. Used to direct infrared rays downward and away from sidewalls and combustibles with (2) 0° mounting brackets, (8) screws, and (1) RCS. NOTE: (2) SSE required to span each 10' reflector section. Maintain published clearances when using this accessory.
Detroit Radiant Outdoor Approval Kit
Outdoor approval kit for RH and RHT Series. For use when applying heaters outdoor. Includes: 60” power cord and 24 V control cord (when applicable), SILSEAL, 90° air inlet collar, and outdoor-designated rating label.
4” Diameter Reflector and U Tube Package (RUP) - Detroit Radiant
4" Dia. 'U' Tube & Reflector Package
10' Gripple tube heater hanging cable (THGH10) - Detroit Radiant
Gripple® tube heater hanging cables. 10’ length of looped cable with an easy-lock fastener per assembly. #2 cable with working load limit of 100 lbs. with a 5:1 load safety ratio.
20' Gripple tube heater hanging cable (THGH20) - Detroit Radiant
Gripple® tube heater hanging cables. 20’ length of looped cable with an easy-lock fastener per assembly. #2 cable with working load limit of 100 lbs. with a 5:1 load safety ratio.
Single Stage 24-277 VAC Thermostat, Rain Tight Enclosure (TH-115) - Detroit Radiant
Overview
- Range: 45°-100°F (4°-38°C heat/cool)
- Max Ambient Temp: 140°F (60°C)
- Differential: 3°F Fixed
- Electrical Rating: 24-277 VAC
- Operation: Single stage
- Contact Action: Opens on rise.
- Dimensions: 7.5” x 3.1” x 2.5”
- Additional Features: NEMA 4X plastic enclosure with all exposed metal parts made of stainless steel, type 300 series stainless coiled temperature sensing bulb, SPDT switch, UL listed, and CSA certified.
Single Stage 24-277 VAC Thermostat (TH-ET5) - Detroit Radiant
Overview
- Range: 35° to 75°F (2° to 24°C)
- Operation: Single stage, high voltage, low voltage
- Electrical Rating: 22 amp non-inductive, 24/277 VAC
- Contact Action: Opens on rise
- Differential: Heat approximately 2°F (17°C)
- Dimensions: 4.75” x 2.75” x 2.75”
- Additional Features: Rugged plastic construction, quick response, non-adjustable, bi-metal operative snap switch, UL Listed, and CSA Certified
