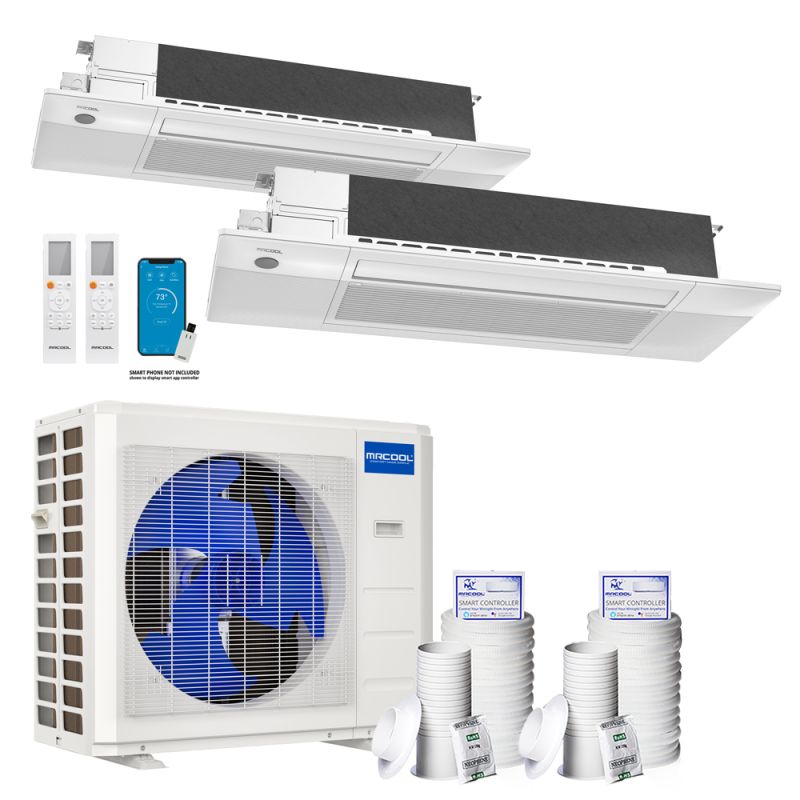

MRCOOL DIY 27,000 BTU 22 SEER2 Dual Zone Ceiling Cassette Air Handler 9+18

By

MRCOOL

In stock

Model

DIY-MULTI3-27HP / DIYCASSETTE09 / DIYCASSETTE18

ID

133280

Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Certified

AHRI Number:205572571

Suggested Retail $4,920.30
Your Low Price $4,076.00

Free Shipping

Required Fields *

Customize MRCOOL DIY 27,000 BTU 22 SEER2 Dual Zone Ceiling Cassette Air Handler 9+18
MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser
MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser   + $1,700.00
MRCOOL DIY 9,000 BTU Multi-Zone Ceiling Cassette Air Handler
MRCOOL DIY 9,000 BTU Multi-Zone Ceiling Cassette Air Handler   + $1,177.00
MRCOOL DIY 18,000 BTU Multi-Zone Ceiling Cassette Air Handler
MRCOOL DIY 18,000 BTU Multi-Zone Ceiling Cassette Air Handler   + $1,199.00
DIY-MULTI3-27HP / DIYCASSETTE09 / DIYCASSETTE18

$4,076.00

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
Perfect Aire DIY 18,000 BTU 22 SEER Dual Zone Heat Pump System 9+9 - Wall Mounted
Perfect Aire DIY 18,000 BTU 22 SEER Dual Zone Heat Pump System 9+12 - Wall Mounted

Description

MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-MULTI3-27HP230 condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-MULTI3-27HP230.

Please note that in order to function you must purchase MRCOOL precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 27,000 BTU multi zone DIY heat pump condenser
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Provides efficient heating down to -4°F
  • Provides efficient cooling down to 5°F
  • Energy Star certified
27,000 BTU

With a rated output of 27,000 BTU, the MRCOOL DIY-MULTI3-27HP230 condenser can easily handle as many as 3 indoor air handlers up to this rated capacity.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-MULTI3-27HP230 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

MRCOOL DIY 9,000 BTU Multi-Zone Ceiling Cassette Air Handler

The MRCOOL® DIY® Series 9k BTU Ceiling Cassette is perfect for any space and provide discreet and out of sight heating and cooling. It is available in multi-zone options and is easy to install, fitting between 16” ceiling joists. The cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MrCool® cassette doesn't require ductwork or wall space and is perfect for new constructions or retrofits. The cassette works with the MrCool® DIY® Quick Connect® line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. The No-Vac® Coupler can be used to increase length. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provided is a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.


Features:

  • Equipment should be installed by a qualified professional
  • 7 year compressor warranty and 5 year parts warranty
  • One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
MRCOOL DIY 18,000 BTU Multi-Zone Ceiling Cassette Air Handler

The MRCOOL® DIY® Series 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series 18k BTU Ceiling Cassette are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.


Features:

  • Equipment should be installed by a qualified professional
  • 7 year compressor warranty and 5 year parts warranty
  • One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions

Product Specifications

More Information
MRCOOL DIY 27,000 BTU Multi-Zone Heat Pump Condenser
SKUDIY-MULTI3-27HP230
Weight145.000000
AHRI Certificate Number205572571
ManufacturerMRCOOL
Product FeaturesQuick Connect
Cooling BTU27,000 BTU
Heating BTU27,000 BTU
RefrigerantR410A
SEER22
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size35
Min. Breaker Size21
BTU/Tonnage27,000 BTU/2.25 Ton
Mini Split TypeWall Mounted
Height31-9/10"
Width37-1/4"
Depth16-1/5"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU Multi-Zone Ceiling Cassette Air Handler
SKUDIYCASSETTE09HP-230C25
Weight23.800000
ManufacturerMRCOOL
Cooling BTU9000 BTU
Heating BTU9000 BTU
Decibel Level (dBA)42
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 18,000 BTU Multi-Zone Ceiling Cassette Air Handler
SKUDIYCASSETTE18HP-230C25
Weight20.600000
ManufacturerMRCOOL
Cooling BTU17000 BTU
Heating BTU19000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size3 amps
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
