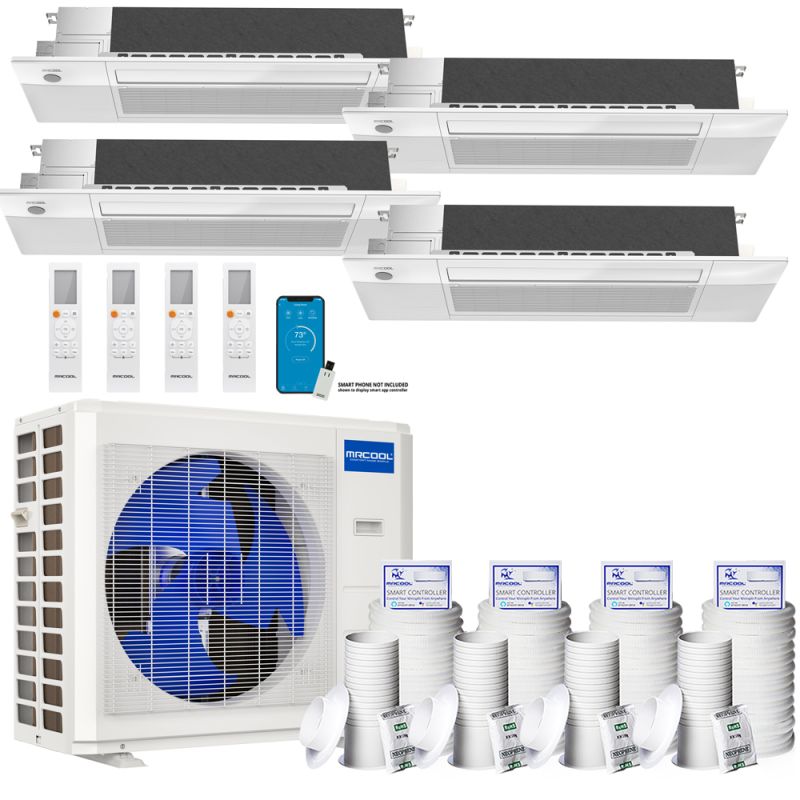

MRCOOL DIY 4th Gen 36,000 BTU 21.5 SEER2 4 Zone Ceiling Cassette Air Handler 9+9+9+12-R410A

DIY 36,000 BTU 21.5 SEER2 MRCOOL 4 Zone Ceiling Cassette Air Handler 9+9+9+12 - DIY-MULTI4-36HP / DIYCASSETTE09-3 / DIYCASSETTE12
SAVE $0.00

Required Fields *

Customer reviews
Rating:
4.4 out of 5
4.4 out of 5 View All 5  Reviews Add Your Review
Out of stock
By

MRCOOL

Out of stock

Model

DIY-MULTI4-36HP / DIYCASSETTE09-3 / DIYCASSETTE12

ID

133322

More Information
MRCOOL DIY 4th Gen 9,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
FeatureSpec
SKUDIYCASSETTE09HP-230C25
Weight (in lbs)23.8
Brand/ManufacturerMRCOOL
UPC840255522199
Cooling BTU9000 BTU
Heating BTU9000 BTU
Decibel Level (dBA)42
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 4th Gen 9,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
FeatureSpec
SKUDIYCASSETTE09HP-230C25
Weight (in lbs)23.8
Brand/ManufacturerMRCOOL
UPC840255522199
Cooling BTU9000 BTU
Heating BTU9000 BTU
Decibel Level (dBA)42
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 4th Gen 9,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
FeatureSpec
SKUDIYCASSETTE09HP-230C25
Weight (in lbs)23.8
Brand/ManufacturerMRCOOL
UPC840255522199
Cooling BTU9000 BTU
Heating BTU9000 BTU
Decibel Level (dBA)42
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 4th Gen 12,000 BTU Multi-Zone Ceiling Cassette Air Handler-R410A
FeatureSpec
SKUDIYCASSETTE12HP-230C25
Weight (in lbs)20.6
Brand/ManufacturerMRCOOL
UPC840255522205
Cooling BTU12000 BTU
Heating BTU12000 BTU
RefrigerantR410A
Liquid Line1/4 in
Suction Line1/2 in
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size3 amps
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeCeiling Cassette
Height8.98"
Width50.31"
Depth13.9"
Warranty5-year Parts/7-year Compressor/1-year Remote
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 4th Gen 36,000 BTU Multi-Zone Heat Pump Condenser-R410A
FeatureSpec
SKUDIY-MULTI4-36HP230
Weight (in lbs)185
AHRI Certificate Number205572572
Brand/ManufacturerMRCOOL
UPC810063869519
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
RefrigerantR410A
SEER2 (Efficiency)22.5
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size45
Min. Breaker Size30
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Height31-9/10"
Width37-1/4"
Depth16-1/5"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
