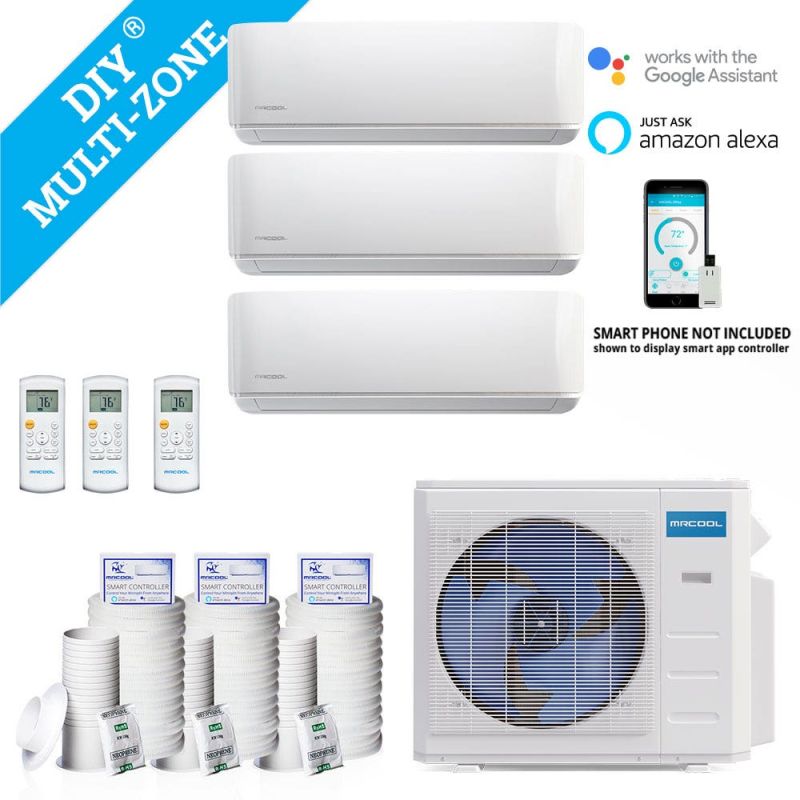

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-MULTI4-36HP230 condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-MULTI4-36HP230.
Please note that in order to function you must purchase MRCOOL precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.
With a rated output of 36,000 BTU, the MRCOOL DIY-MULTI4-36HP230 condenser can easily handle as many as 4 indoor air handlers up to this rated capacity.
MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.
When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-MULTI4-36HP230 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-09-HP-WMAH-230B wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-09-HP-WMAH-230B.
With a rated output of 9,000 BTU, the MRCOOL DIY-09-HP-WMAH-230B wall mounted air handler can generally heat and cool a small room in ideal climates. Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.
MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.
With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.
When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-09-HP-WMAH-230B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-18-HP-WMAH-230B wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-18-HP-WMAH-230B.
With a rated output of 18,000 BTU, the MRCOOL DIY-18-HP-WMAH-230B wall mounted air handler can generally heat and cool an average room in ideal climates. Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.
MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.
With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.
When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-18-HP-WMAH-230B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
| MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser | |
|---|---|
| Weight (in lbs) | 185.000000 |
| Brand/Manufacturer | MRCOOL |
| Cooling BTU | 36,000 BTU |
| Heating BTU | 36,000 BTU |
| Refrigerant | R410A |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini-Split Type | Wall Mounted |
| Height | 31-9/10" |
| Width | 37-1/4" |
| Depth | 16-1/5" |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi | |
| Weight (in lbs) | 23.800000 |
| Brand/Manufacturer | MRCOOL |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Decibel Level (dBA) | 25-40 |
| Refrigerant | R410A |
| SEER (Efficiency) | 22 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230 V. 1 Phase 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 3 |
| Mini-Split Type | Wall Mounted |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
| MRCOOL DIY 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi | |
| Weight (in lbs) | 34.610000 |
| Brand/Manufacturer | MRCOOL |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230 V. 1 Phase 60 Hz |
| Mini-Split Type | Wall Mounted |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
