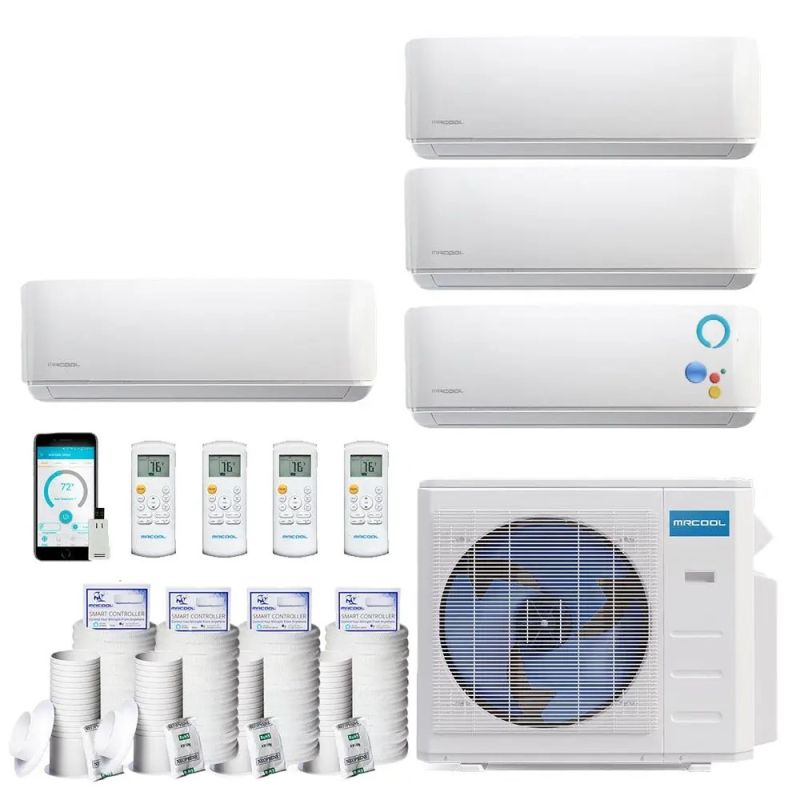

MRCOOL DIY 36,000 BTU 21.5 SEER Quad Zone Heat Pump System 9+9+9+12 - Wall Mounted

By

MRCOOL

In stock

Model

DIYM436HPW01BK1

ID

83477

Rating:
94% of 100
Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Certified

AHRI Number:205572572

Suggested Retail $5,869.04
Your Low Price $4,007.00

Free Shipping

Required Fields *

Customize MRCOOL DIY 36,000 BTU 21.5 SEER Quad Zone Heat Pump System 9+9+9+12 - Wall Mounted
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser   + $2,107.00
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi   + $442.00
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi   + $442.00
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi   + $442.00
MRCOOL DIY 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
MRCOOL DIY 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi   + $574.00
Condenser Risers - 4" x 18" - 2 Pack
DIYM436HPW01BK1

$4,007.00

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-MULTI4-36HP230 condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-MULTI4-36HP230.

Please note that in order to function you must purchase MRCOOL precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 36,000 BTU multi zone DIY heat pump condenser
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Provides efficient heating down to -4°F
  • Provides efficient cooling down to 5°F
  • Energy Star certified
36,000 BTU

With a rated output of 36,000 BTU, the MRCOOL DIY-MULTI4-36HP230 condenser can easily handle as many as 4 indoor air handlers up to this rated capacity.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-MULTI4-36HP230 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-09-HP-WMAH-230C25 wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-09-HP-WMAH-230C25.

FEATURES

  • 9,000 BTU multi zone DIY wall mounted air handler
  • Generally suitable to cover a small room in ideal climates
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Energy Star certified
9,000 BTU

With a rated output of 9,000 BTU, the MRCOOL DIY-09-HP-WMAH-230C25 wall mounted air handler can generally heat and cool a small room in ideal climates.
Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

Intelligent Comfort Whenever You Need It

With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-09-HP-WMAH-230C25 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

MRCOOL DIY 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-12-HP-WMAH-230B wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-12-HP-WMAH-230B.

FEATURES

  • 12,000 BTU multi zone DIY wall mounted air handler
  • Generally suitable to cover a small room in ideal climates
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Energy Star certified
12,000 BTU

With a rated output of 12,000 BTU, the MRCOOL DIY-12-HP-WMAH-230B wall mounted air handler can generally heat and cool a small room in ideal climates.
Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

Intelligent Comfort Whenever You Need It

With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-12-HP-WMAH-230B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Product Specifications

More Information
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser
SKUDIY-MULTI4-36HP230
Weight (in lbs)185.000000
AHRI Certificate Number205572572
Brand/ManufacturerMRCOOL
Product FeaturesQuick Connect
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
RefrigerantR410A
SEER1 (Efficiency)21-22
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size45
Min. Breaker Size30
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Height31-9/10"
Width37-1/4"
Depth16-1/5"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
SKUDIY-09-HP-WMAH-230C25
Weight (in lbs)23.800000
Brand/ManufacturerMRCOOL
Product FeaturesQuick Connect, WiFi
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Decibel Level (dBA)25-40
RefrigerantR410A
SEER1 (Efficiency)22
Liquid Line1/4"
Suction Line1/2"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
SKUDIY-12-HP-WMAH-230C25
Weight (in lbs)23.600000
Brand/ManufacturerMRCOOL
Product FeaturesQuick Connect, WiFi
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size3 Amps
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight (in lbs)41.000000
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Read More +

Reviews 5

Write Your Own Review
You're reviewing:MRCOOL DIY 36,000 BTU 21.5 SEER Quad Zone Heat Pump System 9+9+9+12 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
Is this system the 3rd gen or 4th gen?
Thank you for your question. This MRCOOL DIY system is part of the 3rd Gen MRCOOL DIY series.
