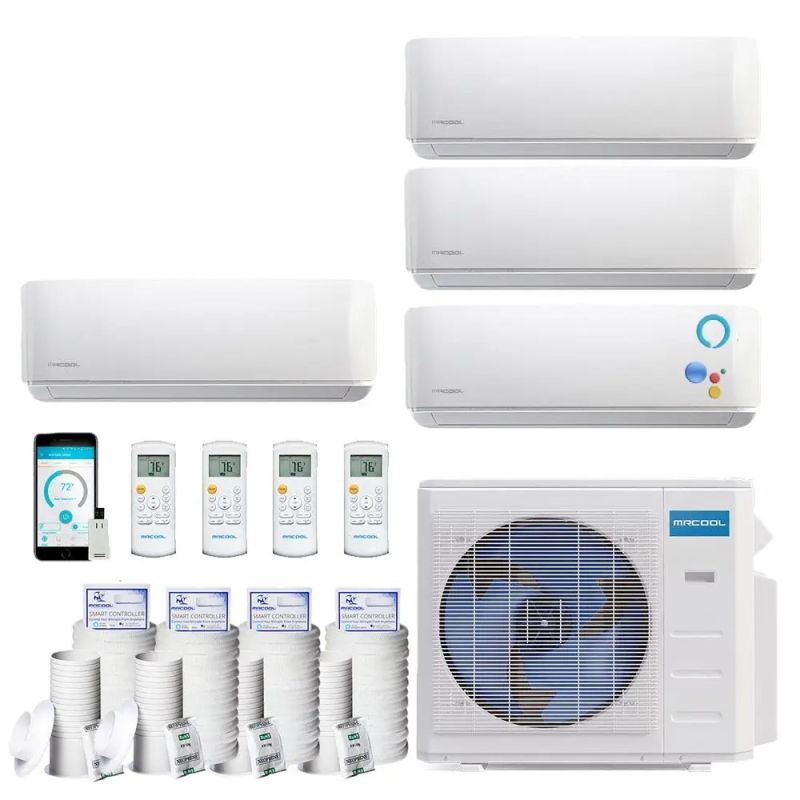

DIY 36,000 BTU 21.5 SEER MRCOOL Quad Zone Heat Pump System 9+9+9+18 - Wall Mounted

By

MRCOOL

In Stock - Ready to Ship
Model

DIYM436HPW03BK1

ID

83478

Rating:
100 % of 100
Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

Your Low Price $4,675.60
Bread Checkout

Free Shipping

Required Fields *

Customize DIY 36,000 BTU 21.5 SEER MRCOOL Quad Zone Heat Pump System 9+9+9+18 - Wall Mounted
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser (In Stock - Ready to Ship)   + $2,753.64 View Item
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser (In Stock - Ready to Ship)   + $2,753.64
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $439.00 View Item
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $439.00
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $439.00 View Item
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $439.00
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $439.00 View Item
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $439.00
MRCOOL DIY 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $604.96 View Item
MRCOOL DIY 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi (In Stock - Ready to Ship)   + $604.96
DIY 36,000 BTU Ductless Heat Pump 4 Zone Wall Mounted 9,000+9,000+9,000+18,000 with 16FT Install Kit 230-Volt/60Hz

$4,675.60

Accessories for this product

Description

MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-MULTI4-36HP230 condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-MULTI4-36HP230.

Please note that in order to function you must purchase MRCOOL precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 36,000 BTU multi zone DIY heat pump condenser
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Provides efficient heating down to -4°F
  • Provides efficient cooling down to 5°F
  • Energy Star certified
36,000 BTU

With a rated output of 36,000 BTU, the MRCOOL DIY-MULTI4-36HP230 condenser can easily handle as many as 4 indoor air handlers up to this rated capacity.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-MULTI4-36HP230 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-09-HP-WMAH-230B wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-09-HP-WMAH-230B.

FEATURES

  • 9,000 BTU multi zone DIY wall mounted air handler
  • Generally suitable to cover a small room in ideal climates
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Energy Star certified
9,000 BTU

With a rated output of 9,000 BTU, the MRCOOL DIY-09-HP-WMAH-230B wall mounted air handler can generally heat and cool a small room in ideal climates.
Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

Intelligent Comfort Whenever You Need It

With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-09-HP-WMAH-230B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

MRCOOL DIY 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi

OVERVIEW

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-18-HP-WMAH-230B wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-18-HP-WMAH-230B.

FEATURES

  • 18,000 BTU multi zone DIY wall mounted air handler
  • Generally suitable to cover an average room in ideal climates
  • Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
  • 100% sealed and pre-charged system when installed with the right accessories
  • Energy Star certified
18,000 BTU

With a rated output of 18,000 BTU, the MRCOOL DIY-18-HP-WMAH-230B wall mounted air handler can generally heat and cool an average room in ideal climates.
Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.

Warranty

MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.

Intelligent Comfort Whenever You Need It

With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.

A DIY Installation Built to Last

When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-18-HP-WMAH-230B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.

Product Specifications

More Information
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser
Weight (in lbs) 185.000000
Manufacturer MRCOOL
Cooling BTU 36,000 BTU
Heating BTU 36,000 BTU
Refrigerant R410A
Electrical 230 V. 1 Phase 60 Hz
Mini-Split Type Wall Mounted
Height 31-9/10"
Width 37-1/4"
Depth 16-1/5"
Warranty 5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Weight (in lbs) 19.180000
Manufacturer MRCOOL
Cooling BTU 9,000 BTU
Heating BTU 9,000 BTU
Refrigerant R410A
Liquid Line 1/4"
Suction Line 1/2"
Electrical 230 V. 1 Phase 60 Hz
Mini-Split Type Wall Mounted
Height 11-7/10"
Width 31-3/5"
Depth 7-1/2"
Warranty 5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
MRCOOL DIY 18,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
Weight (in lbs) 32.000000
Manufacturer MRCOOL
Cooling BTU 18,000 BTU
Heating BTU 18,000 BTU
Refrigerant R410A
Liquid Line 1/4"
Suction Line 1/2"
Electrical 230 V. 1 Phase 60 Hz
Mini-Split Type Wall Mounted
Height 13-1/5"
Width 42-1/2"
Depth 8-9/10"
Warranty 5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING

Reviews 2

Write Your Own Review
You're reviewing:DIY 36,000 BTU 21.5 SEER MRCOOL Quad Zone Heat Pump System 9+9+9+18 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
Where are they manufactured?
MRCOOL is based out of Kentucky however most of their mini-splits are manufactured in China.
Does this system come with pre charged line sets? If so, how long are they?
This system does not include the pre-charged line sets. Under the accessories section on the product page there are 16 foot, 25 foot, and a kit for 50 foot pre-charged line sets depending on what would work best for each of your air handlers. If you have any further questions please feel free to give us a call! Thanks.
