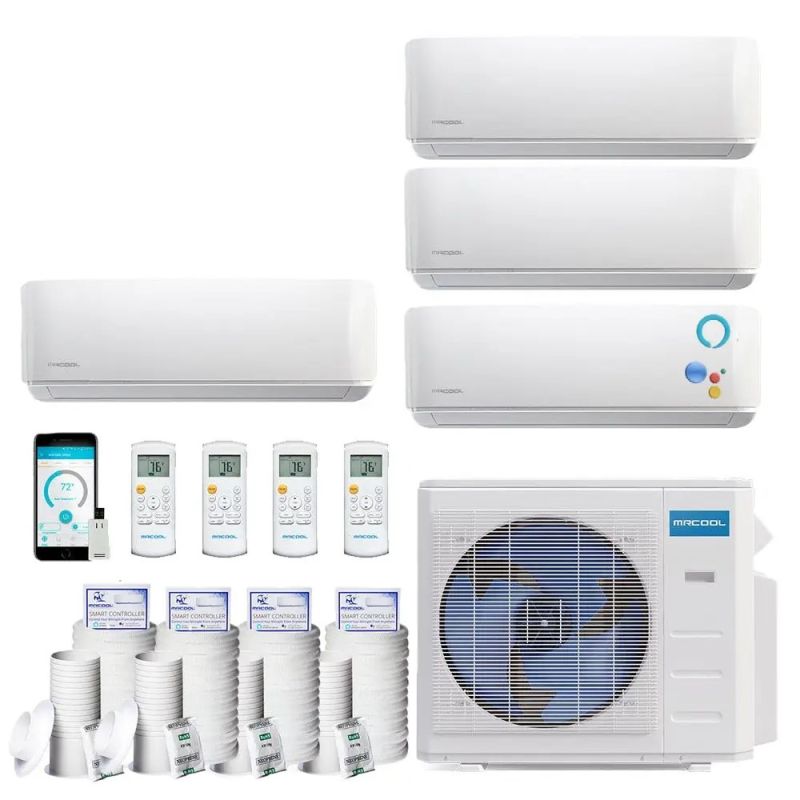

MRCOOL DIY 4th Gen 36,000 BTU 21.5 SEER Quad Zone Heat Pump System 9+9+12+12 - Wall Mounted

By

MRCOOL

Out of stock

Model

DIYM436HPW02BK1

ID

83479

Rating:
92% of 100
Hurry! Limited Stock
MRCOOL

Authorized MRCOOL Dealer

Description

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Product Specifications

More Information
MRCOOL DIY 36,000 BTU Multi-Zone Heat Pump Condenser
SKUDIY-MULTI4-36HP230
Weight185.000000
AHRI Certificate Number205572572
ManufacturerMRCOOL
Product FeaturesQuick Connect
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
RefrigerantR410A
SEER21-22
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size45
Min. Breaker Size30
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Height31-9/10"
Width37-1/4"
Depth16-1/5"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
SKUDIY-09-HP-WMAH-230C25
Weight23.800000
ManufacturerMRCOOL
Product FeaturesQuick Connect, WiFi
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Decibel Level (dBA)25-40
RefrigerantR410A
SEER22
Liquid Line1/4"
Suction Line1/2"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size3
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL DIY 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi
SKUDIY-12-HP-WMAH-230C25
Weight23.600000
ManufacturerMRCOOL
Product FeaturesQuick Connect, WiFi
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size3 Amps
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Height11.69"
Width31.57"
Depth7.44"
Warranty5-year Parts / 7-year Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Read More +

Reviews 6

Write Your Own Review
You're reviewing:MRCOOL DIY 4th Gen 36,000 BTU 21.5 SEER Quad Zone Heat Pump System 9+9+12+12 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
does it come with lines sets?
No, this does not come with line sets. Please check the accessories on this product to find the right line set for this unit.If you have any further questions, please call us and we will be happy to assist you.
