Ductless Mini Split Condensers Electric Component Installation Kit

By

Online Supply

In stock

Model

ICM517 / 83335 / 84132

ID

83573

Rating:
100% of 100
In Stock - Ready to Ship

Authorized Online Supply Dealer

Your Low Price $220.94

Required Fields *

Customize Ductless Mini Split Condensers Electric Component Installation Kit
Surge Protector
Surge Protector   + $148.00
Disconnect Switch
Disconnect Switch   + $43.95
Electric Whip
Electric Whip   + $28.99

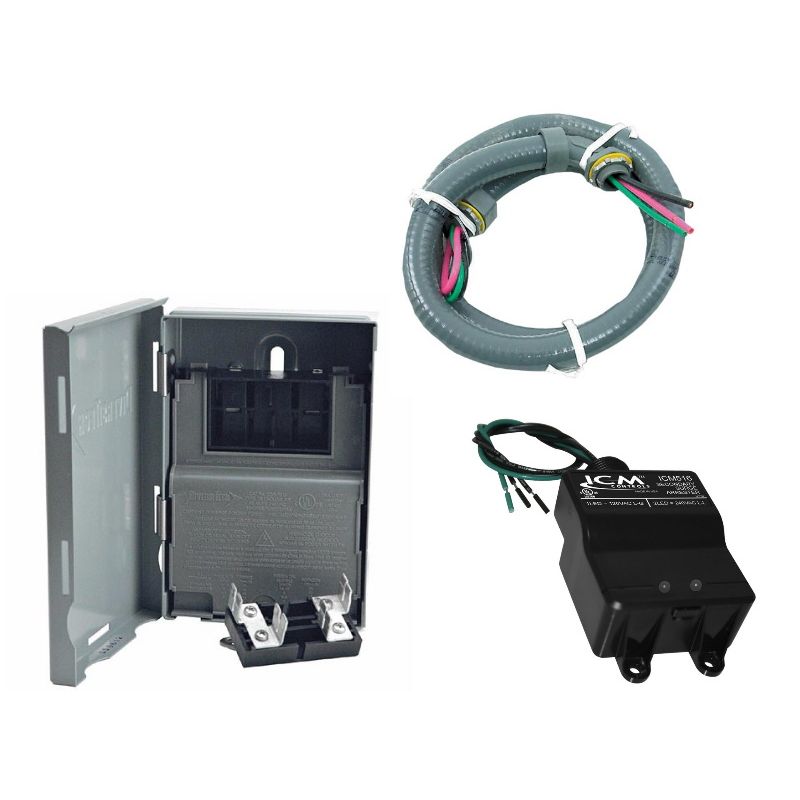

DIY Ductless Mini Split Condensers Installation Kit

$220.94

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

This DIY ductless mini-split installation kit for condensers includes a whip, surge protector, and disconnect safety switch. This installation kit has all of the accessories that you will need to have your DIY mini split condenser professionally installed.

Includes:

  • 1/2" x 4' electrical whip - PN 6-12-6
  • 60A non fused disconnect - PN 83315
  • Surge Protector - PN ICM517

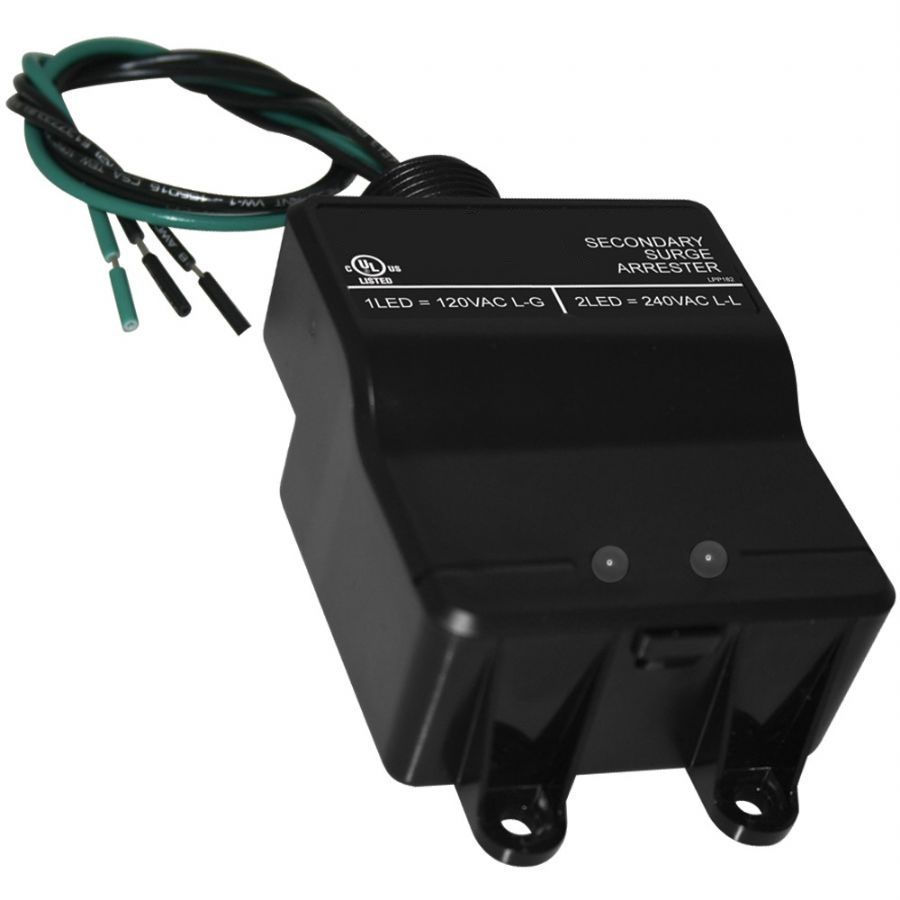

Single-Phase Surge Protector – 120/240 VAC, 100,000 Amp, 1020 Joules

Protect your valuable equipment from lightning power surges and voltage spikes with this high-performance Single-Phase Surge Protector. Designed to provide reliable protection for HVAC systems, air conditioners, motors, and generators, this unit safeguards against damaging electrical surges at 120/240 VAC.

Key Features:

UL Listed, Type II Device: Ensures compliance with industry safety standards.
Easy Installation: Simple and quick to integrate into your system.
High Surge Capacity: Handles up to 100,000 amps for maximum protection.
Superior Energy Dissipation: Absorbs surges up to 1,020 joules.
Versatile Protection: Shields against surges from lightning, A/C units, motors, and generators.
Rugged & Reliable: Built for long-term durability and consistent performance.

Specifications:

  • Service Voltage: 120/240 VAC, Single Phase

  • Maximum Surge Current: 100,000 amps

  • Maximum Energy Dissipation: 1,020 joules

Ideal for residential and commercial HVAC applications, this Single-Phase Surge Protector delivers affordable, high-performance protection to keep your system running safely and efficiently.

Disconnect Switch 60A Non FuseA disconnect switch is used to ensure that an electrical circuit is completely shut off for service or maintenance.

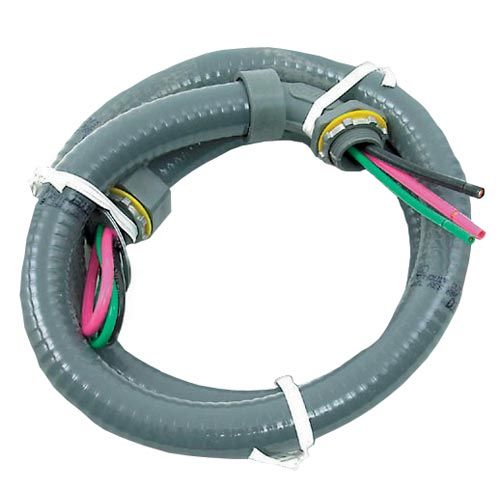

Electrical Whip 1/2" X 4' 10 Gauge Metallic

This 1/2" x 4' 10-Gauge Metallic Electrical Whip is a pre-assembled, ready-to-install solution for powering HVAC units, mini splits, and other outdoor equipment. Built with durable liquid-tight conduit and color-coded THHN/THWN conductors, it provides safe and secure electrical connections in demanding environments.

Key Features:

Heavy-Duty Construction: 10-gauge conductors housed in liquid-tight metallic conduit for rugged protection.
Pre-Assembled for Convenience: Saves time with factory-installed connectors and conductors.
Color-Coded Wires: Includes black, red, and green THHN/THWN conductors for easy identification.
Flexible Connections: Comes with (1) straight and (1) 90-degree non-metallic liquid-tight connector for versatile installation.
Ideal for HVAC Systems: Commonly used to connect condensers, mini splits, and other outdoor electrical equipment.

Specifications:

  • Conduit Size: 1/2" trade size

  • Length: 4 feet

  • Wire Gauge: 10 AWG

  • Conductors: Black, Red, Green (THHN/THWN)

  • Connectors: (1) Straight, (1) 90° Liquid-Tight Non-Metallic

Perfect for professional installers and DIYers alike, this Electrical Whip delivers a safe, flexible, and code-compliant power connection for your HVAC setup.

Product Specifications

More Information
ICM Controls Surge Protector - 120/240 VAC, Single Phase, Max Current 100,000 Amp, Max Energy 1020 Joules
SKUICM517
Weight (in lbs)0.650000
Brand/ManufacturerICM Controls
Size Range38" Wide & Up
Length8.2"
Height3"
Width6.25"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

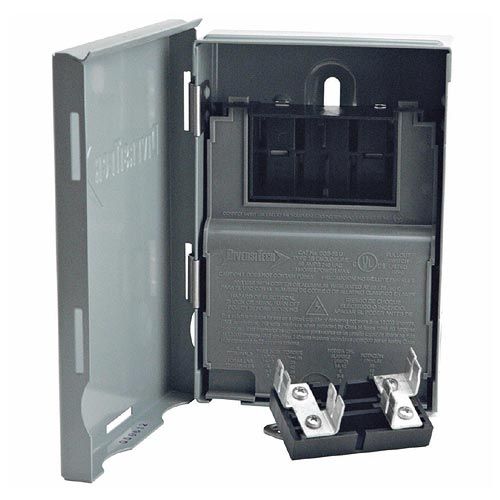

Disconnect Switch 60A Non Fuse
SKU83335
Weight (in lbs)2.500000
Brand/ManufacturerOnline Supply
Additional InformationKnockout Dimensions: 1/2"x3/4"x1"
Length2 3/8"
Height7 1/2"
Width5"
Safety InformationPROPOSITION 65 WARNING
Electrical Whip 1/2" X 4' 10 Gauge Metallic
SKU84132
Weight (in lbs)5.000000
Brand/ManufacturerDiversitech
Length4 Feet
Safety InformationPROPOSITION 65 WARNING
