DuraVent DirectVent Pro 5" x 8" Direct-Vent Pipe Components - 58DVA

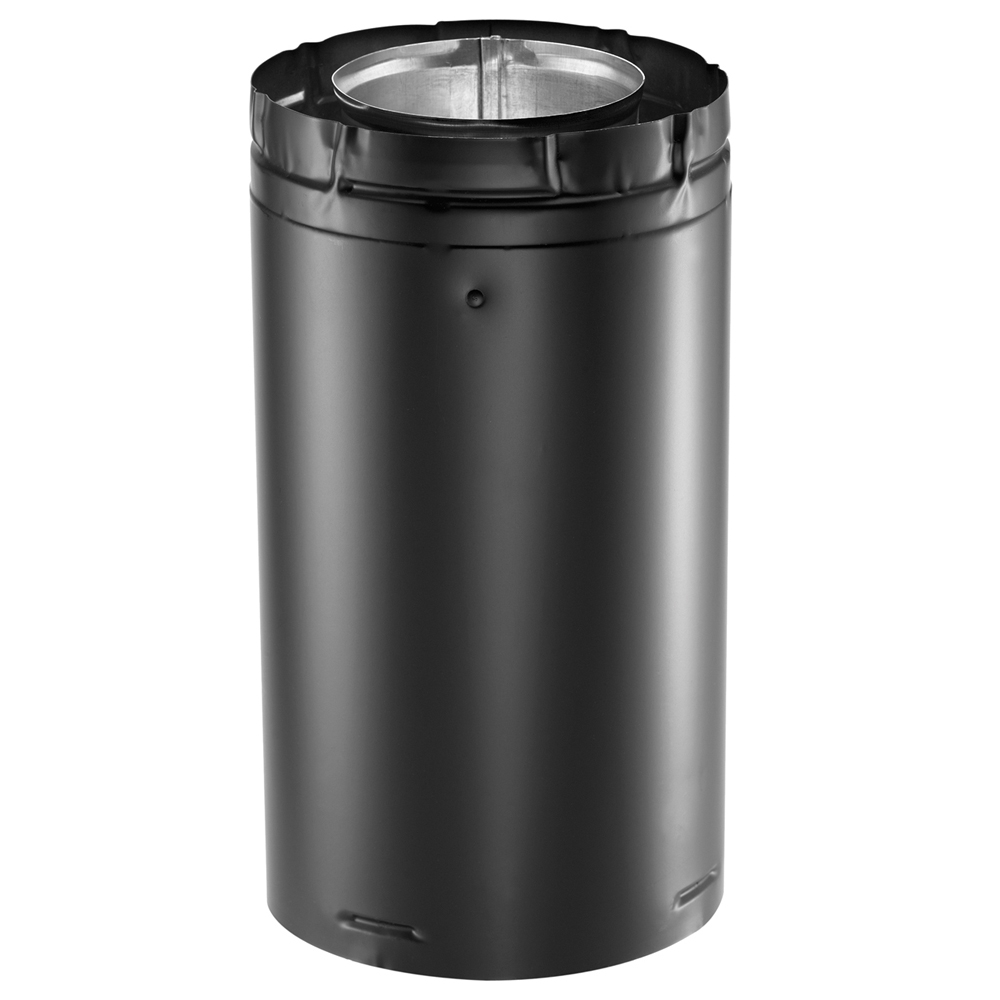

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length, when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Use of sealant is optional, unless specified by the appliance manufacturer. Available in black or galvalume exterior (both feature laser-welded outer wall seams). Does not fit DirectVent GS pipe.

Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length, when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Use of sealant is optional, unless specified by the appliance manufacturer. Available in black or galvalume exterior (both feature laser-welded outer wall seams). Does not fit DirectVent GS pipe.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length, when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Use of sealant is optional, unless specified by the appliance manufacturer. Available in black or galvalume exterior (both feature laser-welded outer wall seams). Does not fit DirectVent GS pipe.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Designed for appliances tested and listed for direct vent. Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate install length, subtract 1 1⁄2” for each joint. No beads or hems. Black pipe lengths feature exterior laser-welded seams.

Use to oset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°.

Use to oset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°.

Use to oset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°.

Use to oset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°.

Use for supporting vent pipe between osets.

Use to pass through ceiling and support pipe. May be used on vaulted or flat ceilings. Painted black. Trim and clamp included.

Use as a decorative cover for horizontal (through-wall) installations or for flat ceiling installations. Fits over the Wall Thimble face plate. Comes with an insulation ring to reduce air infiltration where the pipe slips through the thimble. Painted black.

Required for multi-story vertical installations at the second floor and any subsequent floors. 4”x 6 5⁄8” style may vary.

Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles. Includes base w/tube, extension tube and collar.

Provides a complete wall-pass-through and restop. Use with Square Horizontal Cap only. May be required in Canada. Refer to the appliance manufacturer’s installation instructions for requirements.

For horizontal (through-wall) installations. Refer to the appliance manufacturer’s installation instructions for requirements.

Use to weather proof the penetration of vent pipe through the roof. Storm Collar required. Select roof ashing based on pitch of roof. For pitches of 0/12 - 6/12. Made of galvalume.

Use to weather proof the penetration of vent pipe through the roof. Storm Collar required. For roof pitches of 7⁄12 - 12⁄12. Made of galvalume.

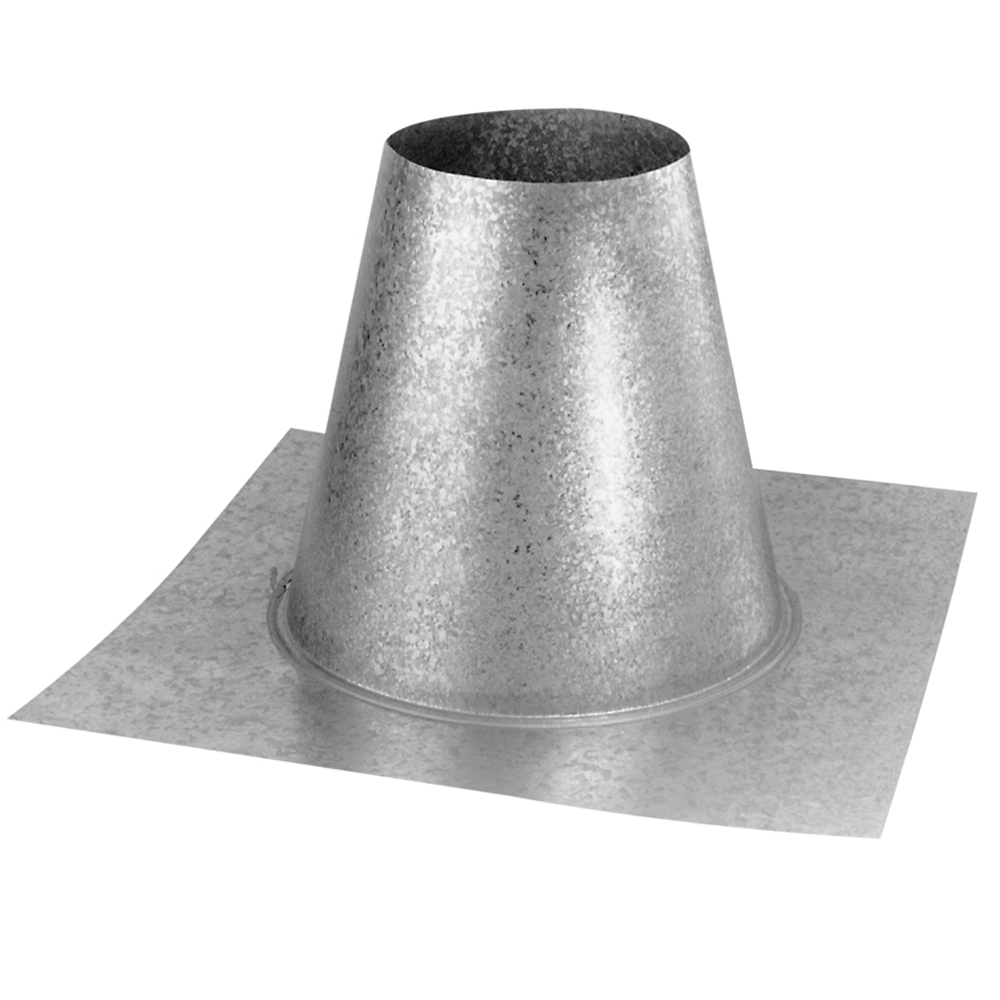

Use to weather proof the penetration of vent pipe through the roof. Storm Collar required. Use on flat roofs, chase enclosures, or masonry chimney. Made of galvalume.

Use with metal or tile roofs. Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Refer to roof ashings tables (previous page) for dimensions.

Use with metal or tile roofs. Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 and 7/12-12/12 styles. Made of malleable dead soft aluminum. Refer to roof ashings tables (previous page) for dimensions.

Use to maintain a weather tight resistant seal between the pipe and the ashing.

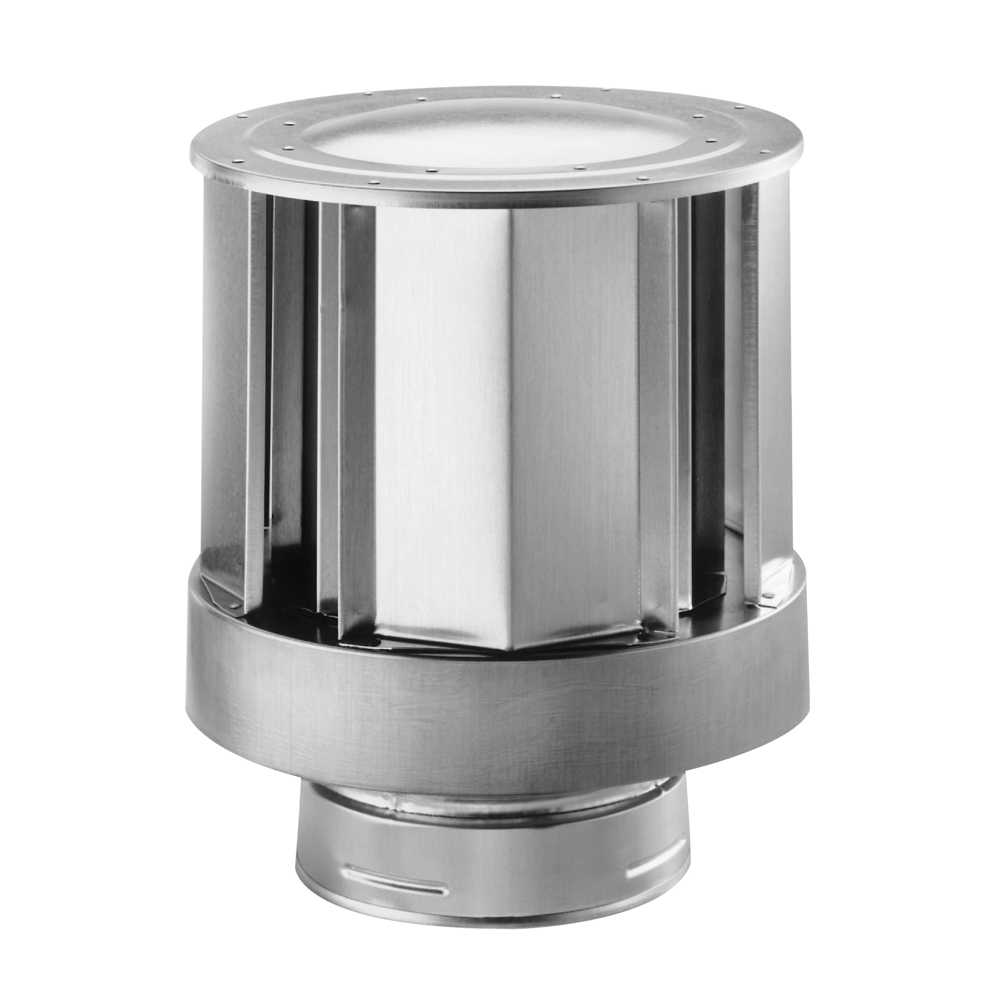

Use for vertical terminations only. Provides improved performance in high wind conditions. For vertical terminations only. Available in aluminum.

Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors. Available in aluminum, stainless steel (S), and copper (C)

Use for horizontal through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors. Available in aluminum, stainless steel (S), and copper (C). Check with appliance manufacturer for approval. Patented.

Use for horizontal through-the-wall termination. Provides improved performance in high wind conditions. Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors. Available in aluminum, stainless steel (S), and copper (C). Check with appliance manufacturer for approval. Patented. Includes heat deector that may be required by appliance manufacturer

Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length, when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Use of sealant is optional, unless specified by the appliance manufacturer. Available in black or galvalume exterior (both feature laser-welded outer wall seams). Does not fit DirectVent GS pipe.
