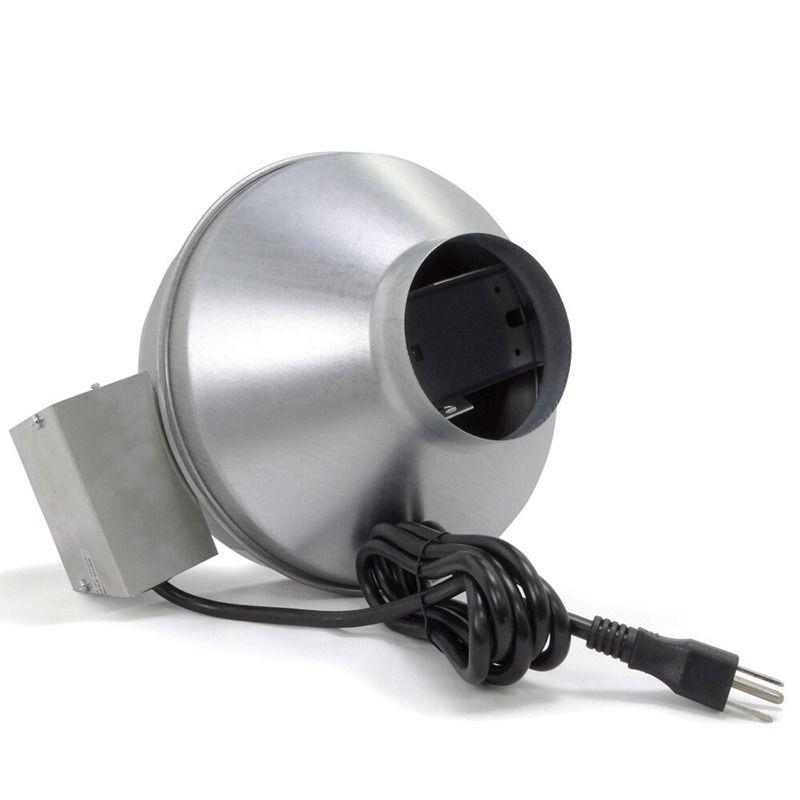

Fantech DBF 4XLT Dryer Exhaust Fan 173 CFM Single Phase - DBF 4XLT

• 173 CFM
• Single Phase
• 2559 RPM
• Max. temperature of transported air 140 °F
• Insulation class B
• Enclosure class, motor IP44
• Avoid using rigid PVC pipes or flexible ducts. Use only steel or aluminium ducts rated for dryer use. These ducts have smooth walls, so lint is less likely to build up.
• If you are running your dryer duct through an unconditioned space, make sure you wrap it in insulation. If the duct stays warm, it will be less likely to form condensation and collect lint.
• To avoid clogging lint over the exhaust fan impeller, install a secondary lint trap DBLT 4W. It filters the air, catches the lint and protects the fan and ductwork. The less lint accumulation, the better your dryer performs.

DBF 4XLT is a dryer exhaust fan. It helps your dryer run efficiently while removing the warm and moist air from the dryer duct.

The fan should be added in the dryer duct run when the length of the run exceeds 40 feet with no bends, 35 feet with one bend or 30 feet with two bends. The fan can be used to effectively maintain dryer exhaust in duct runs up to 130 linear feet.

The DBF 4XLT features a pressure switch that automatically activates the exhaust fan once the dryer is on; the wall-mounted indicator panel with a 50 ft cable that indicates proper operation of the exhaust fan. In the event of a problem, the LED light will inform the homeowner of the nature of the problem. The mounting clamp eases the installation of the fan on the ductwork. The fan is equipped with a 5 feet cord with a plug for 120V/1~ power supply.

Performance certified by HVI; safety certified by ETL to UL507.
