A centrifugal type exhaust/supply fan specifically designed for moderate size entilation applications. The fan can be mounted at any angle at any point along with the ductwork and straight-through airflow design allows easy installation. By using FC type mounting clamps, the fan can be easily removed from ductwork for service. Fans are constructed in accordance with standard dimensions for spiral duct eliminating the need for transition pieces. Fan motors are capable of operating in airstream temperatures up to 140o F. Motor bearings are a permanently sealed, self-lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using 0..10V potentiometer. All FG EC Series fans are backed by Fantech’s Five Year Warranty.

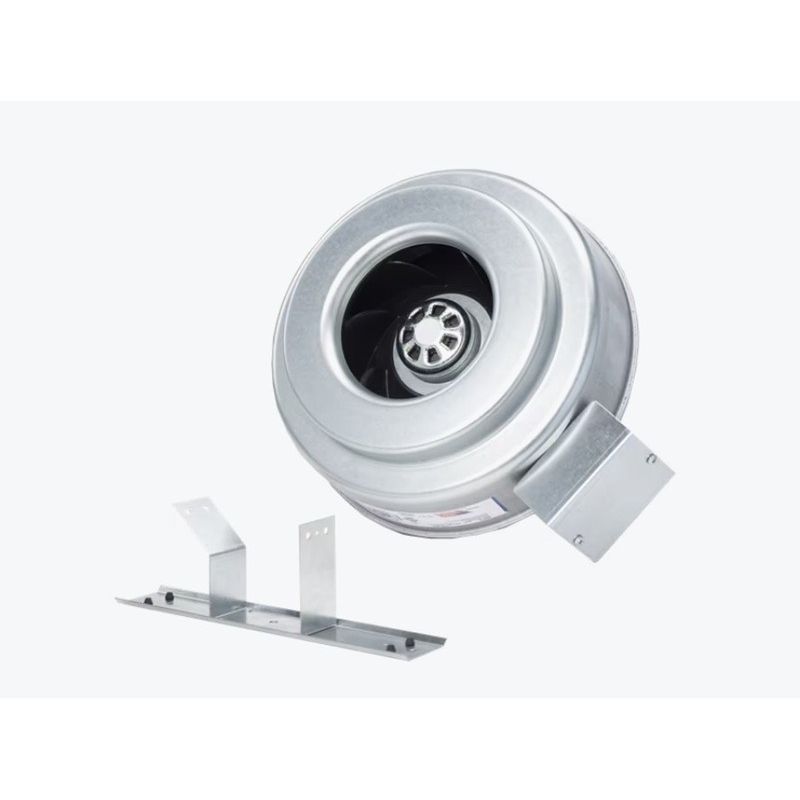

Fantech FG 10 EC Centrifugal Inline Fan 511 CFM Single Phase - FG10 EC | |
---|---|
SKU | FG10 EC |
Weight (in lbs) | 11.000000 |
Brand/Manufacturer | Fantech |
Drive Type | Direct |
Maximum CFM | 511 |
Motor RPM | 2311 |
Watt | 93.4 |
Electrical | 120/240 V, 1 Phase |
Amperage Requirement | .65 |
Certification | HVI, ETL |
Duct Diameter | 10" |
Height | 12" |
Width | 17" |
Depth | 17" |
Warranty | 5 Year |
