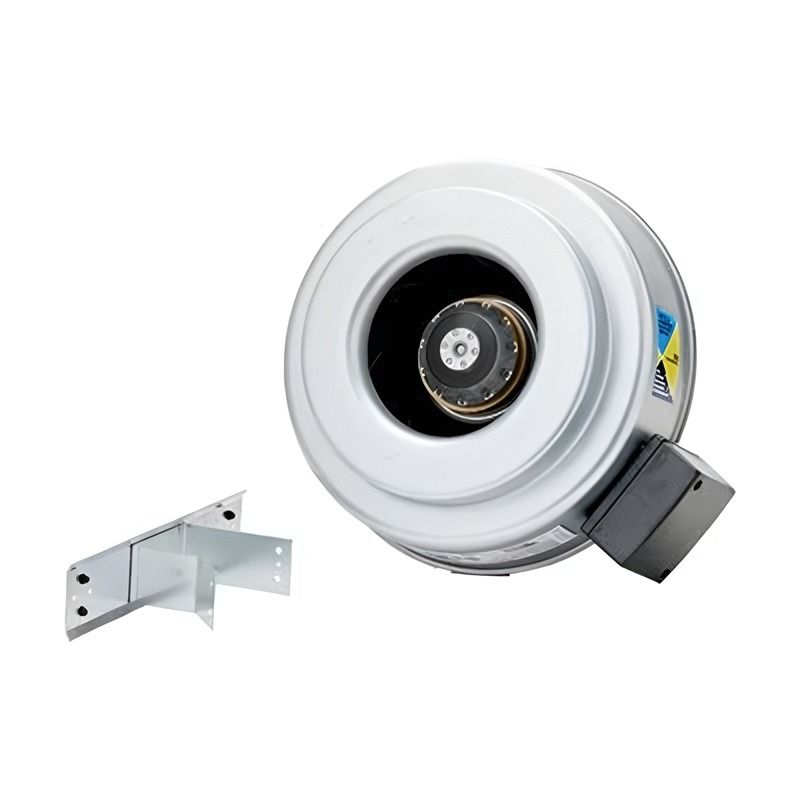

Today's Hours 8am - 11pm estFantech 10" Centrifugal Inline Fan FG Series 513 CFM Single Phase
ONLY 4 LEFT!
By
Fantech
In stock
Model
FG 10
ID
36570
Was $591.00 Your Low Price Special Price $386.00
Product Features
- Durable galvanized housing for quiet airflow
- Ideal for exhaust or supply use
- With built-in thermal overload protection
- Easy, flexible installation with included hardware
OVERVIEW
The housing is manufactured from a two-piece stamped galvanized construction. The two halves are joined using Fantech’s unique folded seam closure, which gives the fan the first in class, air-tight seal. Duct-connected outdoor and wet room applications of the fan are possible due to the air-tight casing.
FG fans are equipped with backward-curved impeller blades and external rotor motors. With the motor in the airstream, the fan provides the constant dissipation of heat buildup, thus giving the fan first in a class of longevity and reliability. To protect the motor from overheating, the fan is impedance-protected. The fans can be controlled via a solid-state speed controller.
Key Features
- Airtight galvanized steel housing with folded seam design for minimal leakage
- External rotor motor ensures efficient heat dissipation and reliable performance
- Permanently lubricated sealed ball bearings for long-lasting, maintenance-free operation
- Built-in automatic reset thermal overload protection for safety and durability
- Rated for duct airstreams up to 140°F
- Fully speed controllable using solid state or transformer-based controls
- Can be installed at any angle or orientation within the duct system
- Suitable for outdoor or covered installations with materials built for lasting performance
Warranty Information
The Fantech FG Series Inline Duct Fans come with a 5-year limited warranty against defects in materials and workmanship. Fantech will repair or replace defective parts or products after verifying a valid claim.
Warranty Conditions- Proof of purchase is required for all warranty claims.
- Customers must obtain a Return Material Authorization (RMA) before returning any product.
- Returned items must be shipped prepaid and properly labeled with the RMA number.
- Improper installation, wiring, or unauthorized repairs void the warranty.
- Damage from misuse, abuse, or external factors such as accidents or weather is not covered.
- Products with removed or altered serial labels are not eligible for warranty service.
Durable Construction & Smart Design
The Fantech FG Series Inline Duct Fans are engineered for long-lasting reliability and efficient airflow performance. Each unit features a galvanized steel housing with a precision folded-seam design that creates an almost airtight seal, reducing air leakage and improving overall efficiency. At the core of each FG fan is a high-quality ebm-Papst external rotor motor designed to keep heat away from critical components, ensuring smooth and dependable operation even at lower speeds. The sealed ball bearings allow for maintenance-free performance, while the built-in thermal overload protection helps prevent motor damage from overheating. With a temperature rating of up to 140°F (60°C), the FG Series is ideal for a wide range of residential, commercial, and light industrial applications. The rugged housing construction and efficient motor design work together to maintain consistent performance and extend service life, even in challenging duct systems.
Suitable Applications for Fantech FG Inline duct fans
- Bathrooms & Kitchens: Removes humidity, odors, and heat for better air quality and comfort.
- Commercial Restrooms: Ensures continuous ventilation and odor control in high-use areas.
- HVAC Systems: Boosts airflow and balances air distribution in small to medium systems.
- Laboratories (Non-Corrosive): Safely vents mild fumes and general lab air to maintain clean airflow.
- Light Commercial Spaces: Clears dust, smoke, and odors in workshops and storage areas.
- Grow Rooms & Greenhouses: Promotes healthy airflow and temperature control for plants.
- Utility & Equipment Rooms: Provides steady ventilation to prevent heat buildup in enclosed areas.
