Fantech FIT 120E-D-HC Low Profile Energy Recovery Ventilator (ERV), 127 CFM | Shut-Off Damper, Hardwired

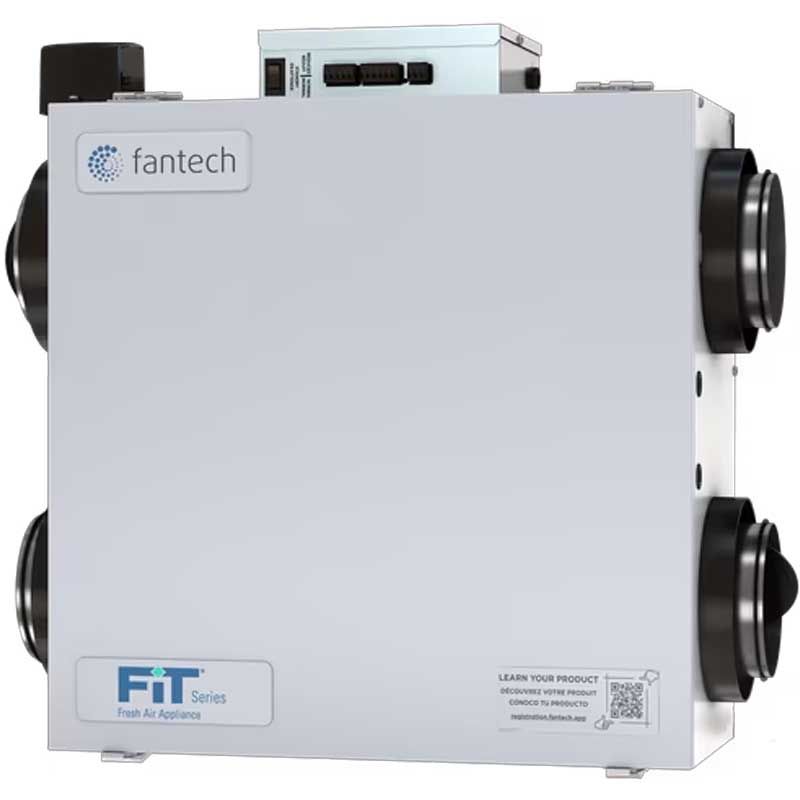

Fantech FIT 120E-D-HC Energy Recovery Ventilator (ERV)

The Fantech FIT 120E-D-HC is a compact, high-performance energy recovery ventilator designed for mirrored multi-family layouts. With a built-in shut-off damper and drain-free operation, it delivers up to 127 CFM of fresh, filtered air while preventing backdrafts and conserving energy. Ideal for ceiling or wall installations, this unit improves indoor air quality efficiently, perfect for tight spaces and energy-conscious residential applications.

Key Features

• Energy Recovery Core: Features a polymeric transfer media that enables water vapor transport, is freeze tolerant, and can be washed with water.
• Frost Prevention Mechanism: Automatically activates when outdoor temperatures reach 14°F or lower to protect the system and resume normal operation afterward.
• Drain-Free Design: No need for a drain—moisture is transferred from incoming to outgoing air during circulation.
• Customizable Airflow Control: Offers multi-speed airflow from 40 to 129 CFM, adjustable via the external electrical box or an optional wall control.
• Included Air Filters: Comes with two washable UL900-certified electrostatic panel filters and a MERV-3 filter, with an optional MERV-8 upgrade.
• Secure Duct Connections: 5-inch side port metal collars with rubber gaskets ensure tight, leak-free duct integration.
• Optional Shut-Off Damper: Select models include a mechanical damper to prevent backdraft during standby or defrost mode.
• Compact Design: Slim profile ideal for condos or apartments with limited mechanical space; fits easily above a drop ceiling.

Warranty Information

Fantech® ERVs are backed by a limited warranty: 7 years on the motor and 5 years on electrical components and the ERV core. Fantech will repair or replace defective components at its option, excluding removal, reinstallation, and transportation costs. Warranty applies only to the original purchaser and installation location.

Excludes normal wear, routine maintenance, filters, cosmetic damage, improper installation, misuse, or products with altered/missing serial numbers. Rights may vary by state or province.

---

Why Choose Fantech® ERVs?

Efficient Energy Recovery

• Transfers heat and moisture between incoming and outgoing air for lower energy costs
• Maintains consistent indoor humidity and temperature levels
• Compact design fits tight mechanical spaces

Versatile Installation

• Multiple port options: side, top, mirrored, and dampered configurations
• Flexible wiring: hardwired or plug-in power cord
• Suitable for wall, ceiling, or horizontal orientation

Durable & Reliable

• High-quality construction for long-term reliability
• Rugged design for residential and light commercial applications
• Optional EC motors for higher efficiency and quieter operation
