A mixed flow centrifugal type exhaust/supply fan for moderate size ventilation applications specifically designed to bridge the transition from centrifugal to axial. FKD Series fans offer substantially quieter performance and are easier to install than axial arrangements. Fans can be mounted at any angle at any point along with the ductwork and straight-through airflow design allows easy installation. Fans can be easily removed from ductwork for service. Fan motors are capable of operating in airstream temperatures of 140o F. Motor bearings are a permanently sealed, self-lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid-state or transformer type control. All FKD Series fans are backed by Fantech’s Three Year Warranty.

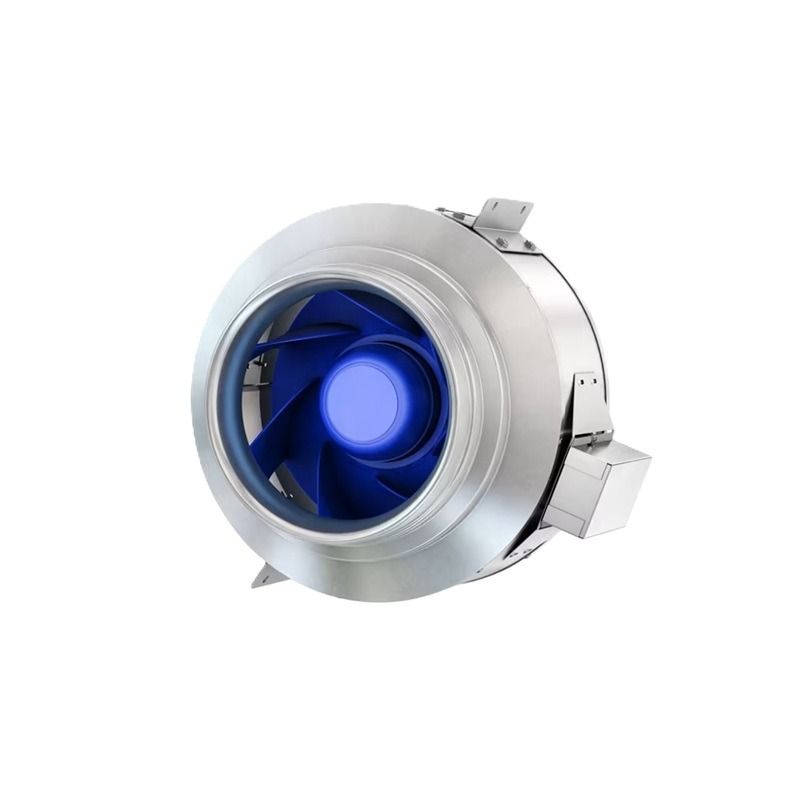

| Fantech FKD 12 Mixed Flow Fan 1305 CFM Single Phase - FKD 12 | |
|---|---|
| SKU | FKD 12 |
| Weight (in lbs) | 24.000000 |
| Brand/Manufacturer | Fantech |
| Drive Type | Direct |
| Maximum CFM | 1305 |
| Motor RPM | 2944 |
| Watt | 484 |
| Electrical | 120/240 V, Single Phase |
| Amperage Requirement | 4.86 |
| Certification | AMCA Air, AMCA Sound, cULus |
| Height | 16" |
| Width | 17" |
| Depth | 17" |
| Warranty | 3 Year |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
