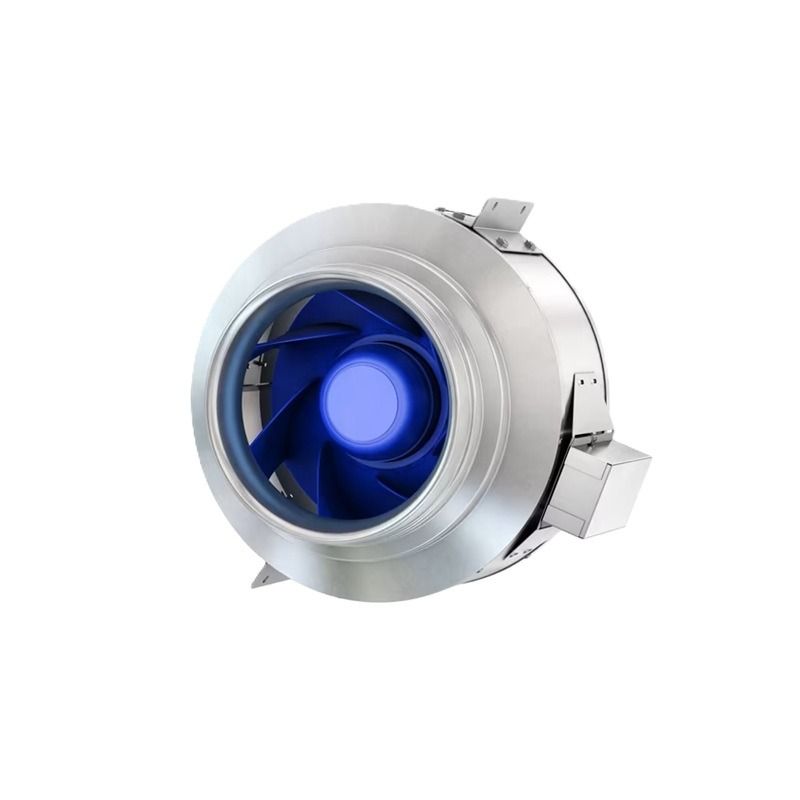

Fantech FKD 20 Mixed Flow Fan 6306 CFM Three Phase - FKD 20 - 230/460

By

Fantech

Model

FKD 20 - 230/460

ID

36687

Availability: Ships in 3-4 Weeks

Authorized Fantech Dealer

Suggested Retail $3,425.00 Your Low Price Special Price $3,105.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features
  • 6306 CFM
  • Three Phase
  • 1693 RPM
  • Max temperature of transported air 104 °F
  • Insulation class F
  • Enclosure class, motor IP54
  • Mixed-flow impeller
  • 100% Speed-controllable
  • Integral thermal contacts
  • Air stream temperatures up to 140 °F

A mixed-flow centrifugal type exhaust/supply fan for moderate size ventilation applications specifically designed to bridge the transition from centrifugal to axial. FKD Series fans offer substantially quieter performance and are easier to install than axial arrangements. Fans can be mounted at any angle at any point along with the ductwork and straight-through airflow design allows easy installation. Fans can be easily removed from duct work for service. Fan motors are capable of operating in airstream temperatures of 140o F. Motor bearings are a permanently sealed, self-lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid-state or transformer type control. All FKD Series fans are backed by Fantech’s Three Year Warranty.

Product Specifications

More Information
Fantech FKD 20 Mixed Flow Fan 6306 CFM Three Phase - FKD 20 - 230/460
SKUFKD 20 - 230/460
Weight (in lbs)109.000000
Brand/ManufacturerFantech
Drive TypeDirect
Maximum CFM6306
Motor RPM1693
Watt2443
Electrical208 - 230 / 460 V, 3 Phase
Amperage Requirement1.36
CertificationAMCA Air, AMCA Sound, cULus
Height27"
Width28"
Depth30"
Warranty3 Year
Resources
Safety InformationPROPOSITION 65 WARNING
