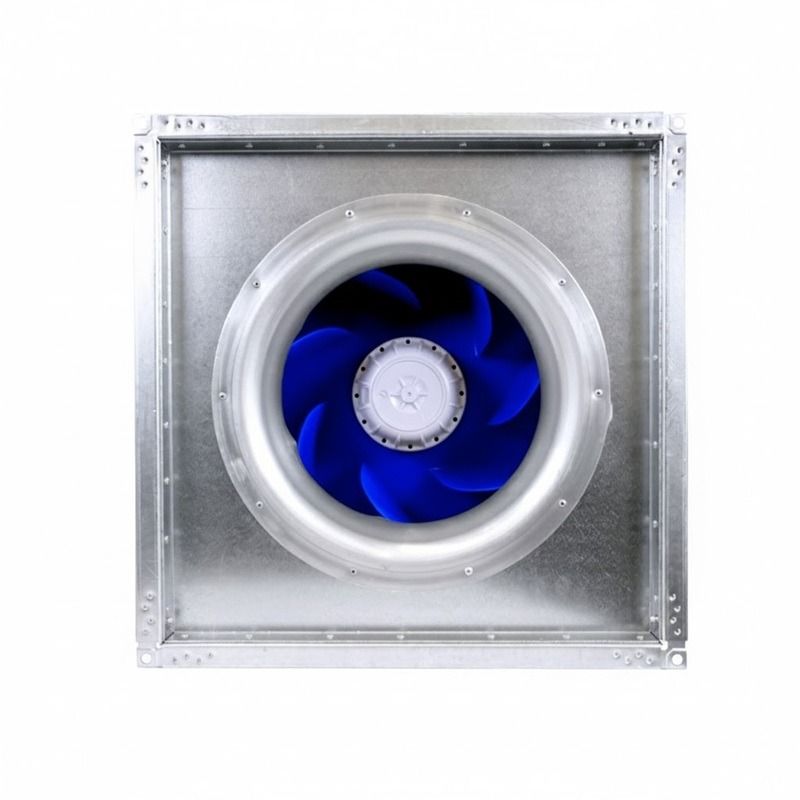

Fantech FSD 26 Square Inline Fan 7170 CFM Three Phase - FSD 26




FSD 26



Availability: Ships in 3-4 Weeks

Authorized Fantech Dealer

Suggested Retail $4,015.00 Your Low Price Special Price $3,299.00
Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing


  • 7170 CFM
  • Three Phase
  • 1709 RPM
  • Max temperature of transported air 140 °F
  • Insulation class F
  • Enclosure class, motor IP54
  • Capacitor 50 µF

The FSD series may be used for supply, exhaust, or ducted air movement where relatively high air flow rates against moderate static pressure is desired. The square design provides a larger cross-sectional discharge area than tubular centrifugal or vane axial fans, so outlet velocities are reduced for quieter operation

The motorized impeller is both statically and dynamically balanced as one integral unit, for vibration-free, quiet performance. Motor bearings are a permanently sealed, self-lubricating ball type.

One phase (1~) models are equipped with thermal overload protection with automatic reset. These models can be speed-controlled via a stepless thyristor. Three-phase (3~) models require an external contactor.

Product Specifications

More Information
Fantech FSD 26 Square Inline Fan 7170 CFM Three Phase - FSD 26
Weight (in lbs) 134.000000
Brand/Manufacturer Fantech
Drive Type Direct
Maximum CFM 7170
Motor RPM 1709
Watt 1953
Electrical 208 - 230 / 460 V, 3 Phase
Amperage Requirement 4
Certification AMCA
Height 24'
Width 35"
Depth 35"
Warranty 3 Year
Safety Information PROPOSITION 65 WARNING
