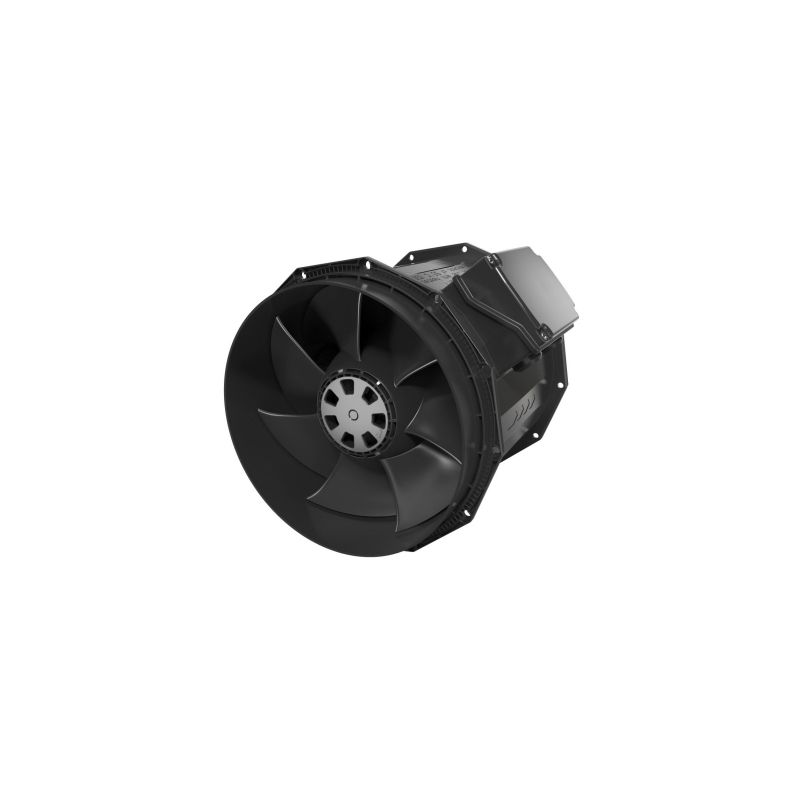

Fantech prioAir® 10" EC Inline Duct Fan 1237 CFM Single Phase

Fantech prioAir® 10" EC Inline Duct Fan 1237 CFM Single Phase

Be the first to review this product

Out of stock

Fantech

Out of stock

Model

prioAir 10 EC

36754

4 Questions Answered

Description

Features

1237 CFM
Single Phase
2629 RPM
Max temperature of transported air 131 °F
Insulation class B
Enclosure class, motor IP44

The prioAir series is designed for installation in ducts. Extremely efficient, prioAir fans are perfect for a wide assortment of powerful, quiet air-moving applications.

Compact size, low noise, very high efficiency, and airtight casing. Aerodynamically optimized impellers and guide vanes with integrated external rotor motors. Includes a mounting bracket. The special composite material is corrosion-proof and lightweight./p>

The prioAir EC fan motor's speed is controlled via a 0-10Vdc signal. The motor provides a +10V reference that can be used by a remotely-mounted potentiometer (such as MTP 10). The motor can also be controlled by an externally-provided 0-10Vdc signal that can come from any device or a Building Management System (BMS). The fan's motor also provides operational speed (tachometer pulse) output that can be used to verify fan operation. These control features allow the prioAir EC to be integrated into and play an active role in smart HVAC systems in buildings.

Thermal overload protection with automatic reset.

Product Specs

More Information
Fantech prioAir® 10" EC Inline Duct Fan 1237 CFM Single Phase
Feature	Spec
SKU	prioAir 10 EC
Weight (in lbs)	10
Brand/Manufacturer	Fantech
UPC	650737560683
Drive Type	Direct
Maximum CFM	1237
Motor RPM	2629
Watt	164
Amperage Requirement	2.11
Certification	AMCA , UL
Duct Diameter	10"
Height	15"
Width	13"
Depth	13"
Warranty	5 Year
Resources	Fantech prioAirÂ® 10 EC Inline Duct Fan Manual Fantech prioAirÂ® 10 EC Inline Duct Fan Specification Fantech Warranty
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Can I install the fan in a drop ceiling or hidden space?

Yes, you can. The prioAir is compact and quiet, making it a great choice for ceiling or wall cavities where space is limited.

Can the prioAir fan work for both exhaust and supply air?

Yes, it can. You can use it to pull stale air out or push fresh air in, depending on how your duct system is set up.

Can I mount the prioAir fan in any direction?

Yes, you can install it horizontally, vertically, or at an angle. It’s designed to perform well in any position, giving you flexibility during installation.

My duct run is very long with several elbows, can prioAir still work well?

Yes, it will, but longer ducts and multiple turns can reduce airflow. Choosing a larger or more powerful model can help maintain strong performance, and keeping your ducts as straight as possible will improve efficiency.
