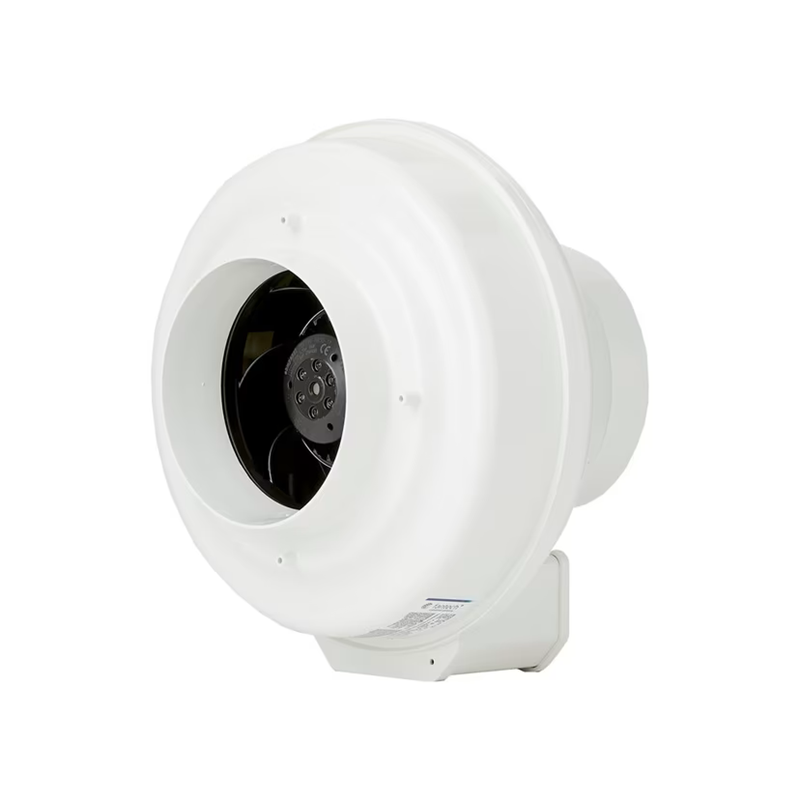

Fantech Rn3 Inline Radon Fan 377 CFM Single Phase - Rn3

By

Fantech

In stock
Model

Rn3

ID

36807

Ships in 5-7 Business Days
$219.50
Product Feat ures
  • Efficiently operate at airstream temperatures up to 140°F
  • Designed specifically for Active Soil Depressurization (ASD) mitigation applications
  • Made from UV resistant, Air-tight plastic housing
  • UL Listed for safety and outdoor use
Features
  • 377 CFM
  • Single Phase
  • 2782 RPM
  • Max temperature of transported air 140 °F
  • Insulation class B
  • Enclosure class, motor IP44
  • Use for Medium Suction, High Airflow applications
  • UV resistant, UL Listed durable plastic
  • UL Listed for use in commercial applications
  • Watertight electrical terminal box
  • Totally enclosed for protection
  • Automatic reset thermal overload protection
  • Zero leakage

Active radon mitigation systems employ specialized fans to exhaust radioactive radon gas from underneath building structures via a sealed pipe system. These systems are designed to remove radon gas before it migrates into the building envelope.

The Rn3 model is an excellent choice for systems with elevated radon levels, poor communication, multiple suction points and/or large sub-slab footprint. High airflow, medium suction.

The fan features a fully sealed plastic housing. The inlet and outlet pieces of the housing are joined via a vibration welding process. The process uses transverse, reciprocating motion under pressure at the point of contact. The friction produces heat that melts the thermoplastic material at the interface. The melted material quickly re-solidifies, resulting in a fused, single-piece housing. The fused seam is inherently air tight, very strong and permanent.

This air-tight product ensures that efficiency is not lost and contaminants are not spilled due to leakage.

A large electrical wiring enclosure is designed into the fan housing, making electrical installation easier. Thermal overload protected with automatic reset.

The fan can be mounted both indoor, outdoor and in wet locations.

Performance certified by HVI; safety certified by UL.

To simplify installation, use FRIK 6x3 or FRIK 6x4 Installation kits

More Information
Fantech Rn3 Inline Radon Fan 377 CFM Single Phase - Rn3
SKURn3
Weight (in lbs)6.000000
Brand/ManufacturerFantech
Drive TypeDirect
Maximum CFM377
Motor RPM2782
Watt141
Electrical120/240 V, 1 Phase
Amperage Requirement1.2
CertificationHVI, UL
Duct Diameter6"
Height11"
Width13"
Depth13"
Warranty5 Year
