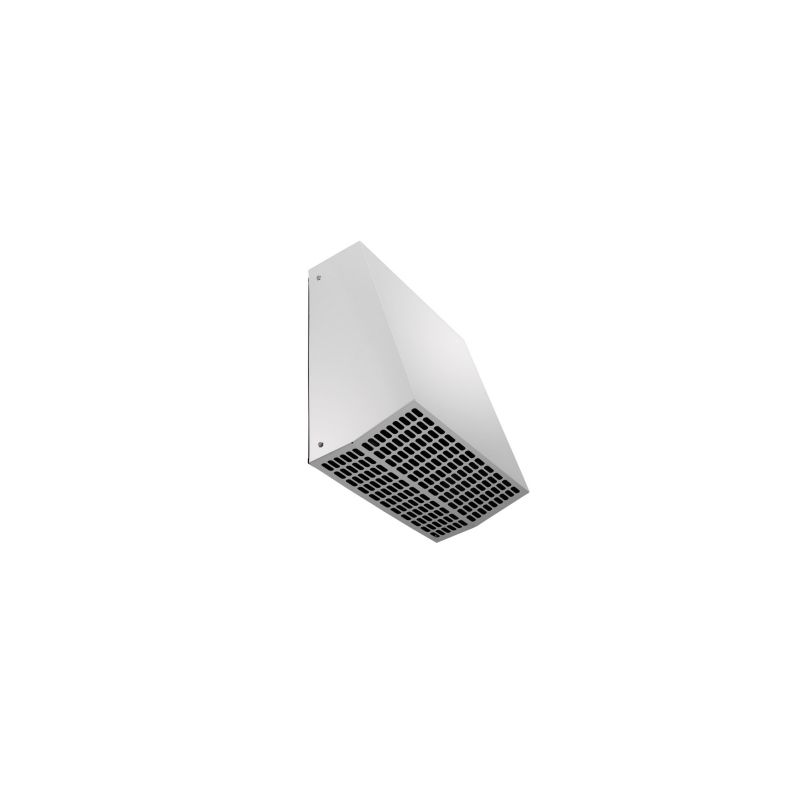

Fantech RVF 10XL Exterior Centrifugal Fan 1248 CFM Single Phase - RVF 10XL

By

Fantech

Model

RVF 10XL

ID

36762

Availability: Discontinued

Authorized Fantech Dealer

Suggested Retail $895.00 Your Low Price Special Price $635.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features
  • 1248 CFM
  • Single Phase
  • 1526 RPM
  • Max temperature of transported air 104 °F
  • Insulation class B
  • Enclosure class, motor IP44
  • Galvanized steel housing features powder-coat finish
  • External rotor motor with totally enclosed design allows fans to operate in high moisture, lint, and dust-laden air
  • Permanent split capacitor motors feature automatic reset thermal overload protection and sealed ball bearings for long life and maintenance-free operation
  • All motors and impellers are designed as one integral unit, allowing for excellent motor heat dissipation, even at low RPM Permanently lubricated sealed ball bearings
  • Five-year factory warranty
  • HVI certified, cSAus, cULus

The RVF models are exhaust-air fans for installation on external walls. The unit consists of an impeller with backward-curved blades and a casing in galvanized sheet steel with a white powder-paint coating. When installed on an exterior wall, all ambient noise is kept outside.

These fans are lightweight, compact, and simple to install. No installation extras are required. Just mount the fan to the wall and connect the electrical supply to the conveniently located terminal box. The housing is removable for immediate access to the motor and wiring connections.

The RVF Series is an exterior, wall-mount exhaust fan. These models are commonly used for remotely located exhaust for bathrooms, kitchens, utility rooms, and numerous applications where installation convenience and quiet nature of a remotely-mounted fan are desirable.

The RVF model includes an impeller with backward-curved blades and galvanized sheet metal housing with a white powder-paint coating. When installed on an exterior wall, all ambient noise is kept outside. These fans are lightweight, compact, and simple to install. The housing is removable for immediate access to the motor and wiring connections.

Product Specifications

More Information
Fantech RVF 10XL Exterior Centrifugal Fan 1248 CFM Single Phase - RVF 10XL
SKURVF 10XL
Weight (in lbs)36.000000
Brand/ManufacturerFantech
Drive TypeDirect
Maximum CFM1248
Motor RPM1526
Watt309
Electrical120/240 V, 1 Phase
Amperage Requirement2.59
CertificationHVI,UL
Height14"
Width20"
Depth24"
Warranty5 Year
