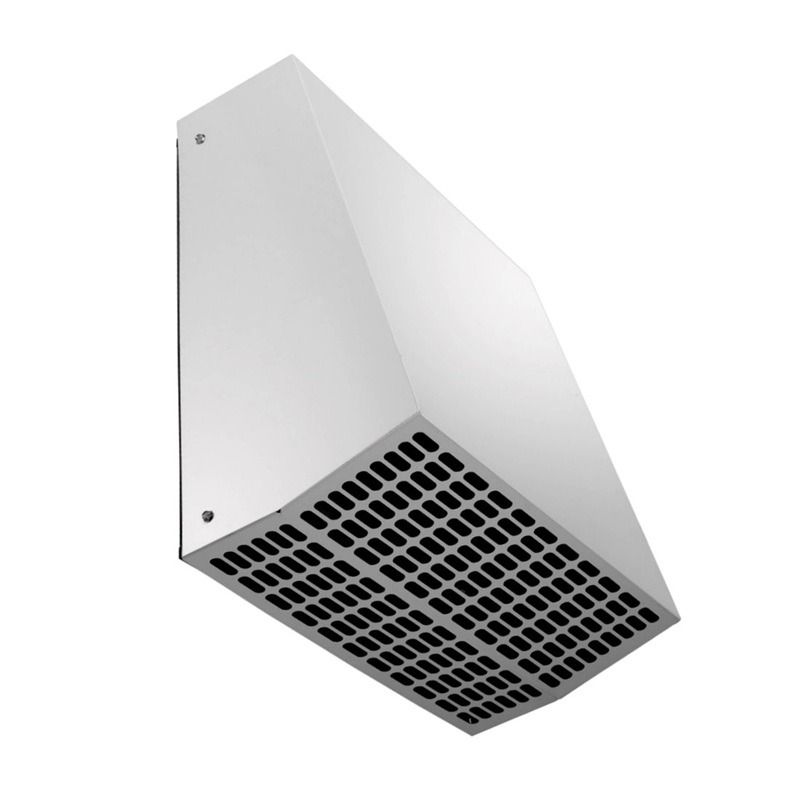

The RVF Series is an exterior, wall-mount exhaust fan. These models are commonly used for the remotely located exhaust for bathrooms, kitchens, utility rooms, and numerous applications where installation convenience and quiet nature of a remotely-mounted fan are desirable.
The RVF model includes an impeller with backward-curved blades and galvanized sheet metal housing with a white powder-paint coating. When installed on an exterior wall, all ambient noise is kept outside. These fans are lightweight, compact, and simple to install. The housing is removable for immediate access to the motor and wiring connections.
| Fantech RVF 6XL Exterior Centrifugal Fan 381 CFM Single Phase - RVF6XL | |
|---|---|
| SKU | RVF6XL |
| Weight (in lbs) | 14.000000 |
| Brand/Manufacturer | Fantech |
| Drive Type | Direct |
| Maximum CFM | 381 |
| Motor RPM | 3044 |
| Watt | 148 |
| Electrical | 120/240 V, 1 Phase |
| Amperage Requirement | 1.32 |
| Certification | HVI, cULus, cCSAus |
| Height | 8" |
| Width | 15" |
| Depth | 18" |
| Warranty | 5 Year |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
