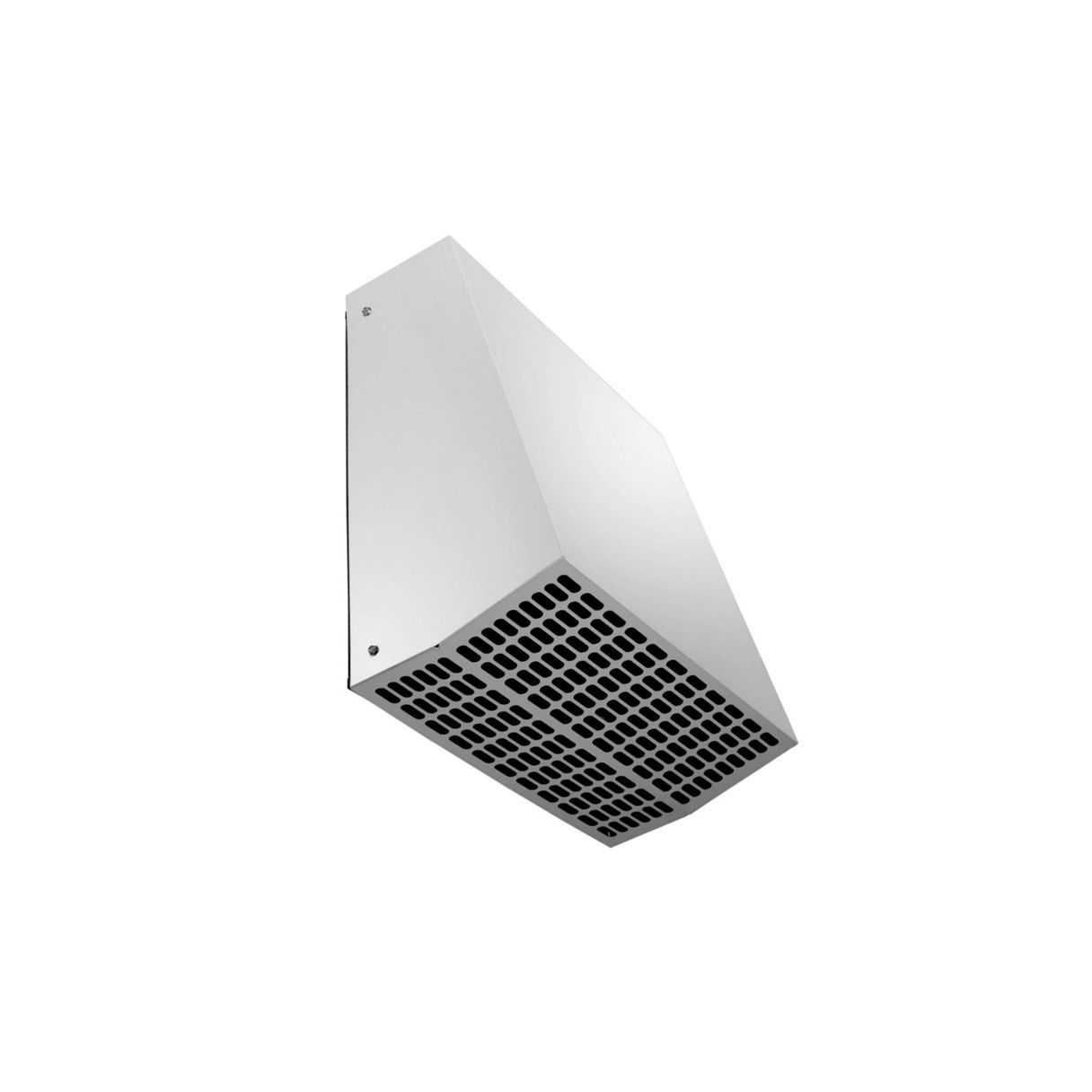

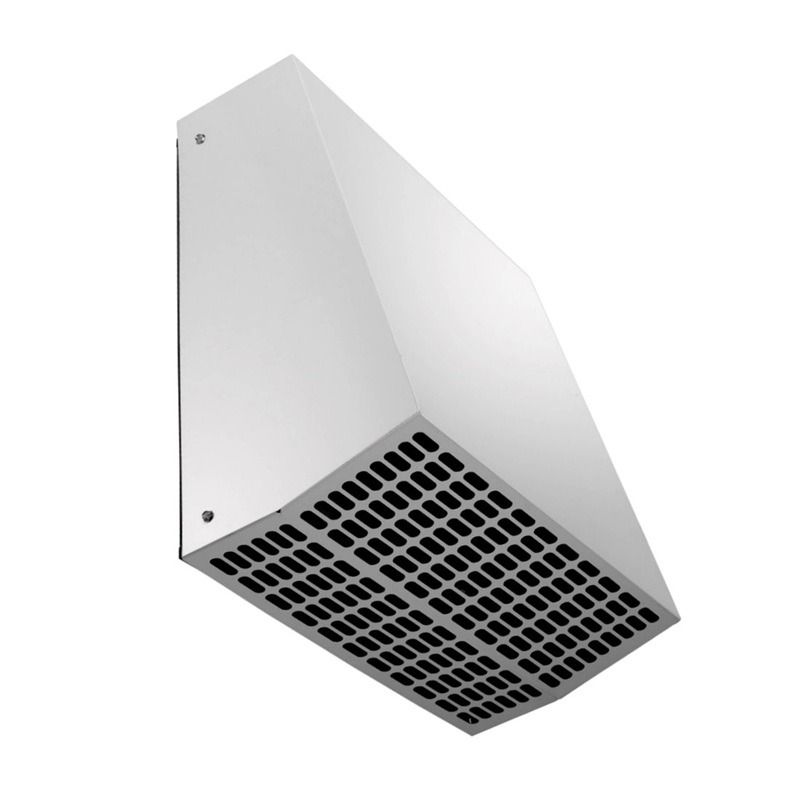

Fantech RVF 8XL EC Exterior Centrifugal Fan Direct Drive, 574 CFM , 2280 RPM, 120/240V
By
Fantech
In stock
Model
RVF 8XL EC
ID
36765
Was $770.00 Your Low Price Special Price $599.00
Â
Product Features
- With Built-in thermal overload protection with automatic reset
- Capable of operating in air stream temperature of up to 140 °F
- Galvanized RAL9016 painted housing resists corrosion for lasting durability.
- Suitable for residential or light commercial applications
- days
- Hours
- Minutes
- Seconds
OVERVIEW
The RVF Series is an exterior wall-mounted exhaust fan designed for quiet and efficient ventilation. It’s ideal for applications such as bathrooms, kitchens, and utility rooms where a remote, low-noise fan setup is preferred. Each unit features a backward-curved impeller and a galvanized steel housing with a durable white powder-coated finish for long-lasting protection. By mounting the fan outdoors, operational noise stays outside the building, keeping indoor spaces peaceful. The RVF fans are lightweight, compact, and easy to install, with a removable housing that allows quick access to the motor and wiring for easy maintenance.
Key Features
- Galvanized steel housing with powder-coat finish: built to resist corrosion, rust, and wear, ensuring long-lasting durability even in humid or outdoor environments.
- External-rotor, totally enclosed motor: provides superior protection against dust and moisture, making it ideal for continuous operation in demanding or harsh conditions.
- Backward-curve impeller: engineered for high efficiency and reduced noise levels, delivering consistent airflow performance while minimizing energy consumption.
- Automatic reset thermal overload protection: safeguards the motor from overheating by automatically cutting power during thermal overload and resetting once safe temperatures are restored.
- Rubber gasket seal: ensures a tight, leak-free duct connection, preventing air loss and maintaining system efficiency over time.
- Noise-reducing design: places the motor outside the building to minimize sound transmission indoors, maintaining quiet operation and improved comfort.
- High-temperature rated: capable of handling airstreams up to 140°F (60°C), suitable for a variety of residential, commercial, and light industrial ventilation systems.
Warranty Information
The Fantech Inline Duct Fans come with a 5-year limited warranty against defects in materials and workmanship. Fantech will repair or replace defective parts or products after verifying a valid claim.
Warranty Conditions- Proof of purchase is required for all warranty claims.
- Customers must obtain a Return Material Authorization (RMA) before returning any product.
- Returned items must be shipped prepaid and properly labeled with the RMA number.
- Improper installation, wiring, or unauthorized repairs void the warranty.
- Damage from misuse, abuse, or external factors such as accidents or weather is not covered.
- Products with removed or altered serial labels are not eligible for warranty service.
Durable Construction & Smart Design
The Fantech RVF fan series is engineered for exterior wall-mounted ventilation, combining rugged materials and design features to withstand weather, humidity, and airborne contaminants. Its housing is constructed from galvanized steel with a baked-on powder-coat finish (RAL 9016 white by default), offering strong protection against corrosion, rust, and UV degradation. Inside, the fan uses an external-rotor motor with a backward-curve impeller that is compact, efficient, and designed to remain cooler during operation. The motor is totally enclosed, enabling the fan to operate reliably even in humid, dusty, or lint-laden air. For protection and longevity, the RVF includes automatic reset thermal overload protection, guarding the motor from overheating. A rubber gasket ensures a tight seal for duct connections, minimizing air leaks.
Suitable Applications for Fantech RVF Inline Duct Fans
- Bathrooms, kitchens, or laundry rooms: removes heat, moisture, and odors to improve comfort and prevent mold.
- Utility rooms or equipment spaces: provides steady airflow to prevent overheating and improve circulation.
- Garages or workshops: clears fumes, dust, and odors for a cleaner, safer workspace.
- Conference rooms or small commercial areas: maintains fresh air and odor control for better comfort.
- Indoor pool areas: reduces humidity and chemical odors to protect structures and improve air quality.
- Residential HVAC systems: balances air pressure and boosts overall ventilation efficiency.
- Room-to-room ventilation: improves airflow and temperature balance between connected spaces.
| Fantech RVF 8XL EC Exterior Centrifugal Fan Direct Drive, 574 CFM , 2280 RPM, 120/240V | |
|---|---|
| SKU | RVF 8XL EC |
| Weight (in lbs) | 20.000000 |
| Brand/Manufacturer | Fantech |
| Drive Type | Direct |
| Maximum CFM | 574 |
| Motor RPM | 2280 |
| Watt | 89.8 |
| Amperage Requirement | 1.22 |
| Certification | UL |
| Height | 12" |
| Width | 16" |
| Depth | 19" |
| Warranty | 5 Year factory warranty |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
Can I oil or grease the fan motor?
No need! The motor’s bearings are sealed and permanently lubricated, so you never have to add oil. Trying to open or oil the motor could damage it or void the warranty.
Can I use flexible ducting with the fan?
Yes, absolutely. You can connect either flexible or rigid ducts. Just make sure they’re properly supported and sealed tightly to prevent air leaks. If you have any further questions, please don't hesitate to contact us. Thanks.
Can I paint the fan to match my wall color?
It’s not recommended, as the powder coating provides protection. However, if you must, use paint designed for metal and outdoor exposure.
Can I install the fan vertically or horizontally?
Yes! The RVF can be installed either vertically or horizontally. Just make sure the air flows in the right direction and that it’s securely mounted and sealed. If you have any further questions, please don't hesitate to contact us. Thanks.
Will this fan cause vibration or noise inside my home?
Hardly at all. The RVF is well-balanced and comes with mounting brackets that keep vibration low, so it runs smoothly and quietly.
