Today's Hours 8am - 11pm estFantech SER 1100 Commercial Energy Recovery Ventilator (ERV), 950 CFM (SKU 99277)
Ships in 1-2 Weeks
By
Fantech
In stock
Model
99277
ID
241726
Was $7,073.00 Your Low Price Special Price $6,368.00
Product Features
- 950 CFM
- Restaurants, Salons & Retail Shops
- Standard 120V Power
- Year-Round Humidity Control

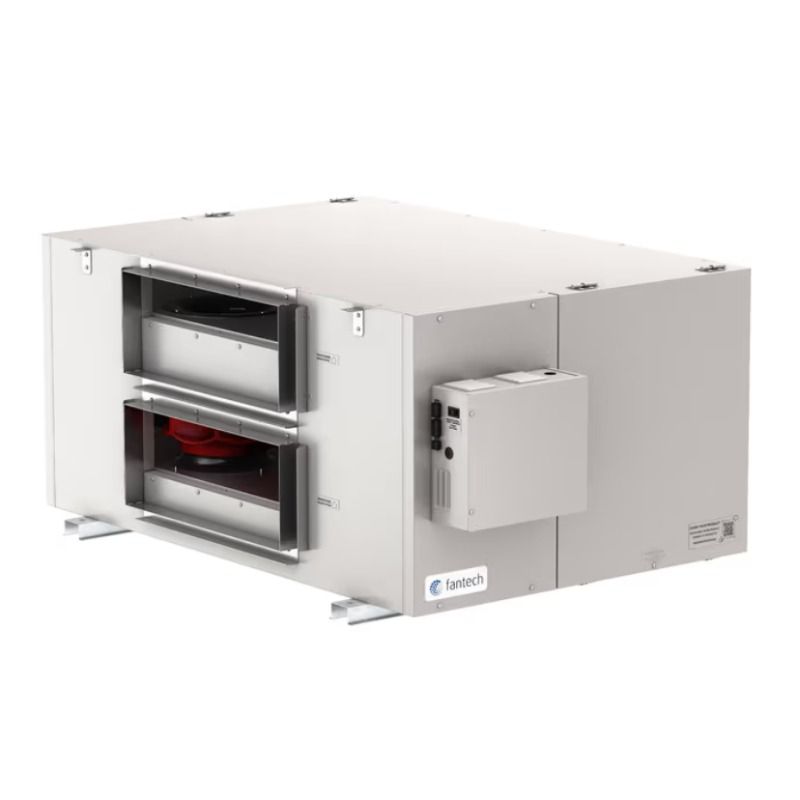

Fantech SER 1100 Commercial Energy Recovery Ventilator (ERV)
The Fantech SER 1100 energy recovery ventilator brings fresh outdoor air into larger commercial spaces while sending an equal amount of stale air outside. Balanced ventilation at this scale keeps CO2, odors, and humidity under control in busy buildings like classrooms, offices, retail shops, clinics, salons, animal shelters, bars, and restaurants.
Three polymer membrane energy recovery cores do the heavy lifting. In summer they pull heat and moisture out of incoming air to cut the cooling load, and in winter they pre-warm incoming air and hold onto humidity. Four EBM-Papst backward inclined blowers push up to 1,179 CFM through the system, all on single-phase 120V power.
Maintenance is straightforward. The cores, filters, and drain pan are reachable from either side through hinged access panels, and the cores slide out with just 15 inches of clearance. Blowers remove on sliding motor plates with a quick connect for fast inspection. The cores are freeze tolerant and washable, and an automatic defrost cycle starts below 23°F to keep them clear in cold weather.
Product Features:
- High Capacity Airflow: Up to 1,179 CFM of balanced ventilation.
- Triple Energy Recovery Cores: Polymer membrane cores recover both heat and moisture.
- Washable, Freeze-Tolerant Cores: Rinse clean with water and hold up in cold climates.
- Four EBM-Papst Blowers: Maintenance-free backward inclined impellers with sealed ball bearing motors and thermal overload protection.
- Automatic Defrost: Supply fan shuts down below 23°F while the exhaust fan clears frost from the core.
- 3-Position Switch: External Low / Standby / High rocker switch, plus compatibility with all Fantech HRV/ERV controls.
- Flexible Installation: Push-pull configuration, outdoor ducts on the same side, and a reversible electrical box. Suspend from threaded rod or set on a platform.
- Durable Cabinet: 22 gauge G90 galvanized steel with baked powder coat finish and 1" foil-faced insulation.
- Filter Options: Washable filters come standard, with an optional MERV 6 upgrade.
- Certified: CSA listed, with an AHRI 1060 certified energy recovery core.
Warranty
The Fantech SER 1100 is backed by a 3-year limited warranty covering the motor, electrical components, and energy recovery core.
SER 1100 Installation Resources

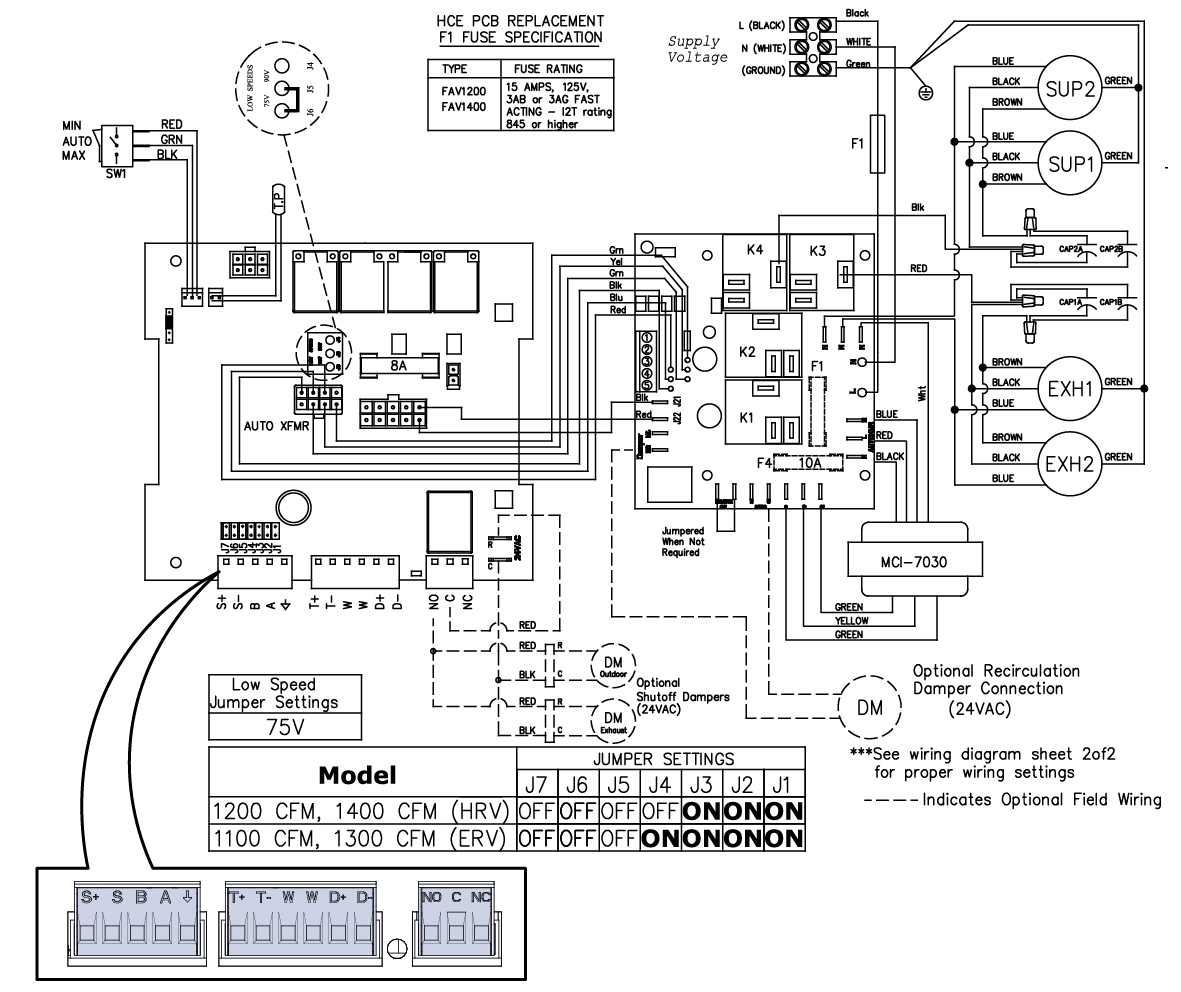

Fantech SER 1100 Commercial Energy Recovery Ventilator (ERV), 950 CFM (SKU 99277) Wiring Diagram
Fantech SER Light Commercial ERV
The Fantech SER series is a line of light commercial energy recovery ventilators for schools, offices, restaurants, and other occupied spaces that need a reliable supply of outdoor air. Each unit exhausts stale indoor air and replaces it with fresh air, and its energy recovery core moves both heat and moisture between the two airstreams. That helps keep outdoor humidity out in the summer and holds onto indoor moisture in the winter, which takes some load off your heating and cooling equipment. The lineup spans about 450 to 1300 CFM on 120V single-phase power.
SER units have a small footprint that fits easily into crowded mechanical rooms, and the door panels can be flipped to whichever side gives you the best service access. The core and both fan motors ride on removable sliding rails for fast maintenance. Every model ships with a MERV 3 filter, and you can step up to MERV 8 or MERV 13 for cleaner incoming air. Supply fan shutdown defrost protects the core in cold weather. Add the Fantech ECO-Touch IAQ control for demand-controlled ventilation that ramps up airflow automatically when VOC levels rise.
