Today's Hours 8am - 11pm estFantech SER 450 Commercial Energy Recovery Ventilator (ERV), 450 CFM (SKU 99266)
Ships in 1-2 Weeks
By
Fantech
In stock
Model
99266
ID
241720
Was $3,422.00 Your Low Price Special Price $3,012.00
Product Features
- 450 CFM
- Offices, Classrooms & Large Homes
- Standard 120V Power
- Year-Round Humidity Control

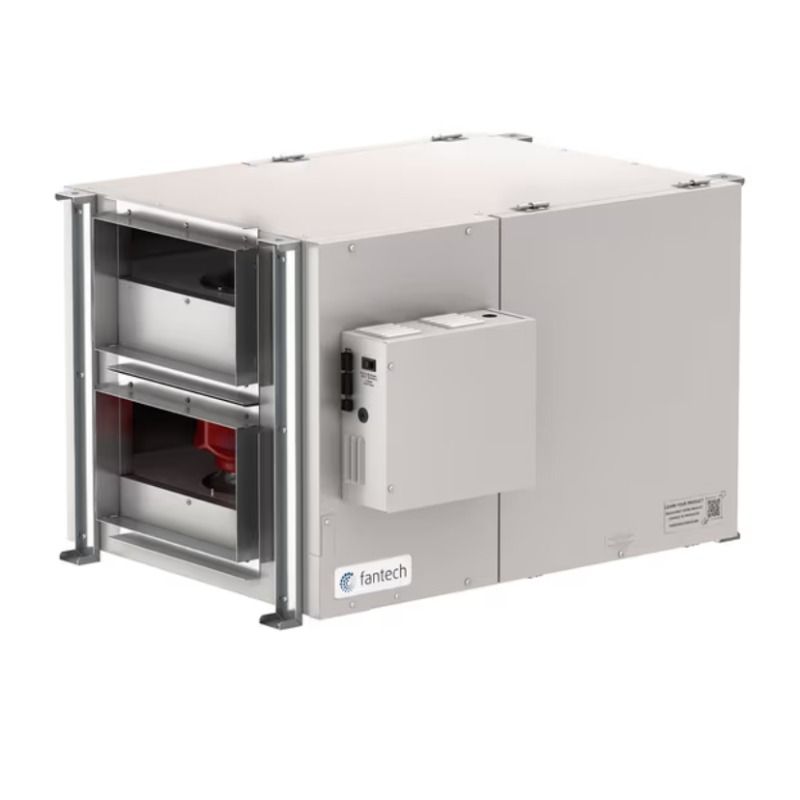

Fantech SER 450 Commercial Energy Recovery Ventilator (ERV)
The Fantech SER 450 energy recovery ventilator brings fresh outdoor air into smaller commercial spaces and larger homes while exhausting an equal amount of stale air. Balanced ventilation keeps CO2, odors, and humidity in check without upsetting building pressure, making it a good fit for classrooms, offices, retail shops, clinics, hair salons, animal shelters, bars, and restaurants.
Two modular polymer membrane cores recover both heat and moisture. In summer they pre-cool and dry incoming air, and in winter they pre-warm it and hold onto humidity, easing the load on your HVAC system. It's the most efficient unit in the SER line, reaching up to 66% sensible effectiveness. Two factory-balanced fans deliver 468 CFM at 0.4 in. w.g. on standard 120V power.
Service is easy with hinged access panels on both sides. The cores, filters, and drain pan slide out with only 15 inches of clearance, and the blowers come out on sliding motor plates with a quick connect. The cores are freeze tolerant and washable, and an automatic defrost cycle kicks in below 23°F to keep them clear in cold weather.
Product Features:
- 450 CFM Capacity: Rated at 468 CFM at 0.4 in. w.g. static pressure.
- Dual Energy Recovery Cores: Polymer membrane cores recover both heat and moisture.
- High Efficiency: Up to 66% sensible and 64% total effectiveness.
- Washable, Freeze-Tolerant Cores: Rinse clean with water and hold up in cold climates.
- Automatic Defrost: Supply fan shuts down below 23°F while the exhaust fan clears frost from the cores.
- 3-Position Switch: External Low / Standby / High rocker switch, plus compatibility with all Fantech HRV/ERV controls.
- Flexible Layout: Access doors front and back, with a control panel that relocates to either side to suit your ducting.
- Durable Cabinet: 22 gauge galvanized steel with baked powder coat and 1" foil-faced insulation.
- Filter Options: Washable MERV 3 filters come standard, with optional MERV 6, 8, or 13 upgrades.
- Certified: CSA listed, UL 1812 compliant, with an AHRI 1060 certified energy recovery core.
Warranty
The Fantech SER 450 is backed by a 3-year limited warranty covering the motor, electrical components, and energy recovery core.
SER 450 Installation Resources

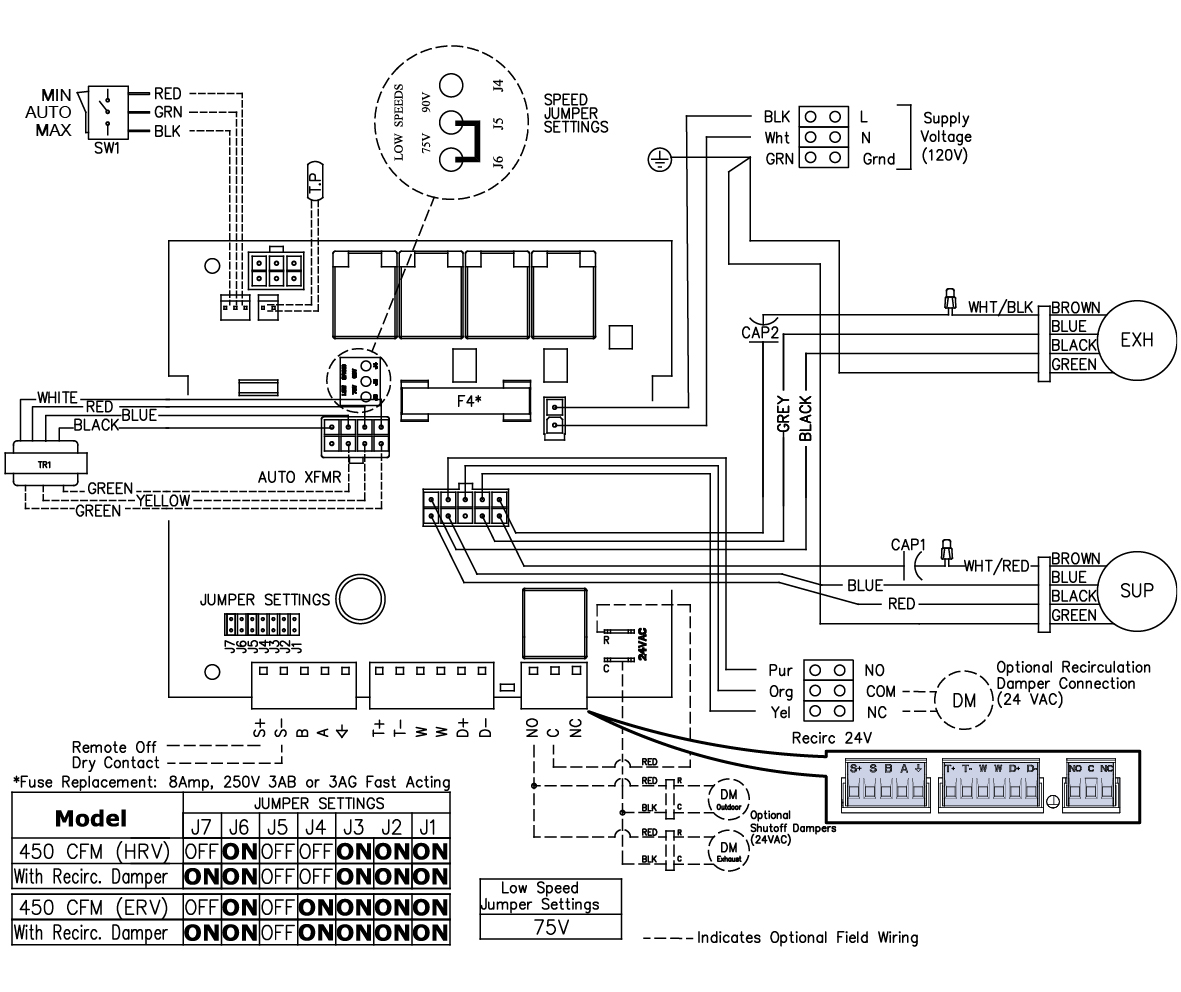

Fantech SER 450 Commercial Energy Recovery Ventilator (ERV), 450 CFM (SKU 99266) Wiring Diagram
Fantech SER Light Commercial ERV
The Fantech SER series is a line of light commercial energy recovery ventilators for schools, offices, restaurants, and other occupied spaces that need a reliable supply of outdoor air. Each unit exhausts stale indoor air and replaces it with fresh air, and its energy recovery core moves both heat and moisture between the two airstreams. That helps keep outdoor humidity out in the summer and holds onto indoor moisture in the winter, which takes some load off your heating and cooling equipment. The lineup spans about 450 to 1300 CFM on 120V single-phase power.
SER units have a small footprint that fits easily into crowded mechanical rooms, and the door panels can be flipped to whichever side gives you the best service access. The core and both fan motors ride on removable sliding rails for fast maintenance. Every model ships with a MERV 3 filter, and you can step up to MERV 8 or MERV 13 for cleaner incoming air. Supply fan shutdown defrost protects the core in cold weather. Add the Fantech ECO-Touch IAQ control for demand-controlled ventilation that ramps up airflow automatically when VOC levels rise.
