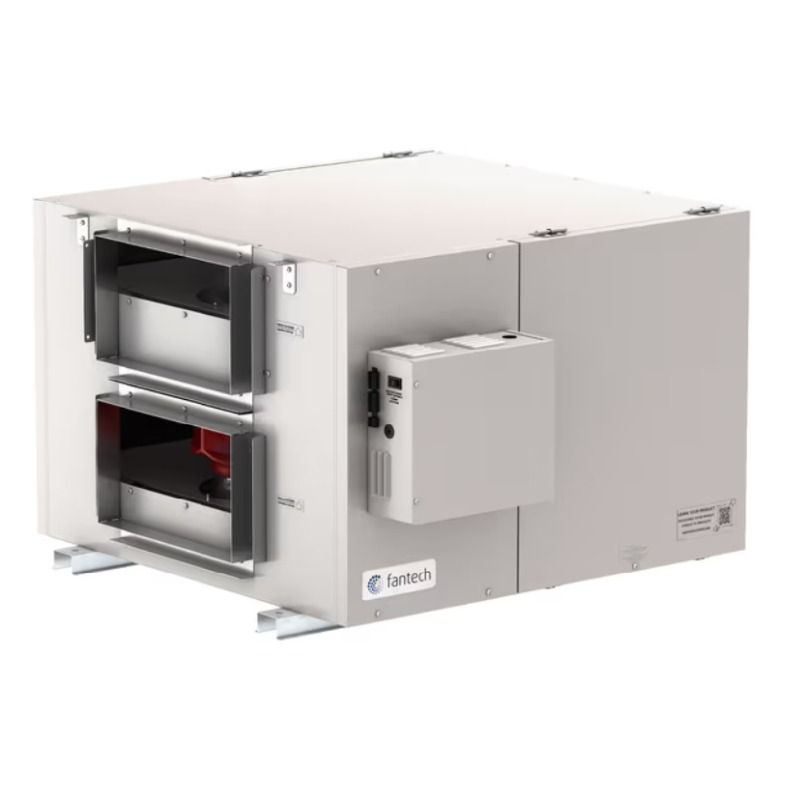

Fantech SER 700 Commercial Energy Recovery Ventilator (ERV), 600 CFM (SKU 99276)

Fantech SER 700 Commercial Energy Recovery Ventilator (ERV)

The Fantech SER 700 energy recovery ventilator supplies fresh outdoor air to commercial spaces while exhausting an equal amount of stale indoor air. That balanced exchange keeps odors, CO2, and humidity in check without upsetting building pressure, making it a strong fit for classrooms, offices, retail shops, salons, restaurants, and clinics.

Inside are two modular energy recovery cores made from a moisture-permeable polymer membrane. They transfer heat and humidity between the air streams, so in summer incoming air is pre-cooled and dried, and in winter it's pre-warmed and holds onto moisture. The result is less load on your heating and cooling equipment year round. The SER 700 moves up to 707 CFM at 0.4 in. w.g. and runs on 120V power.

Service is simple thanks to hinged access panels on both sides. The cores, filters, and full-length drain pan slide out with just 15 inches of clearance, and the blowers come out on sliding motor plates with a quick connect. The cores are freeze tolerant and washable with water, and a built-in defrost cycle kicks in below 23°F to keep them clear in cold weather.

Product Features:

• High Airflow: Up to 707 CFM at 0.4 in. w.g. static pressure.
• Dual Energy Recovery Cores: Polymer membrane cores recover both heat and moisture.
• Washable, Freeze-Tolerant Cores: Rinse clean with water and hold up in cold climates.
• Automatic Defrost: Supply fan shuts down below 23°F while the exhaust fan clears frost from the core.
• Push-Pull Configuration: Two factory-balanced fans with backward curved blades and sealed ball bearing motors.
• 3-Position Switch: External Low / Standby / High rocker switch, plus compatibility with Fantech HRV/ERV wall controls.
• Flexible Installation: Outdoor ducts on the same side, reversible electrical box, and field-reversible airflow. Suspend from threaded rod or set on a platform.
• Durable Cabinet: 22 gauge galvanized steel with baked powder coat finish and 1" foil-faced insulation to control condensation.
• Filter Options: Washable MERV 3 filters come standard, with optional MERV 6, 8, or 13 upgrades.
• Certified: CSA listed, with an AHRI 1060 certified energy recovery core.

Warranty

The Fantech SER 700 is backed by a 3-year limited warranty covering the motor, electrical components, and energy recovery core.

SER 700 Installation Resources

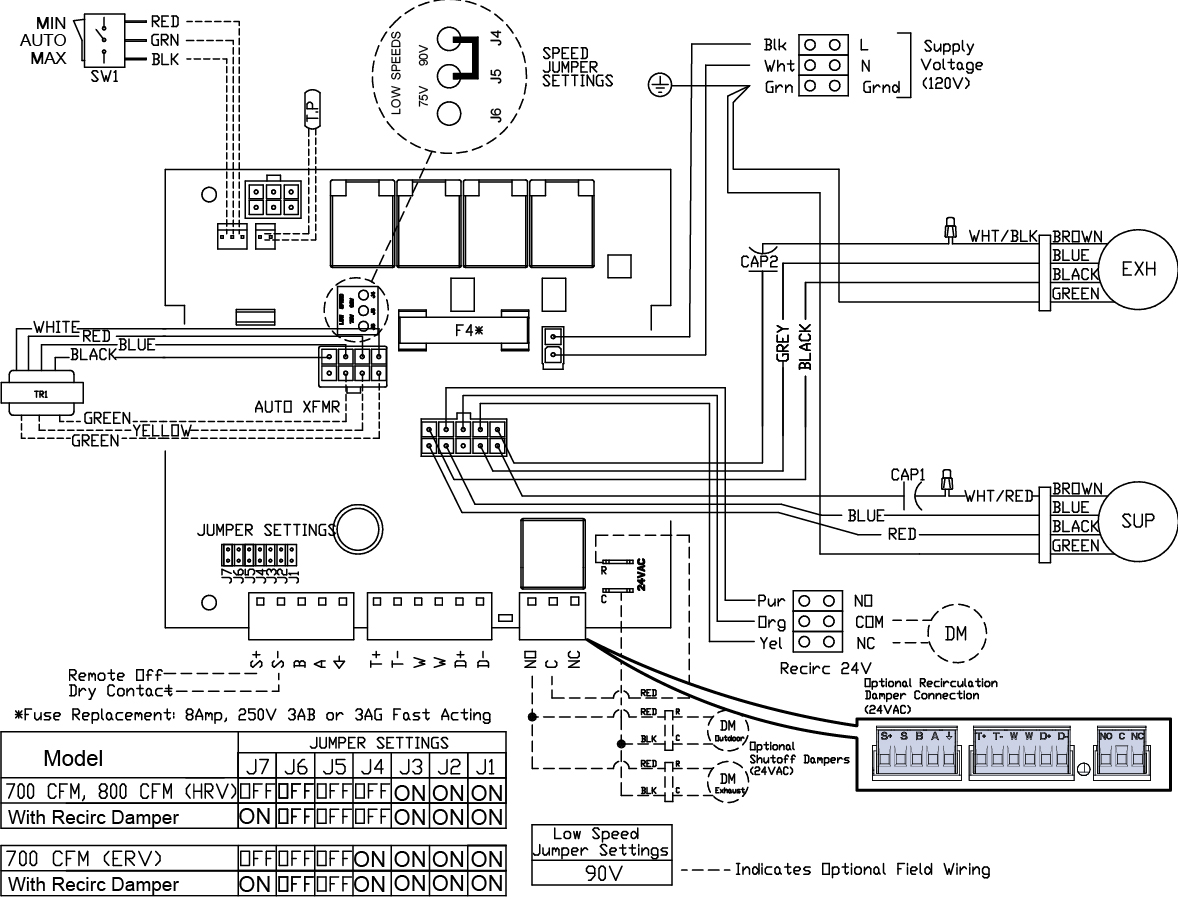

Fantech SER 700 Commercial Energy Recovery Ventilator (ERV), 600 CFM (SKU 99276) Wiring Diagram
