Today's Hours 8am - 11pm estFantech SHR 450 Commercial Heat Recovery Ventilator (HRV), 450 CFM (SKU 99210)
Ships in 1-2 Weeks
By
Fantech
In stock
Model
99210
ID
241748
Was $2,623.00 Your Low Price Special Price $2,247.00
Product Features
- 450 CFM
- Offices, Classrooms & Large Homes
- Standard 120V Power
- Built-In Frost Control

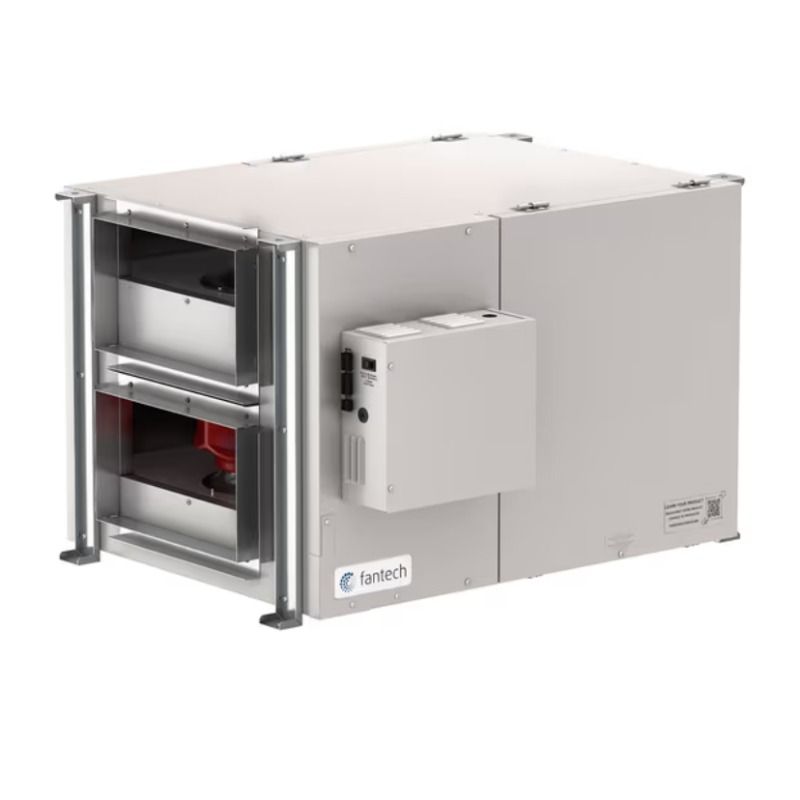

Fantech SHR 450 Commercial Heat Recovery Ventilator (HRV)
The Fantech SHR 450 heat recovery ventilator brings a steady supply of fresh outdoor air into commercial buildings while exhausting the same amount of stale air outside. Balanced ventilation keeps indoor air from getting stuffy or humid without throwing off building pressure, which makes it a great match for indoor pools, offices, ballrooms, and meeting spaces.
At the center of the unit is an aluminum cross-flow heat recovery core. As air passes through, heat from the exhaust side transfers to the incoming air, so fresh air enters closer to room temperature. Because it recovers heat without moving moisture back into the building, it's a strong choice for spaces that need humidity removed, like pools and busy meeting rooms. The SHR 450 delivers up to 464 CFM at 0.4 in. w.g. on standard 120V power.
Built for year-round use, the SHR 450 has an automatic defrost cycle that starts when outdoor temps drop to 23°F. The supply fan shuts down while the exhaust side clears the core, then normal operation resumes. Hinged access panels on both sides make the core, filters, and drain pan easy to reach for service.
Product Features:
- 450 CFM Capacity: Delivers up to 464 CFM at 0.4 in. w.g. static pressure.
- Aluminum Heat Recovery Core: Cross-flow design tempers incoming air and reduces heating loads.
- Removes Indoor Humidity: Recovers heat without returning moisture, ideal for pools and high-occupancy rooms.
- Automatic Defrost: Supply fan shuts down at 23°F to keep the core from freezing.
- Side Port Connections: 8" x 14" side ports for horizontal installs.
- Easy Maintenance: Core, filters, and drain pan are reachable from either side through hinged access panels.
- Control Options: Works with the ECO-Touch IAQ, ECO-Feel, and RTS push-button timers.
- Filter Upgrades Available: Washable filters come standard, with optional MERV 8 and MERV 13 replacement kits.
- Certified Performance: CSA listed and AHRI 1060 rated.
Warranty
The Fantech SHR 450 is backed by a lifetime limited warranty on the aluminum heat recovery core and a 3-year limited warranty on the motor and electrical components.

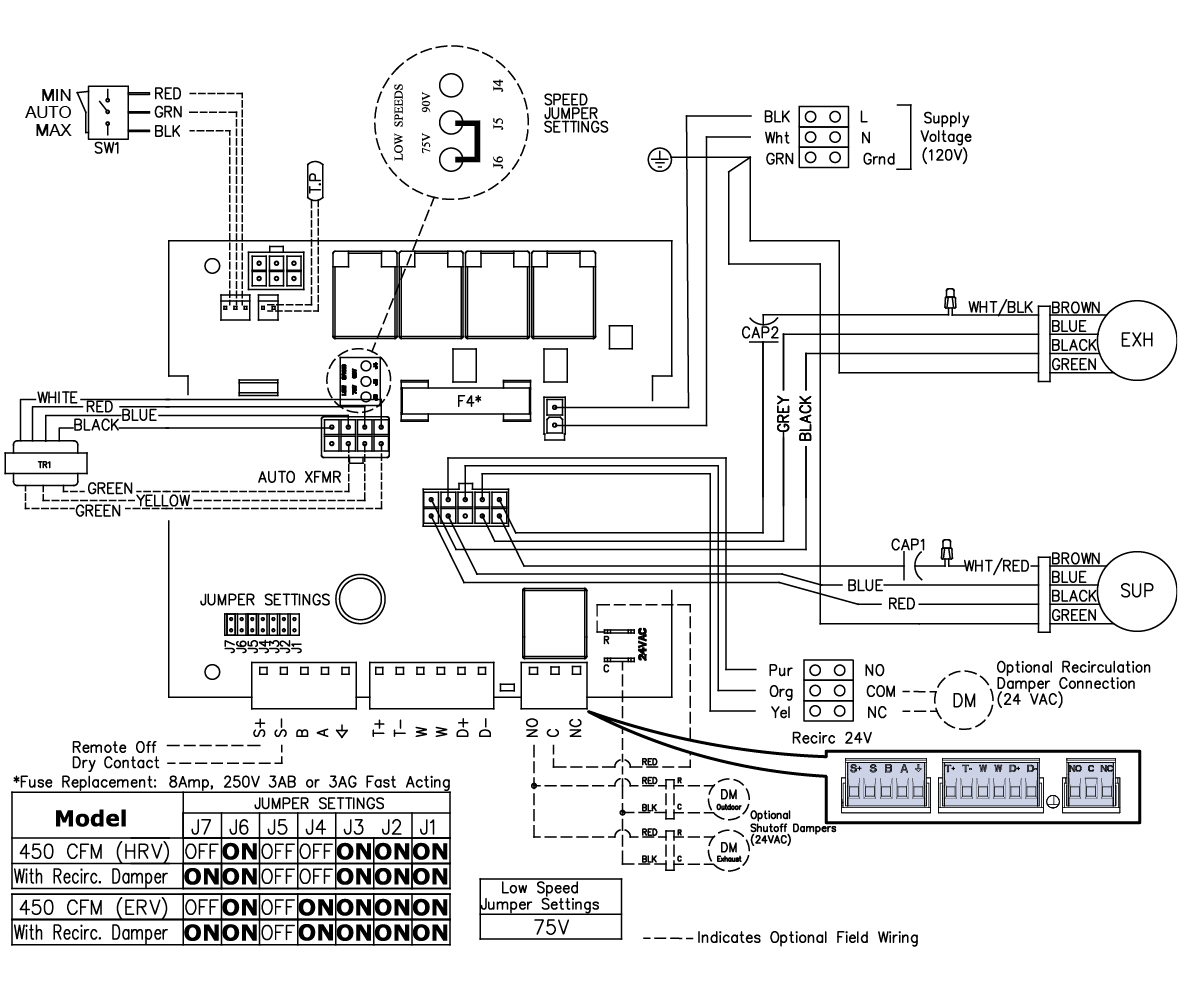

SHR 450 Installation Resources
Fantech SHR Light Commercial HRV
The Fantech SHR series is a line of light commercial heat recovery ventilators for restaurants, offices, classrooms, and retail spaces that need a steady supply of fresh air to meet ventilation code. Each unit exhausts stale indoor air and replaces it with outdoor air, while an aluminum heat exchanger transfers heat between the two airstreams to take the edge off incoming air. The lineup spans about 450 to 1400 CFM on 120V single-phase power.
SHR units have a small footprint that fits easily into crowded mechanical rooms, and the door panels can be flipped to whichever side gives you the best service access. The core and both fan motors ride on removable sliding rails for fast maintenance. Every model ships with a MERV 3 filter, and you can step up to MERV 8 or MERV 13 for cleaner incoming air. Supply fan shutdown defrost protects the core in cold weather, and an optional bypass damper adds recirculation defrost for colder or more humid climates. Add the Fantech ECO-Touch IAQ control for demand-controlled ventilation that ramps up airflow automatically when VOC levels rise.
