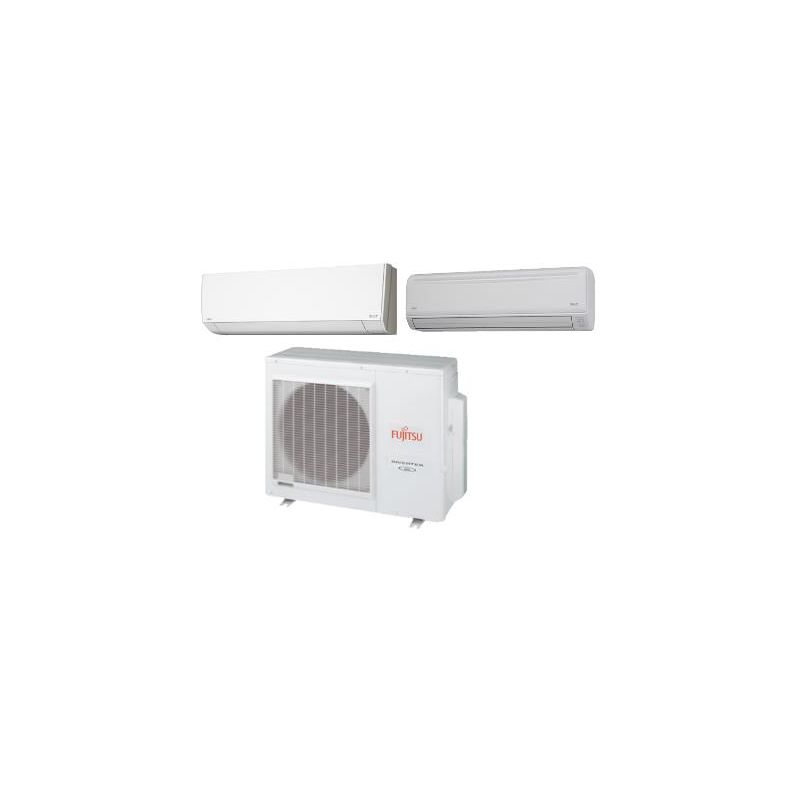

Fujitsu 24,000 BTU 18 SEER Dual Zone Heat Pump System 7+18 - Wall Mounted

Fujitsu 24,000 BTU 18 SEER Dual Zone Heat Pump System 7+18 - Wall Mounted

Required Fields *

Be the first to review this product

Out of stock

Fujitsu

Out of stock

Model

AOU24RLXFZ / ASUH7LPAS-1 / ASUH18LPAS-1

22381

3 Questions Answered

Description

The Fujitsu Dual Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

Product Specs

More Information
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
Feature	Spec
SKU	AOU24RLXFZ
Weight (in lbs)	100
Brand/Manufacturer	Fujitsu
UPC	689526843454
Cooling BTU	22000
Heating BTU	24000
Refrigerant	R410A
HSPF	9.5
SEER1 (Efficiency)	18-20
Liquid Valve Size	1/4" x3
Suction Valve Size	3/8" x2, 1/2" x1
Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	20
Min. Breaker Size	17
Amperage Requirement	20
Tonnage	2 Ton
Valve Type	Flare
Height	27 9/16"
Width	35 7/16"
Depth	13"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Installation Manual Design and Technical Manual Service Instruction Service Manual Brochure Additional Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler
Feature	Spec
SKU	ASUH07LPAS-1
Weight (in lbs)	21
Brand/Manufacturer	Fujitsu
Cooling BTU	7000
Heating BTU	7000
Maximum CFM	424
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	0.5 Ton
Valve Type	Flare
Height	10 9/16"
Width	33 1/16"
Depth	8"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 18,000 BTU Ductless Wall Mounted Air Handler
Feature	Spec
SKU	ASUH18LPAS-1
Weight (in lbs)	29
Brand/Manufacturer	Fujitsu
UPC	689526843751
Cooling BTU	18000
Heating BTU	18000
Maximum CFM	530
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	1/2"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	1.5 Ton
Valve Type	Flare
Height	11"
Width	38 9/16"
Depth	9 7/16"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.

Reviews

Accessories

FAQ's

Customer Questions

Is a remote controller included?

Yes, remote controller is included with this unit. If you have any further questions please feel free to give us a call! Thanks.

How many watts does it draw?

Thank you for your question. This system has the electrical specs of 208/230V AC 1ph-60Hz. It has a minimum circuit ampacity of 17 A, a max fuse size of 20 A and a max starting current of 9.0 A. The 18K indoor air handler unit has an input power of 34 W and the 7K indoor air handler unit has an input power of 18 W. The indoor air handler units are supplied power by the outdoor condenser. For more assistance, please give us a call.

How low can the outdoor temp be and the unit will still work in heating mode?

The outdoor condenser in this system is rated to work in heating mode down to 5 degrees Fahrenheit. If you have any further questions please feel free to give us a call! Thanks.
