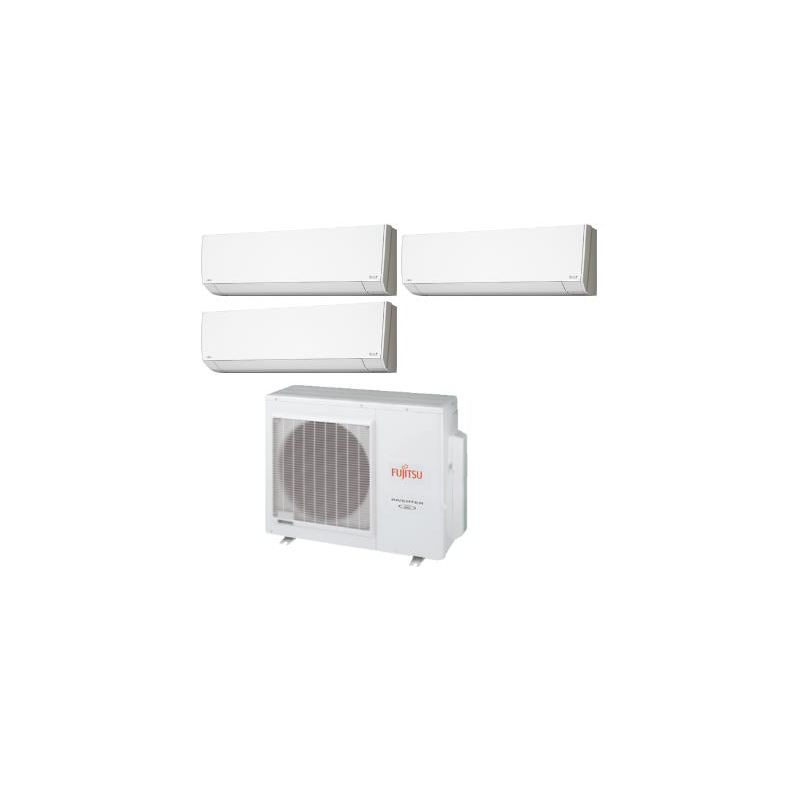

Fujitsu 24,000 BTU 18 SEER Tri Zone Heat Pump System 7+7+7 - Wall Mounted

By

Fujitsu

Out of stock

Model

AOU24RLXFZ / 3-ASUH7LPAS-1

ID

22384

Rating:
100% of 100
Discontinued

Authorized Fujitsu Dealer

Description

The Fujitsu Tri Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

All-in-One Kit: Includes key accessories for a professional-grade installation.
Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:

  • 21" Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Product Specifications

More Information
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
SKUAOU24RLXFZ
Weight100.000000
ManufacturerFujitsu
HSPF9.5
Cooling BTU22000
Heating BTU24000
RefrigerantR410A
SEER18-20
Liquid Valve Size1/4" x3
Suction Valve Size3/8" x2, 1/2" x1
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size20
Min. Breaker Size17
Amperage Requirement20
Tonnage2 Ton
Valve TypeFlare
Height27 9/16"
Width35 7/16"
Depth13"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler
SKUASUH07LPAS-1
Weight21.000000
ManufacturerFujitsu
Cooling BTU7000
Heating BTU7000
Maximum CFM424
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.5 Ton
Valve TypeFlare
Height10 9/16"
Width33 1/16"
Depth8"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Installation Kit for Condensers
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKU230-B2L
Weight9.200000
ManufacturerOnline Supply
Length40"
Height3"
Width6"
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Read More +

Reviews 3

Write Your Own Review
You're reviewing:Fujitsu 24,000 BTU 18 SEER Tri Zone Heat Pump System 7+7+7 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
Is a remote controller included?
Yes, remote controller is included with this unit. If you have any further questions please feel free to give us a call! Thanks.
