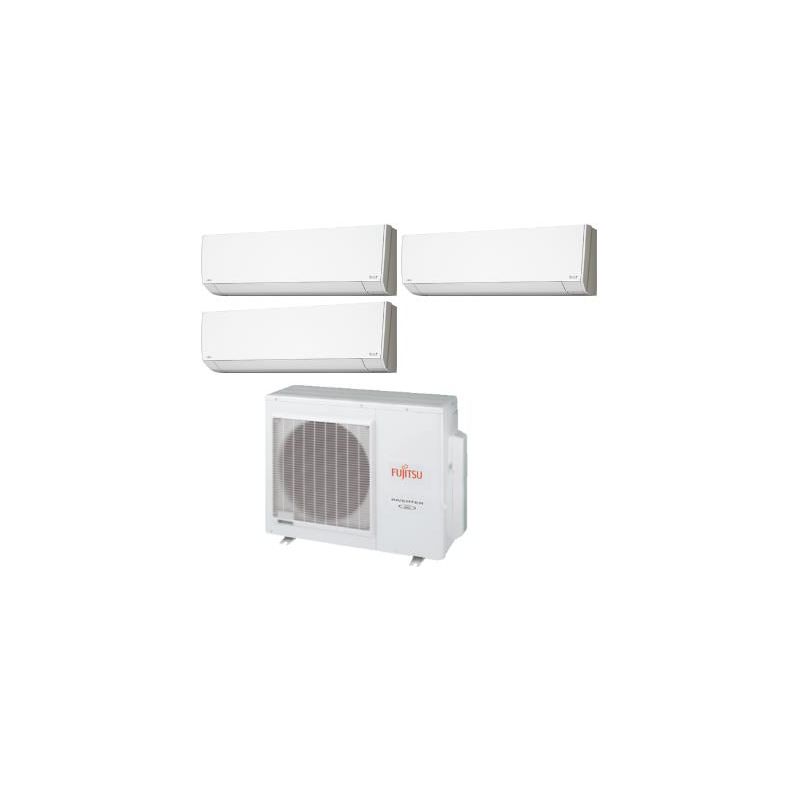

Fujitsu 24,000 BTU 18 SEER Tri Zone Heat Pump System 7+9+9 - Wall Mounted

Fujitsu 24,000 BTU 18 SEER Tri Zone Heat Pump System 7+9+9 - Wall Mounted

Required Fields *

Be the first to review this product

Out of stock

Fujitsu

Out of stock

Model

AOU24RLXFZ / ASUH07LPAS-1 / 2-ASUH09LPAS-1

22387

2 Questions Answered

Description

The Fujitsu Tri Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

Product Specs

More Information
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
Feature	Spec
SKU	AOU24RLXFZ
Weight (in lbs)	100
Brand/Manufacturer	Fujitsu
UPC	689526843454
Cooling BTU	22000
Heating BTU	24000
Refrigerant	R410A
HSPF	9.5
SEER1 (Efficiency)	18-20
Liquid Valve Size	1/4" x3
Suction Valve Size	3/8" x2, 1/2" x1
Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	20
Min. Breaker Size	17
Amperage Requirement	20
Tonnage	2 Ton
Valve Type	Flare
Height	27 9/16"
Width	35 7/16"
Depth	13"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Installation Manual Design and Technical Manual Service Instruction Service Manual Brochure Additional Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler
Feature	Spec
SKU	ASUH07LPAS-1
Weight (in lbs)	21
Brand/Manufacturer	Fujitsu
Cooling BTU	7000
Heating BTU	7000
Maximum CFM	424
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	0.5 Ton
Valve Type	Flare
Height	10 9/16"
Width	33 1/16"
Depth	8"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler
Feature	Spec
SKU	ASUH09LPAS-1
Weight (in lbs)	25
Brand/Manufacturer	Fujitsu
Cooling BTU	9000
Heating BTU	12000
Maximum CFM	441
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	0.75 Ton
Valve Type	Flare
Height	10 9/16"
Width	33 1/16"
Depth	8"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler
Feature	Spec
SKU	ASUH09LPAS-1
Weight (in lbs)	25
Brand/Manufacturer	Fujitsu
Cooling BTU	9000
Heating BTU	12000
Maximum CFM	441
Refrigerant	R410A
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230 V. 1 Phase 60 Hz
Tonnage	0.75 Ton
Valve Type	Flare
Height	10 9/16"
Width	33 1/16"
Depth	8"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Installation Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.

Reviews

Accessories

FAQ's

Customer Questions

Is a remote controller included?

Yes, remote controller is included with this unit. If you have any further questions please feel free to give us a call! Thanks.

Does this price include all electrical and plumbing lines needed?

Thank you for your question. The system includes the outdoor condenser and 3 indoor air handlers. Accessories, such as the line sets, are not included and will have to be purchased separately. However, we do carry all of these required and recommended accessories, which can be found in the accessory section of the product page. This section is located beneath the add to cart button. For the condenser, we would recommend the ductless mini split installation kit for condensers as this kit contains many of the needed condenser installation components. For each indoor air handler we would recommend a ductless mini split indoor installation kit. This kit contains the line set, the control wire and the condensate drain line. They are available in several lengths and again, you will need one of these indoor installation kits per indoor air handler. If your installation requires the drain line to against gravity, you will also require a condensate pump. We would also recommend a wall mount bracket...
