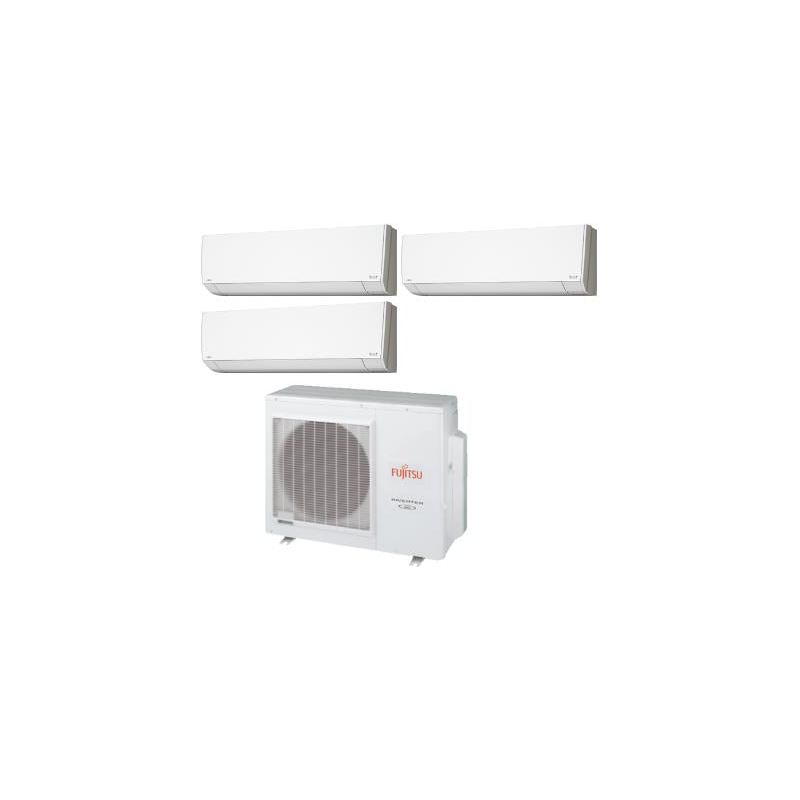

Fujitsu 24,000 BTU 18 SEER Tri Zone Heat Pump System 9+9+9 - Wall Mounted

By

Fujitsu

Out of stock

Model

AOU24RLXFZ / 3-ASUH09LPAS-1

ID

22391

Authorized Fujitsu Dealer

Description

The Fujitsu Tri Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

Product Specifications

More Information
24,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
SKUAOU24RLXFZ
Weight100.000000
ManufacturerFujitsu
HSPF9.5
Cooling BTU22000
Heating BTU24000
RefrigerantR410A
SEER18-20
Liquid Valve Size1/4" x3
Suction Valve Size3/8" x2, 1/2" x1
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size20
Min. Breaker Size17
Amperage Requirement20
Tonnage2 Ton
Valve TypeFlare
Height27 9/16"
Width35 7/16"
Depth13"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler
SKUASUH09LPAS-1
Weight25.000000
ManufacturerFujitsu
Cooling BTU9000
Heating BTU12000
Maximum CFM441
RefrigerantR410A
Liquid Valve Size1/4"
Suction Valve Size3/8"
Electrical208/230 V. 1 Phase 60 Hz
Tonnage0.75 Ton
Valve TypeFlare
Height10 9/16"
Width33 1/16"
Depth8"
WarrantyPlease Note: Fujitsu does not offer warranty for online purchases
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Read More +

Reviews

Write Your Own Review
You're reviewing:Fujitsu 24,000 BTU 18 SEER Tri Zone Heat Pump System 9+9+9 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
Is a remote controller included?
Yes, remote controller is included with this unit. If you have any further questions please feel free to give us a call! Thanks.
Does this 3- zone system come with 3 installation line sets?
Thank you for your question. Yes, a line set, which can be purchased separately as an accessory, will be required for each indoor air handler. We would recommend the ductless mini split indoor installation kit for each indoor air handler. This kit includes the refrigerant line set, the control wire and the condensate drain line. Since this system has 3 air handlers, you will require 3 indoor installation kits. We would also recommend the ductless mini split installation kit for the condenser as it includes several accessories that will be required for a complete installation of the outdoor condenser (you will only need one condenser installation kit). We would also recommend a wall sleeve for each line set when passing it to the outside. We would also recommend an equipment pad or wall bracket for the outside condenser to keep it from sitting directly on the ground. Line set cover guards for each line set would also be recommended to both better protect and camouflage the line sets. ...
