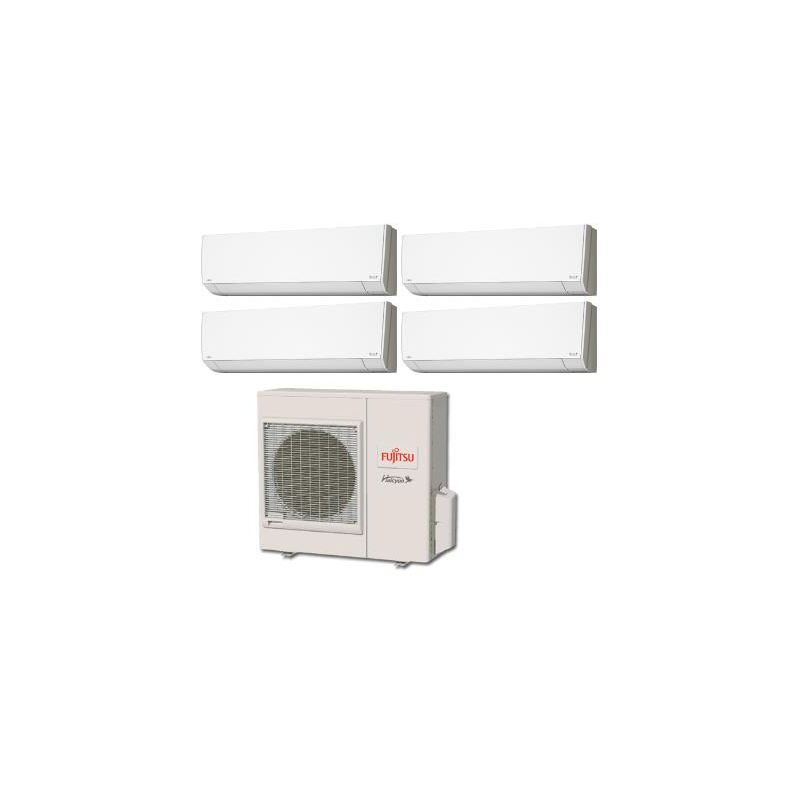

Fujitsu 36,000 BTU 18 SEER Quad Zone Heat Pump System 7+7+7+9 - Wall Mounted

By

Fujitsu

Ships in 2-3 Weeks
Model

AOU36RLXFZ1 / 3-ASU7RLF1 / ASU9RLF1

ID

22468

Rating:
20 % of 100

Authorized Fujitsu Dealer

Your Low Price $5,319.08
Bread Checkout


Please enter your room sizes to narrow your results

Room #1

Room #2

Room #3

Room #4

Type (optional)

Free Shipping

Required Fields *

Customize Fujitsu 36,000 BTU 18 SEER Quad Zone Heat Pump System 7+7+7+9 - Wall Mounted
36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser (Out of stock)   + $3,133.36 View Item
36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser (Out of stock)   + $3,133.36
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $532.12 View Item
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $532.12
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $532.12 View Item
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $532.12
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $532.12 View Item
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $532.12
Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $589.36 View Item
Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler (Ships in 2-3 Weeks)   + $589.36
Fujitsu 36,000 BTU 18 SEER Quad Zone Heat Pump System 7+7+7+9 - Wall Mounted

$5,319.08

Accessories for this product

Description

The Fujitsu Quad Zone Mini Split Systems are state of the art mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own electronic temperature controller.

36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser

The Fujitsu Ductless Mini Split AOU36RLXFZ1 Heat Pump Air Conditioner Condenser has an INVERTER-driven compressor pump that cools or warms refrigerant and sends it inside to an air handler through small pipes. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

With the Fujitsu Ductless Mini Split AOU36RLXFZ1 Heat Pump Air Conditioner Multi zone condenser each room or zone operates independently with its own wireless or wired remote controller so people in different rooms can choose the temperature that makes them most comfortable. This unit will work with a variety of indoor unit combinations; with indoor options such as Wall mounted ductless, Floor mounted ductless, Ceiling recessed cassette ductless, horizontal ducted ductless or even multi position ducted air handlers.

Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler

The Fujitsu ASU7RLF1 Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The ASU7RLF1 combines an ion deodorization filter with an enzyme-based filter for managing allergens. With a mini-split, more air changes over the coil in 24 hours than in a central air system, doing a better job filtering out allergens. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided.

Fujitsu General is using ergonomics to expand the use of user friendly designs such as easy-to-read large LCD displays, easy-to-operate buttons, and displays with easily recognizable colors and icons. They are producing control systems that provide greater convenience for both individual and centralized control with operability suitable for the application. Many systems provide dehumidification, even when cooling isn't needed. Additionally, you can set timers - 24-hour timer and sleep timer - for your convenience.

Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler

The Fujitsu previous sku ASU9RLF1 Air Handler is a perfect fit for your home. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. The ASU9RLF1 combines an ion deodorization filter with an enzyme-based filter for managing allergens. With a mini-split, more air changes over the coil in 24 hours than in a central air system, doing a better job filtering out allergens. By adjusting the cooling set point and swinging the horizontal vanes, the unit can improve the efficiency of operation without compromising the comfort provided.

Fujitsu General is using ergonomics to expand the use of user friendly designs such as easy-to-read large LCD displays, easy-to-operate buttons, and displays with easily recognizable colors and icons. They are producing control systems that provide greater convenience for both individual and centralized control with operability suitable for the application. Many systems provide dehumidification, even when cooling isn't needed. Additionally, you can set timers - 24-hour timer and sleep timer - for your convenience.

Product Specifications

More Information
36,000 BTU Fujitsu Halcyon Multi-Zone Ductless Heat Pump Condenser
Weight (in lbs) 100.000000
Manufacturer Fujitsu
HSPF 9.4
Cooling BTU 35200
Heating BTU 36400
Refrigerant R410A
SEER 18-20
Liquid Valve Size 1/4" x4
Suction Valve Size 3/8" x3, 1/2" x1
Electrical 208/230 V. 1 Phase 60 Hz
Max Breaker Size 30
Min. Breaker Size 24.6
Amperage Requirement 30
Tonnage 3 Ton
Valve Type Flare
Height 32 11/16"
Width 35 7/16"
Depth 13"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 7,000 BTU Ductless Wall Mounted Air Handler
Weight (in lbs) 21.000000
Manufacturer Fujitsu
Cooling BTU 7000
Heating BTU 7000
Maximum CFM 330
Refrigerant R410A
Liquid Valve Size 1/4"
Suction Valve Size 3/8"
Electrical 208/230 V. 1 Phase 60 Hz
Tonnage 0.5 Ton
Valve Type Flare
Height 10 9/16"
Width 33 1/16"
Depth 8"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Fujitsu Halcyon 9,000 BTU Ductless Wall Mounted Air Handler
Weight (in lbs) 25.000000
Manufacturer Fujitsu
Cooling BTU 9000
Heating BTU 12000
Maximum CFM 353
Refrigerant R410A
Liquid Valve Size 1/4"
Suction Valve Size 3/8"
Electrical 208/230 V. 1 Phase 60 Hz
Tonnage 0.75 Ton
Valve Type Flare
Height 10 9/16"
Width 33 1/16"
Depth 8"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.

Reviews 1

Write Your Own Review
You're reviewing:Fujitsu 36,000 BTU 18 SEER Quad Zone Heat Pump System 7+7+7+9 - Wall Mounted
Your Rating

Questions and Answers

Customer Questions
Is a remote controller included?
Yes, remote controller is included with this unit. If you have any further questions please feel free to give us a call! Thanks.
