GE Non-Programmable Digital Thermostat with High/Low Fan Speed for PTACs & VTACs

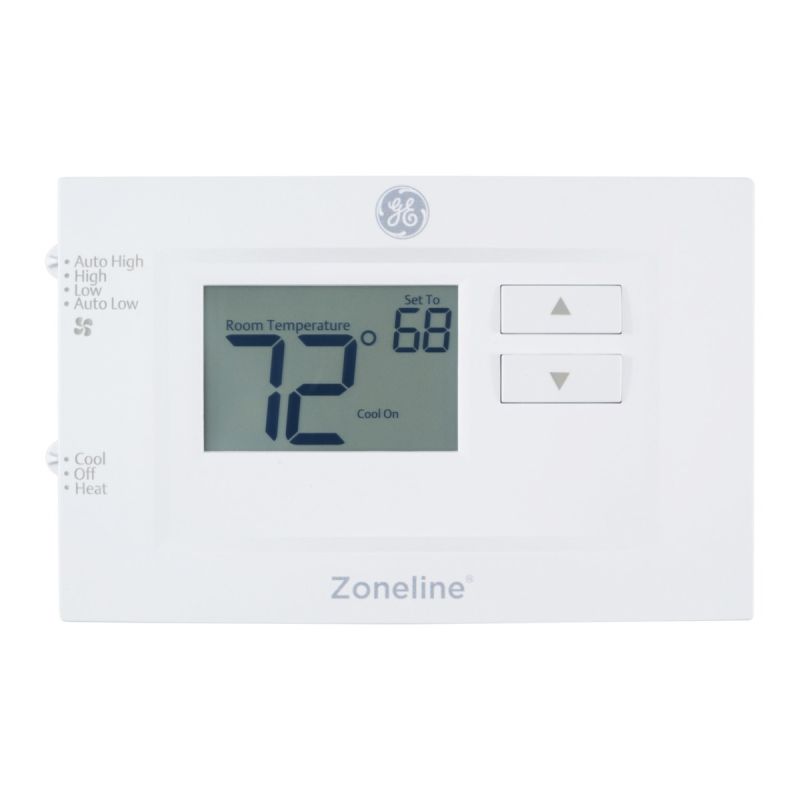

The GE RAK149F2A is a digital wall thermostat designed for GE PTAC and VTAC units, providing simple temperature control with high/low fan speed selection. It features a backlit LCD display, supports 2-speed fan operation, and is compatible with single-stage cooling with electric resistance heat or dual-stage heat pump systems, making it a straightforward, reliable control solution for light commercial and hospitality applications.

Electrical Rating

• 24 VAC (20-30 VAC)
• 1 amp maximum per terminal
• 4 amp maximum total load

Operating Temperature Range:

• 40°F-99°F (4°C-37°C)

Temperature Set Range:

• 60⪚F-85°F (15°C-29°C)
• Accuracy: ± 1°F (± 0.5°C)

System Configurations:

• Factory Setting: 2-Stage heat (heat pump/heat resistance), 1-stage cool, 2-speed fan
• Alternate Setting: 1-stage heat (resistance heat), 1-stage cool, 2-speed fan

Terminations:

• R, C, W, Y, GH, GL, B

Wiring:

• Maximum Wiring Length is 66ft (20 meters) for AWG18
• Maximum Wiring Length is 60ft (18 meters) for AWG20
