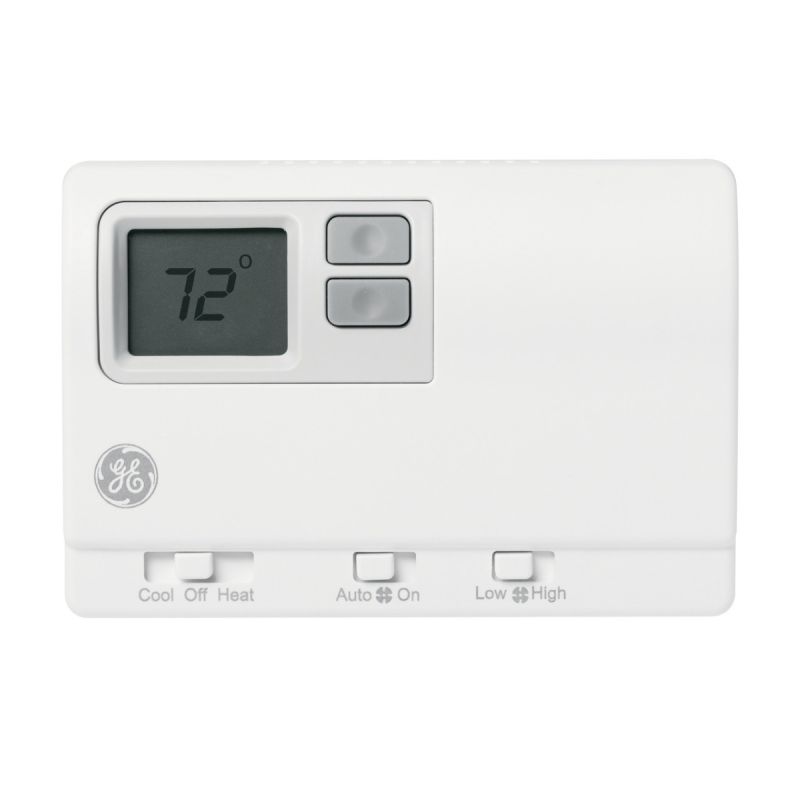

GE Zoneline Wall Thermostat - Programmable

The GE Zoneline 24V AC programmable digital remote wall thermostat works with PTAC and VTAC units. It can be used with Single Stage Cooling/Single Stage Heat (Resistance Heat) and 2-Stage Heating/1-Stage Cooling systems. 2-Stage heat includes heat pump and resistance heat. It requires a 6-wire hook-up.
It is programmable for 7 day and 5+2 day programs. The 7 day allows for a customizable schedule for each day of the week, while the 5+2 lets you program weekdays separately from weekends. The remote wall thermostat has an easy to read display and easy to use slide switches for Mode (Cool/Off/Heat) and Fan (Auto/On). Soft touch buttons to increase or decrease the temperature setting as well as Mode/Hold operations.

Electrical Rating:

• 24 VAC (18-30 VAC)
• 1 amp maximum per terminal
• 4 amp maximum total load

Operating Temperature Range:

• 40°F-99°F (4°C-37°C)

Temperature Set Range:

• 60⪚F-85°F (15°C-29°C)
• Accuracy: ± 1°F (± 0.5°C)

System Configurations:

• Factory Setting: 2-Stage heat (heat pump/heat resistance), 1-stage cool, 1-speed fan
• Alternate Setting: 1-stage heat (resistance heat), 1-stage cool, 1-speed fan

Terminations:

• R, C, W, Y, G, B

Wiring:

• Maximum Wiring Length is 66ft (20 meters) for AWG18
• Maximum Wiring Length is 60ft (18 meters) for AWG20
